ABB 7BJL3507A Pump Motor - CSA UR Certification, TEFC
Part Number: 7BJL3507A
Quick Summary
ABB 7BJL3507A Pump Motor is a compact, single-phase motor designed for 56J frame pump applications operating at 115/230 V and 60 Hz. Engineers often contend with mismatched voltage, long supplier lead times, and inconsistent stock, which can trigger downtime and added costs. This model delivers CSA | UR listings and RoHS compliance, along with a TEFC enclosure and a NEMA design profile, to meet industry standards and improve safety in harsh environments. Its dual-voltage capability and regreasable bearings support easy installation, lower wiring costs, and extended service life, making it a practical choice for water pumps, jet pumps, and light process pumping across industrial facilities.
Product Information
Extended Description

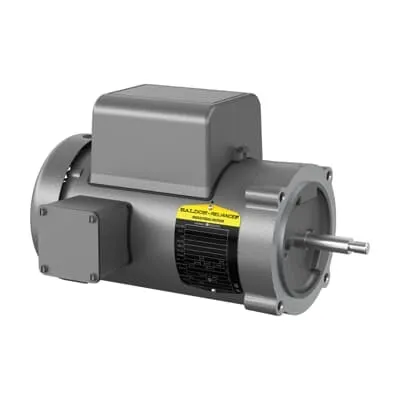

7BJL3507A ABB: Pump Motor 0.75 Hp 115 V (JL3507A)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.75HP,1725RPM,1PH,60HZ,56J,3428LC,T
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6203, Ball
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
JL3507A
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85013100
Design
N
Dimension Diagram
34LYH408: Dimension Sheet
Direction of Rotation
CW Clockwise
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
JL3507A
Gross Volume
2110.969 in³
Gross Weight
33 lb
Horsepower Rating UL/CSA
0.750 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1320 >> Pump motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
B
Invoice Description
.75HP,1725RPM,1PH,60HZ,56J,3428LC,TEFC
Lubrication
Regreasable
Made To Order
No
Medium Description
56J Jet Pump, 0.75 HP, 1800 RPM, Frame Size 56J, C-Face Mounting, 1 Phase, TEFC Enclosure, 115/230 V, 60 Hz (JL3507A)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
56J
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
N
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
0.75 Hp
Power Factor
80 %
Product Name
56J Jet Pump
Product Net Depth / Length
16.5 in
Product Net Height
11.125 in
Product Net Weight
33 lb
Product Net Width
11.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
8.2 A | 4.1 A
Rated Efficiency
74 %
Rated Speed
1725 r/min
RoHS Information
RoHS Compliant
Selling Unit of Measure
piece
Service Factor
1.25
Service Factor Percentage
1.25 %
Shaft Diameter
0.63 in
Short Description
0.75 HP, 1800 RPM, Frame Size 56J, C-Face, 1 PH, TEFC, 115/230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101107
Voltage Code
L
Voltage Rating
115 V | 230 V
Feature: TEFC enclosure and 56J frame with C-Face drive end mounting. Business Impact: Provides rugged protection in demanding environments and simplifies alignment during installation. Application: Ideal for horizontal pump-mounted setups in water, irrigation, and light process systems. Feature: Dual voltage 115/230 V and 60 Hz operation (1725 rpm). Business Impact: Flexible wiring configurations reduce installation complexity and stocking requirements, speeding commissioning. Application: Suitable for versatile onboard water-pumping duties and retrofit projects. Feature: Regreasable bearings (6203, Ball) and RoHS-compliant design. Business Impact: Extends bearing life, lowers maintenance costs, and supports sustainable operations. Application: Long-life operation in continuous duty environments with low downtime. Feature: NEMA design code, 1-phase starting (Direct On Line), and 0.75 HP output. Business Impact: Reliable starting performance with straightforward control schemes reduces inverter or soft-start needs. Application: Common in sump and jet pump installations that demand immediate pull from line. Feature: Shaft diameter 0.63 in and 56J frame compatibility with standard couplings. Business Impact: Simplifies mechanical integration and reduces rework or custom machining. Application: General-purpose coupling to pumps and auxiliary equipment in field installations.
