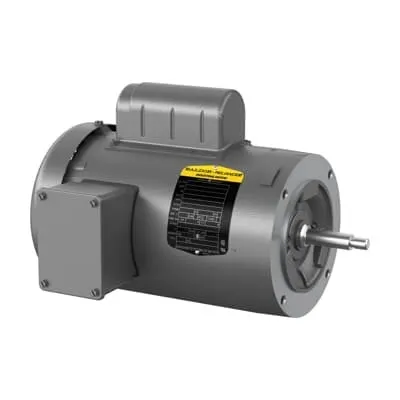

ABB 7BJL3513A Pump Motor - 1.5HP, 60Hz CSA/UR
Part Number: 7BJL3513A
Quick Summary
Pump Motor 1.5 Hp drives jet pumps in residential and light commercial pumping applications. Engineers often face compatibility gaps, long lead times, and limited replacement options when upgrading or stocking spares. This ABB motor meets CSA/UR certification and RoHS compliance, with a TEFC enclosure and a 1PH, 60 Hz power rating, ensuring reliable operation in challenging environments. With a dual-voltage 115/230 V capability, simple mounting, and standard frame size 56J, it delivers lower total cost of ownership through easy installation and broad availability in global warehouses.
Product Information
Extended Description
7BJL3513A ABB: Pump Motor 1.5 Hp 115 V (JL3513A)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1.5HP,3450RPM,1PH,60HZ,56J,3528L,TE
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6205, Ball
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
JL3513A
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
L
Dimension Diagram
35LYF083: Dimension Sheet
Direction of Rotation
CW Clockwise
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
JL3513A
Gross Volume
2110.969 in³
Gross Weight
45 lb
Horsepower Rating UL/CSA
1.500 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1320 >> Pump motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
1.5HP,3450RPM,1PH,60HZ,56J,3528L,TEFC,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
56J Jet Pump, 1.5 HP, 3600 RPM, Frame Size 56J, C-Face Mounting, 1 Phase, TEFC Enclosure, 115/230 V, 60 Hz (JL3513A)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
56J
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
L
Number of Phases
1
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
1.5 Hp
Power Factor
82 %
Product Name
56J Jet Pump
Product Net Depth / Length
16.5 in
Product Net Height
11.125 in
Product Net Weight
45 lb
Product Net Width
11.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
16.6 A | 8.3 A
Rated Efficiency
70 %
Rated Speed
3450 r/min
RoHS Information
RoHS Compliant
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
0.63 in
Short Description
1.5 HP, 3600 RPM, Frame Size 56J, C-Face, 1 PH, TEFC, 115/230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101107
Voltage Code
H
Voltage Rating
115 V | 230 V
Feature TEFC enclosure and 56J frame with C-face mounting provides robust protection against dust and moisture and simplifies integration with standard jet-pump assemblies, reducing downtime during maintenance. Business Impact The motor’s rugged enclosure translates to longer service life in outdoor and wet environments, lowering replacement frequency and maintenance costs. Application The design is ideal for sump and drainage pumps where reliability and protection are paramount. Feature Dual-voltage 115/230 V with 1-phase, 60 Hz operation reduces stocking needs and accelerates field service, enabling rapid deployment across multiple sites. Business Impact This flexibility lowers inventory carrying costs and simplifies wiring during installation. Application Suitable for residential and light commercial pumping tasks that require straightforward direct-on-line start and minimal control hardware. Feature 56J frame, horizontal mounting, and footless base enable quick retrofits and compatibility with existing pump housings, removing integration guesswork. Business Impact The standardized frame and mounting options shorten installation time and improve maintenance planning. Application Ideal for retrofit projects and new builds in water transfer systems. Feature Regreasable bearings (6205 Ball) and durable steel frame support long life and predictable maintenance cycles, reducing unexpected failures. Business Impact This lowers maintenance costs and extends service intervals, improving total cost of ownership. Application Critical for continuous pumping operations where uptime matters. Feature CSA/UR certification and RoHS compliance provide regulatory assurance and sustainable sourcing, while NEMA design L compatibility aligns with common industrial standards. Business Impact These certifications simplify procurement audits and ensure supply chain resilience. Application Suitable for regulated installations and environments with strict certifications requirements.
