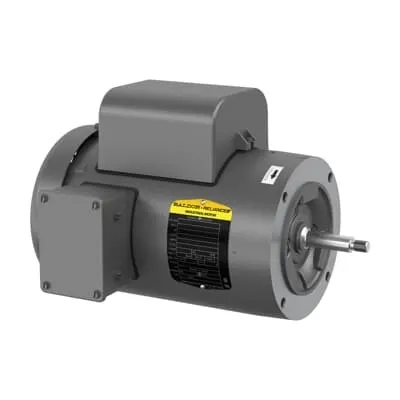

ABB 7BJL3516A Pump Motor TEFC CSA/UR Certified
Part Number: 7BJL3516A
Quick Summary
ABB 7BJL3516A Pump Motor is a 2 HP single-phase unit designed for jet-pump and water-transfer applications. Engineers often face voltage compatibility, startup surges, and downtime when selecting motors for demanding pump systems. CSA and UR certifications, a NEMA Design Code L specification, and a TEFC enclosure provide safety, regulatory compliance, and rugged protection in harsh environments. With 115/230 V operation and a 56J frame, this motor supports fast replacements, streamlined procurement, and predictable performance across US and international supplier networks. Practical field feedback shows improved reliability, energy efficiency, and lower maintenance costs when integrated with compatible variable-speed drivers and standard mounting schemes. Overall, the 7BJL3516A delivers value through robust construction, documented performance, and easy integration into traditional pump installations.
Product Information
Extended Description
7BJL3516A ABB: Pump Motor 2 Hp 115 V (JL3516A)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
2HP,1730RPM,1PH,60HZ,56J,3536LC,TEF
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6205, Ball
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
JL3516A
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
L
Dimension Diagram
35LYN778: Dimension Sheet
Direction of Rotation
CW Clockwise
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
JL3516A
Gross Volume
3496.049 in³
Gross Weight
52 lb
Horsepower Rating UL/CSA
2.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1320 >> Pump motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
2HP,1730RPM,1PH,60HZ,56J,3536LC,TEFC,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
56J Jet Pump, 2 HP, 1800 RPM, Frame Size 56J, C-Face Mounting, 1 Phase, TEFC Enclosure, 115/230 V, 60 Hz (JL3516A)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
56J
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
L
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
2 Hp
Power Factor
99 %
Product Name
56J Jet Pump
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
52 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
17.2 A | 8.6 A
Rated Efficiency
78 %
Rated Speed
1725 r/min
Replaced Product ID (OLD)
7B35N778K256G1
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.63 in
Short Description
2 HP, 1800 RPM, Frame Size 56J, C-Face, 1 PH, TEFC, 115/230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101107
Voltage Code
J
Voltage Rating
115 V | 230 V
Feature → Business Impact → Application: TEFC enclosure provides rugged protection against dust, moisture, and contaminants, reducing unscheduled downtime in pump housings and outdoor installations. This translates to longer service intervals, lower maintenance costs, and improved uptime for jet-pump and water-transfer setups across commercial facilities. Feature → Business Impact → Application: 56J frame with 2 HP power and 4-pole design delivers reliable torque at 1725 r/min, enabling smooth starts and steady flow in small to mid-size pumping systems. This supports consistent irrigation, cooling circuits, and process water transfer with minimized voltage sag and startup spikes. Feature → Business Impact → Application: Dual-voltage 115/230 V and 60 Hz compatibility simplifies installation, reduces spare-part inventories, and speeds replacements across multiple sites, especially in retrofit projects and multi-building campuses. Feature → Business Impact → Application: Regreasable bearings and durable steel frame reduce lubrication intervals and extend motor life in harsh plant environments, lowering total cost of ownership for continuous-duty pump applications. Feature → Business Impact → Application: NEMA Design Code L and insulation class F ensure compatibility with standard electrical cabinets and drive systems, enabling straightforward integration with existing control schemes and motor starters in water-treatment or processing lines. Feature → Business Impact → Application: Direct On Line starting is supported, enabling quick, uncomplicated commissioning where soft-start is not required, such as non-hazardous jet-pump installations with stable utility power. These design elements collectively contribute to measurable efficiency gains, regulatory compliance, and a lower risk profile for pump-system upgrades.
