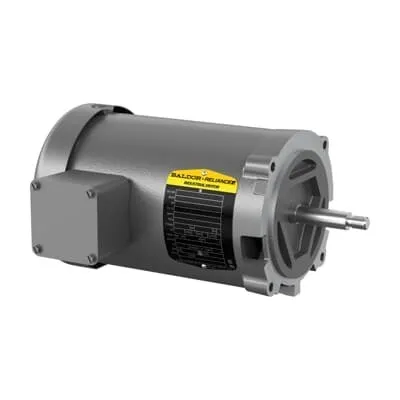

ABB 7BJM3155 Pump Motor - 2 HP, 230V OPEN Enclosure
Part Number: 7BJM3155
Quick Summary
Pump motor 2 HP is built for reliable pumping in water transfer and process systems. The design addresses downtime, voltage mismatches, and enclosure exposure by offering 230/460 V three-phase compatibility and a rugged OPEN enclosure. It meets CSA/UR safety certifications, a NEMA design B frame, and RoHS compliance, underscoring regulatory readiness and durability. This 56J frame motor delivers installation efficiency and long service life, supporting cost reductions across pumping, irrigation, and industrial water-treatment applications. Designed for open installation with direct-on-line starting and regreasable bearings, it minimizes maintenance and maximizes uptime.
Product Information
Extended Description
7BJM3155 ABB: Pump Motor 2 Hp 230 V (JM3155)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
2HP,3450RPM,3PH,60HZ,56J,3430M,OPEN
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6203, Ball
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
JM3155
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
34LYF038: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE1 | Not Regulated / Exempt
Electrical Data
Enclosure Type
OPEN
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
JM3155
Gross Volume
2110.969 in³
Gross Weight
35 lb
Horsepower Rating UL/CSA
2.000 Hp
IC Class
OPEN
IDEA Granular Category Code (IGCC)
1320 >> Pump motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
B
Invoice Description
2HP,3450RPM,3PH,60HZ,56J,3430M,OPEN,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
56J Jet Pump, 2 HP, 3600 RPM, Frame Size 56J, C-Face Mounting, 3 Phase, OPEN Enclosure, 230/460 V, 60 Hz (JM3155)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
56J
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
2 Hp
Power Factor
86 %
Product Name
56J Jet Pump
Product Net Depth / Length
16.5 in
Product Net Height
11.125 in
Product Net Weight
35 lb
Product Net Width
11.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
5.4 A | 2.7 A
Rated Efficiency
82.50 %
Rated Speed
3450 r/min
RoHS Information
RoHS Compliant
Selling Unit of Measure
piece
Service Factor
1.20
Service Factor Percentage
1.20 %
Shaft Diameter
0.63 in
Short Description
2 HP, 3600 RPM, Frame Size 56J, C-Face, 3 PH, OPEN, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101107
Voltage Code
L
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: 2 HP, 60 Hz three-phase motor delivers strong pumping capacity with compact 56J frame, enabling reliable performance in small to mid-size water transfer lines and process loops. Benefit: reduced downtime and consistent flow, driving improved plant throughput in wastewater treatment and industrial cooling systems. Application: suitable for jet pump and general pumping duties in HVAC and irrigation networks, where space is limited but demand is steady. Feature → Business Impact → Application: OPEN enclosure combined with 230/460 V capability provides versatile deployment across varying electrical infrastructure. Benefit: simplified installation and easier cooling, lowering total installation costs and enabling quick retrofits in retrofits and new builds. Application: ideal for open-system installations in harsh environments where ventilation matters. Feature → Business Impact → Application: Regreasable bearings and 6203 ball bearings reduce friction wear, extending service intervals. Benefit: lower maintenance costs and longer motor life, improving total cost of ownership. Application: long-term reliability in continuous-duty pumping applications. Feature → Business Impact → Application: Direct-on-line starting and C-Face, 56J frame enable straightforward mounting and fast commissioning. Benefit: faster project timelines, fewer integration issues, and compatibility with common starters and variable frequency drives. Application: industrial pump systems, water transfer lines, and jet-pump configurations in process industries. Feature → Business Impact → Application: RoHS compliance, CSA/UR safety listings, and NEMA design B align with global procurement standards. Benefit: regulatory risk reduction, smoother audits, and assurance of product longevity. Application: cross-border installations, maintenance contracts, and supplier qualification programs.
