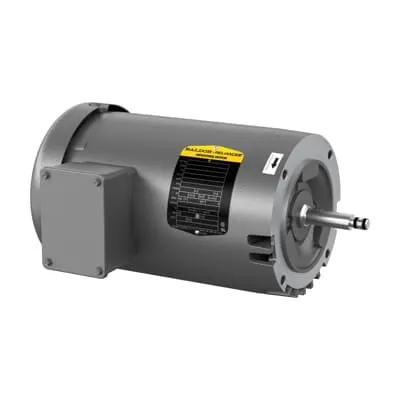

ABB 7BJM3158 Pump Motor - 3 HP, 208 V CSA UR
Part Number: 7BJM3158
Quick Summary
ABB 7BJM3158 is a reliable 3 HP pump motor designed for 208 V three-phase systems, ideal for commercial and industrial water handling. This compact, high-efficiency unit delivers steady performance in demanding pumping applications while minimizing downtime. Operators often struggle with misfit enclosures, improper mounting, or inadequate lubrication; this motor addresses those concerns with a C-Face drive end and a robust 56J frame. Certified to CSA | UR standards and designed to NEMA B specifications, it offers predictable performance, fault tolerance, and easy maintenance. For system integrators and maintenance teams, the 7BJM3158 provides a clear path to improved uptime, lower lifecycle costs, and streamlined installation in new or retrofit projects.
Product Information
Extended Description
7BJM3158 ABB: Pump Motor 3 Hp 208 V (JM3158)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
3HP,3450RPM,3PH,60HZ,56J,3524M,ODTF
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6205, Ball
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
JM3158
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
35LYE065: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt | Undefined Efficiency
Electrical Data
Enclosure Type
ODTF
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
JM3158
Gross Volume
2110.969 in³
Gross Weight
42 lb
Horsepower Rating UL/CSA
3.000 Hp
IC Class
ODTF
IDEA Granular Category Code (IGCC)
1320 >> Pump motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
B
Invoice Description
3HP,3450RPM,3PH,60HZ,56J,3524M,ODTF,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
56J Jet Pump, 3 HP, 3600 RPM, Frame Size 56J, C-Face Mounting, 3 Phase, ODTF Enclosure, 208-230/460 V, 60 Hz (JM3158)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
56J
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
3 Hp
Power Factor
87 %
Product Name
56J Jet Pump
Product Net Depth / Length
16.5 in
Product Net Height
11.125 in
Product Net Weight
42 lb
Product Net Width
11.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
8.5 A | 8 A | 4 A
Rated Efficiency
80 %
Rated Speed
3450 r/min
Replaced Product ID (OLD)
7B35E065R286
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.63 in
Short Description
3 HP, 3600 RPM, Frame Size 56J, C-Face, 3 PH, ODTF, 208-230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101107
Voltage Code
K
Voltage Rating
208 V | 230 V | 460 V
Feature → Business Impact → Application: The 56J frame and C-Face mounting enable straightforward installation in existing pump assemblies, reducing retrofit time and labor costs for retrofit projects and new builds. In practice, technicians experience faster alignment and secure mounting for horizontal orientation, minimizing vibration and energy losses in demanding pump stations. Feature → Business Impact → Application: Direct On Line (DOL) starting at 208/230/460 V with a 3-phase supply delivers immediate torque for water pump startups, reducing inrush management challenges and ensuring reliable wet-well charging in municipal and industrial facilities. Feature → Business Impact → Application: ODTF enclosure and steel frame provide rugged protection in harsh environments, supporting prolonged service life in outdoor or plant-floor installations with minimal maintenance. Feature → Business Impact → Application: Regreasable bearings (62xx family with 6205 bearing) extend bearing life and simplify lubrication schedules, lowering maintenance interruptions and replacement costs in high-cycle pumping. Feature → Business Impact → Application: 3 HP, 3450 r/min rated speed and 60 Hz operation offer a balance of efficiency and performance, enabling consistent flow rates in irrigation or filtration systems while keeping energy use predictable. Feature → Business Impact → Application: 3-phase, 2-pole design with 56J frame and 0.63 in shaft diameter delivers robust torque for centrifugal pumps, reducing motor stress and promoting longer motor life in commercial water transfer. Feature → Business Impact → Application: Regulated by CSA | UR and aligned with NEMA design B standards, the motor fits into regulated procurement environments, simplifies compliance audits, and supports safer, standardized maintenance protocols in critical pumping applications. Feature → Business Impact → Application: Footless base and horizontal mounting orientation streamline installation in compact spaces, enabling retrofit in established pump rooms without excessive enclosure alterations. Feature → Business Impact → Application: 80% rated efficiency and 1.15 service factor translate to measurable energy savings and resilience under peak load, supporting total cost of ownership reductions in continuous-duty pumping scenarios.
Get a Quick Quote for a ABB 7BJM3158
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BJM3158?
Enquire Now
FAQs
Yes. The 7BJM3158 uses a 56J frame with a C-face drive end, designed for horizontal mounting and footless bases. This compatibility simplifies retrofits and new installs in standard pump housings, reducing the need for custom adapters and minimizing alignment issues during assembly.
The motor supports 208 V, 230 V, and 460 V across 3-phase power at 60 Hz. It is rated for a speed of 3450 r/min with a synchronous speed of 3600 r/min, providing reliable torque for pump operations with a balanced duty cycle in continuous service.
Yes. With an ODTF enclosure, a steel frame, and NEMA B design, the motor is well-suited for pump applications in outdoor or damp environments. Its rugged build and regreasable bearings support long service life and predictable performance in municipal or industrial water systems.
This model carries CSA | UR certification for electrical safety and has a NEMA-design B specification for its motor design, ensuring compliance with common industry procurement and quality standards in the US and Canada.
Regreasable bearings and a rugged 56J frame with a durable steel enclosure reduce maintenance intervals and bearing replacements. Combined with a service factor of 1.15 and 80% rated efficiency, this motor delivers lower total cost of ownership and a faster payback in continuous-duty pumping applications.
