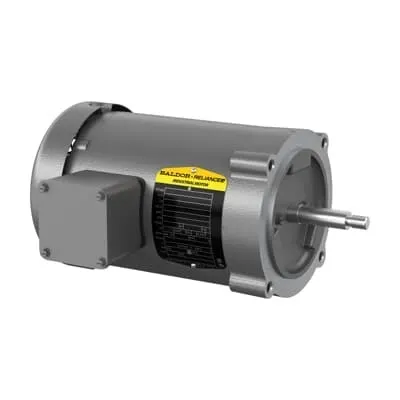

ABB 7BJM3542 Pump Motor - TEFC, 3PH, 60Hz CSA/UR
Part Number: 7BJM3542
Quick Summary
ABB 7BJM3542 Pump Motor powers reliable pump applications in water transfer and irrigation. In the real world, heat buildup, motor wear, and downtime challenge maintenance budgets and plant productivity. This model carries CSA/UR listings and RoHS compliance, plus a TEFC enclosure that withstands dusty or damp environments. It is rated 0.75 HP at 1725 RPM with dual voltage 230/460 V, offering installation flexibility, easy service, and common spare parts across regions. The unit’s 1.25 service factor and B insulation class support continuous-duty operation with margin, delivering predictable performance for US and global facilities.
Product Information
Extended Description
7BJM3542 ABB: Pump Motor 0.75 Hp 230 V (JM3542)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.75HP,1725RPM,3PH,60HZ,56J,3420M,TE
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6203, Ball
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
JM3542
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015100
Design
B
Dimension Diagram
34LYK036: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
JM3542
Gross Volume
1400.25 in³
Gross Weight
26 lb
Horsepower Rating UL/CSA
0.750 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1320 >> Pump motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
B
Invoice Description
.75HP,1725RPM,3PH,60HZ,56J,3420M,TEFC,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
56J Jet Pump, 0.75 HP, 1800 RPM, Frame Size 56J, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (JM3542)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
56J
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
0.75 Hp
Power Factor
64 %
Product Name
56J Jet Pump
Product Net Depth / Length
13.813 in
Product Net Height
9.375 in
Product Net Weight
26 lb
Product Net Width
10.813 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
3 A | 1.5 A
Rated Efficiency
75.50 %
Rated Speed
1725 r/min
RoHS Information
RoHS Compliant
Selling Unit of Measure
piece
Service Factor
1.25
Service Factor Percentage
1.25 %
Shaft Diameter
0.63 in
Short Description
0.75 HP, 1800 RPM, Frame Size 56J, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101107
Voltage Code
K
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: TEFC enclosure provides robust protection against dust and moisture, reducing maintenance downtime in outdoor or wet pump installations. This translates to higher uptime for irrigation and water transfer systems and lowers replacement costs in harsh environments. Feature → 0.75 HP, 1725 RPM, 60 Hz performance offers suitable torque and speed for jet pump tasks, improving flow consistency and system efficiency in municipal or industrial pumping. Feature → Dual voltage 230/460 V enhances installation flexibility and reduces spare parts inventory, enabling quick deployment across multiple plants with different electrical infrastructures. Feature → 3-phase design with 4-pole configuration delivers reliable starting current and steady operation under continuous duty, supporting long-term energy efficiency and reduced motor wear. Feature → Regreasable bearings and 6203 ball bearing support improve service intervals and reduce maintenance labor, contributing to lower life-cycle costs. Feature → RoHS compliance and CSA/UR certification provide regulatory alignment and safer procurement for long-term asset management. Application-wide benefit: the motor suits 56J frame size, C-face mounting, and horizontal/F1 orientation for straightforward retrofits and standard installation in water pumps, jet pumps, and clean-water transfer systems.
Get a Quick Quote for a ABB 7BJM3542
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BJM3542?
Enquire Now
FAQs
Yes. The 7BJM3542 is rated for 230/460 V 3-phase operation. It uses a 56J frame with C-face drive end and horizontal mounting (F1), enabling straightforward installation and compatibility with common pump assemblies and existing baseplates.
Key specs include 0.75 HP, 1725 r/min (56J frame), 60 Hz, service factor 1.25, insulation class B, and a rated efficiency of 75.50%. These figures support reliable continuous-duty pumping with balanced torque and energy use in standard water-pumping applications.
The motor is ideal for 56J jet pump applications, water transfer, irrigation systems, and other centrifugal pumping tasks requiring a robust, TEFC-enclosed, 3-phase motor with a 56J frame and C-face mounting. It pairs well with common seal and impeller configurations used in municipal and industrial pump stations.
The 7BJM3542 carries CSA and UL Recognized (UR) listings, and it is RoHS compliant. It adheres to NEMA design practices with TEFC enclosure and standard insulation, aligning with typical safety and environmental requirements for US and international facilities.
Regreasable bearings extend service intervals, reducing maintenance labor, while the rugged TEFC enclosure minimizes exposure risks in harsh environments. The motor’s efficiency and reliable start capability translate to lower energy costs and improved uptime, delivering faster ROI for pumping projects.
