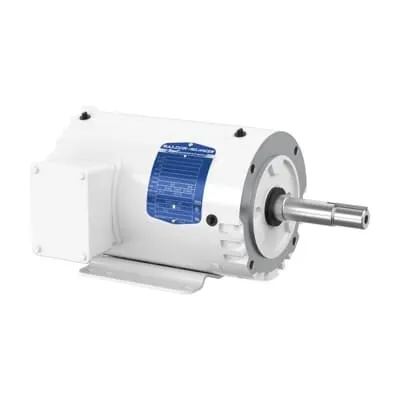

ABB 7BJMEWDM3546T Washdown Motor - 1HP, 230V 60Hz
Part Number: 7BJMEWDM3546T
Quick Summary
The ABB 7BJMEWDM3546T washdown motor is designed for reliable 1 HP duty in demanding washdown environments such as food processing, beverage, and water treatment. This model addresses common pain points like corrosion resistance, uptime, and energy efficiency, offering durable operation at 60 Hz with dual voltage (230/460 V). It carries a TENV enclosure, Premium Efficiency rating, and certifications from CSA, CSA EEV, and UR to support compliance and longevity. With a 143JM frame, foot-mounted base, and C-face drive end, installation aligns with standard Baldor/ABB systems, enabling faster commissioning, simpler maintenance, and reduced lifecycle costs across industrial lines.
Product Information
Extended Description
7BJMEWDM3546T ABB: Washdown Motor 1 Hp 230 V (JMEWDM3546T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1HP,1770RPM,3PH,60HZ,143JM,3522M,TE
Ambient Temperature
40 °C
Bearing
6206, Sealed Bearing
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
JMEWDM3546T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015100
Dimension Diagram
35LYZ956: Dimension Sheet
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TENV
Frame Material
Steel
Frame Size
143
Frequency (f)
60 Hz
Global Commercial Alias
JMEWDM3546T
Gross Volume
3496.049 in³
Gross Weight
39 lb
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
F
Invoice Description
1HP,1770RPM,3PH,60HZ,143JM,3522M,TENV,F1
Made To Order
No
Medium Description
White Washdown, 1 HP, 1800 RPM, Frame Size 143Jm, C-Face Mounting, 3 Phase, TENV Enclosure, 230/460 V, 60 Hz (JMEWDM3546T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
143JM
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
1 Hp
Power Factor
66 %
Product Name
White Washdown
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
39 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
3.34 A | 1.67 A
Rated Efficiency
85.50 %
Rated Speed
1770 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
0.88 in
Short Description
1 HP, 1800 RPM, Frame Size 143Jm, C-Face, 3 PH, TENV, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
230 V | 460 V
Feature: TENV enclosure designed for washdown environments → Business Impact: robust moisture and chemical resistance extends motor life in 40 °C ambient → Application: ideal for food processing lines, beverage packaging, and sanitation-critical conveyors. Feature: Premium Efficiency (85.5%) and PF ~66% → Business Impact: lower operating costs and reduced heat generation, which translates to longer bearing life and less cooling demand → Application: continuous-duty conveyors, packaging lines, and process equipment where energy efficiency matters. Feature: 3-Phase, 4-Pole, 1770 r/min with Direct On Line starting → Business Impact: straightforward integration with standard VFDs or direct start drives, reliable startup torque, and stable process control → Application: rotating equipment on packaging lines, pumps, and fans. Feature: Frame 143JM, Foot Mounted, C-Face Drive End → Business Impact: simplified retrofits and quick installation with existing baseplates and mounts → Application: replacement motors in legacy Baldor ABB systems and new installations in controlled environments. Feature: Sealed bearings (6206) and 0.88 in shaft diameter → Business Impact: enhanced durability in washdown and high-load conditions, reducing maintenance cycles → Application: conveyors, mixers, and hygienic process lines. Feature: Stocked at multiple warehouses with 0-day lead time → Business Impact: faster replenishment, reduced downtime, and improved spare-part planning → Application: maintenance operations and OEM projects with tight schedules.
