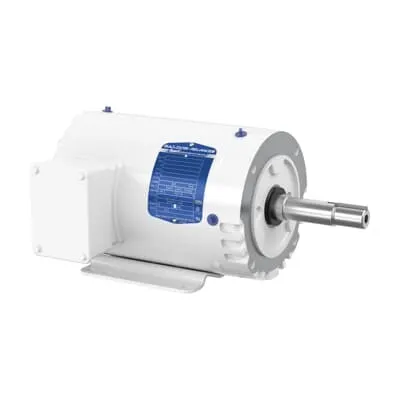

ABB 7BJMEWDM3550T Washdown Motor - IE3 Premium Efficiency
Part Number: 7BJMEWDM3550T
Quick Summary
ABB 7BJMEWDM3550T is a washdown motor delivering 1.5 HP for hygienic, high-durability conveying lines. In washdown-heavy environments, motor reliability and corrosion resistance are critical; this model is designed to stand up to frequent cleaning cycles while maintaining performance. It carries IE3 premium efficiency and CSA/UR certification, with a NEMA design B baseline and a TENV enclosure, offering predictable, long-term energy savings. The 3-phase, 60 Hz operation paired with C-face mounting simplifies integration into existing benches and conveyors, while the compact 143JM frame fits compact layouts. For automation lines and packaging equipment, this motor delivers consistent torque and reduced downtime, supporting your facility's total cost of ownership goals.
Product Information
Extended Description
7BJMEWDM3550T ABB: Washdown Motor 1.5 Hp 208 V (JMEWDM3550T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1.5HP,3500RPM,3PH,60HZ,143JM,3528M,
Ambient Temperature
40 °C
Bearing
6206, Sealed Bearing
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
JMEWDM3550T
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
35LYE2990: Dimension Sheet
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TENV
Frame Material
Steel
Frame Size
143
Frequency (f)
60 Hz
Global Commercial Alias
JMEWDM3550T
Gross Volume
3496.049 in³
Gross Weight
48 lb
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
F
Invoice Description
1.5HP,3500RPM,3PH,60HZ,143JM,3528M,TENV
Made To Order
No
Medium Description
White Washdown, 1.5 HP, 3600 RPM, Frame Size 143Jm, C-Face Mounting, 3 Phase, TENV Enclosure, 208-230/460 V, 60 Hz (JMEWDM3550T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
143JM
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
1.5 Hp
Power Factor
87 %
Product Name
White Washdown
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
48 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
4 A | 2 A
Rated Efficiency
85.50 %
Rated Speed
3500 r/min
Replaced Product ID (OLD)
7B35E2990R445G1
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
0.88 in
Short Description
1.5 HP, 3600 RPM, Frame Size 143Jm, C-Face, 3 PH, TENV, 208-230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
208 V | 230 V | 460 V
Feature → Business Impact → Application: Washdown-rated enclosure (TENV) with 208-230/460 V 3-phase input resists washdown chemicals and frequent cleaning, extending service life on food processing lines. This reduces downtime and maintenance costs, enabling reliable operation in hygienic environments where quick, repeated sanitation cycles are required. Application: food & beverage conveyors, beverage packaging lines. Feature → Business Impact → Application: IE3 premium efficiency delivers lower operating costs and reduced energy consumption, improving total cost of ownership for continuous process lines. This aligns with sustainability programs while maintaining consistent torque and speed. Application: continuous processing, pharma packaging, general automation markets. Feature → Business Impact → Application: C-face mounting with a 143JM frame and footprint for straightforward installation and compatibility with existing conveyors and gear reducers. This minimizes retrofit time and wiring changes, delivering faster deployment in line upgrades. Application: retrofits and new line builds in manufacturing. Feature → Business Impact → Application: Sealed bearings (6206) and insulation class F enhance reliability in humid, washdown-prone environments, reducing unexpected maintenance and extending service life. Application: hygienic process equipment, washdown motors for cleanroom-adjacent facilities. Feature → Business Impact → Application: Direct On Line starting and 2-pole design with 3600 rpm synchronous speed offers simple, robust control with minimal soft-start requirements. This reduces drive integration complexity and energy spikes, supporting reliable start-up in packaging and material handling lines. Application: packaging machines, conveyors, and automated assemblies. Additional Context: The motor’s design supports stringent certifications (NEMA B, IE3, CSA/UR) and a 40 °C ambient limit, making it suitable for North American facilities seeking compliant, durable washdown solutions with predictable maintenance cycles.
