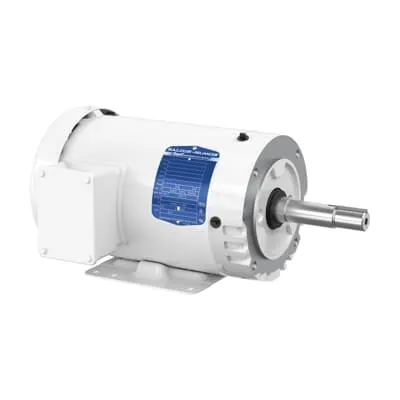

ABB 7BJMEWDM3558T Washdown Motor - TEFC 60 Hz
Part Number: 7BJMEWDM3558T
Quick Summary
Washdown motor ABB 7BJMEWDM3558T delivers reliable 2 HP performance for hygienic, food-processing, and packaging applications. Facility teams often wrestle with wash-down corrosion, frequent cleaning cycles, and unplanned downtime. This motor uses a TEFC enclosure, sealed bearings, and a 40 °C ambient rating to withstand harsh environments. Certified for CSA, CSA EEV, and UR, it also carries NEMA design code B and premium efficiency for regulatory and energy compliance. With 230/460 V, 60 Hz operation and 1760 r/min, it supports dependable conveyors and pumps while helping accelerate procurement through stocked warehouses. Engineered for easy installation and long service life, it reduces total cost of ownership.
Product Information
Extended Description
7BJMEWDM3558T ABB: Washdown Motor 2 Hp 230 V (JMEWDM3558T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
2HP,1760RPM,3PH,60HZ,145JM,3528M,TE
Ambient Temperature
40 °C
Bearing
6206, Sealed Bearing
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
JMEWDM3558T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
35LYSS629: Dimension Sheet
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
145
Frequency (f)
60 Hz
Global Commercial Alias
JMEWDM3558T
Gross Volume
3496.049 in³
Gross Weight
48 lb
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
F
Invoice Description
2HP,1760RPM,3PH,60HZ,145JM,3528M,TEFC,F1
Made To Order
No
Medium Description
White Washdown, 2 HP, 1800 RPM, Frame Size 145Jm, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (JMEWDM3558T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
145JM
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
2 Hp
Power Factor
77 %
Product Name
White Washdown
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
48 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
5.6 A | 2.8 A
Rated Efficiency
86.50 %
Rated Speed
1760 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
0.88 in
Short Description
2 HP, 1800 RPM, Frame Size 145Jm, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: TEFC enclosure provides washdown resilience, reducing corrosion risk and maintenance time, enabling uptime in sanitary environments such as food processing and pharma CIP lines. This supports predictable production schedules and lower operating costs. Application: food & beverage conveyors, washdown pumps, pharmaceutical processing lines. Feature → High-efficiency 86.5% and Premium Efficiency designation reduces energy consumption, lowering utility costs over the motor’s life. Application: continuous duty applications on mixing tanks and conveyors where energy intensity is high. Feature → 2 HP, 1760 rpm, 60 Hz, 230/460 V three-phase drive delivers robust torque with reliable start-up. Application: packaging lines, bottling, and bottling conveyors requiring steady throughput. Feature → Frame size 145JM with C-Face and foot mounting simplifies installation and alignment, reducing commissioning time. Application: retrofit projects and new lines where quick field mounting matters. Feature → Sealed bearings (6206) and shaft diameter 0.88 in offer longer bearing life and easier maintenance, improving total cost of ownership. Application: high-cycle washdown environments with frequent shaft loading. Feature → NEMA Design Code B, Insulation Class F, and 40 °C ambient rating align with industry standards and thermal budgets, supporting reliable operation in demanding plants. Application: multi-shift operations in food, beverage, and consumer-packaged goods sectors.
Get a Quick Quote for a ABB 7BJMEWDM3558T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BJMEWDM3558T?
Enquire Now
FAQs
Yes. The motor is rated for both 230 V and 460 V in a three-phase configuration at 60 Hz, enabling flexible integration with common plant electrical systems. It supports direct-on-line starting and aligns with standard footprint and mounting options (foot-mounted, horizontal orientation, and C-face flange). This simplifies upgrades and retrofit projects while reducing cross-compatibility concerns.
Key specs include 2 HP output with a rated speed of 1760 r/min (synchronous 1800 r/min), and a rated efficiency of 86.5% with a service factor of 1.15. The motor operates at 60 Hz and is designed for continuous duty with a TEFC enclosure, making it suitable for long-running conveyors, mixers, and pumps in demanding environments.
Absolutely. The TEFC enclosure, 40 °C ambient rating, and sealed bearings provide resistance to washdown chemicals and moisture. With 145JM frame size, C-face mounting, and foot-mounted configuration, it delivers reliable torque and straightforward installation on sanitary conveyors and packaging lines.
The unit lists CSA, CSA EEV, and UR certifications, along with a NEMA Design Code B and Premium Efficiency designation. These credentials support regulatory compliance for safety, energy performance, and reliability in industrial facilities across food, pharma, and consumer goods sectors.
Sealed bearings (6206) and a robust 40 °C rating reduce maintenance frequency and extend service life, while stock is available across multiple warehouses to minimize downtime. The motor’s high efficiency and solid build lower operating costs, offering a favorable total cost of ownership for projects with tight timelines and frequent washdown cycles.
