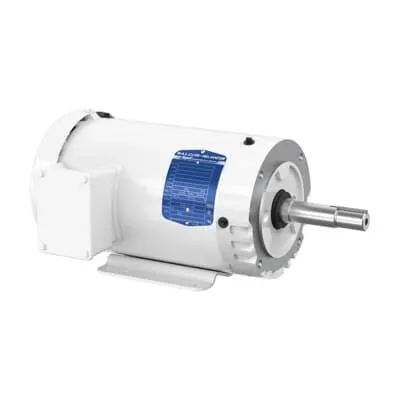

ABB 7BJMEWDM3559T Washdown Motor - IE3 Premium Efficiency
Part Number: 7BJMEWDM3559T
Quick Summary
ABB washdown motor JMEWDM3559T provides 3 HP for reliable performance in washdown applications across food, beverage, and packaging lines. In harsh environments, downtime and maintenance costs erode productivity, so this motor is designed to resist washdowns, corrosion, and contaminants. It carries CSA, CSA EEV, and UR certifications, with IE3 Premium Efficiency to reduce energy use, plus a TEFC enclosure for rugged, easy cleaning. Its 230/460 V, 60 Hz three-phase design simplifies electrical integration, while the 143JM frame and foot-mounted, C-face mounting support straightforward installation. For manufacturers pursuing compliant, efficient, and durable motors, this model delivers strong performance and long-term value.
Product Information
Extended Description
7BJMEWDM3559T ABB: Washdown Motor 3 Hp 230 V (JMEWDM3559T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
3HP,3450RPM,3PH,60HZ,145JM,3532M,TE
Ambient Temperature
40 °C
Bearing
6206, Sealed Bearing
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
JMEWDM3559T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
35LYTT937: Dimension Sheet
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
143
Frequency (f)
60 Hz
Global Commercial Alias
JMEWDM3559T
Gross Volume
5274.135 in³
Gross Weight
50 lb
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
F
Invoice Description
3HP,3450RPM,3PH,60HZ,145JM,3532M,TEFC,F1
Made To Order
No
Medium Description
White Washdown, 3 HP, 3600 RPM, Frame Size 143Jm, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (JMEWDM3559T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
143JM
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
3 Hp
Power Factor
92 %
Product Name
White Washdown
Product Net Depth / Length
21.625 in
Product Net Height
15.125 in
Product Net Weight
50 lb
Product Net Width
16.125 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
7.2 A | 3.6 A
Rated Efficiency
86.50 %
Rated Speed
3450 r/min
Replaced Product ID (OLD)
7B35TT937Q060G1
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
0.88 in
Short Description
3 HP, 3600 RPM, Frame Size 143Jm, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
230 V | 460 V
Feature: TEFC enclosure provides robust sealing against washdown fluids and dust. Business Impact: Reduces ingress-related wear, cuts maintenance downtime, and extends service life. Application: Ideal for hygienic production lines in food & beverage and pharmaceutical processes. It also supports easier cleaning routines without compromising performance. Feature: IE3 Premium Efficiency rating lowers energy consumption and operating costs. Business Impact: Delivers measurable energy savings and improved total cost of ownership. Application: Suitable for high-duty, continuous operation on 60 Hz systems with 230/460 V supply. Feature: 3-phase, 2-pole design at 3450 rpm offers strong start torque and consistent speed. Business Impact: Improves process control and reduces cycle times in conveyor and pump drives. Application: Common in packaging lines and material handling with 143JM frame compatibility. Feature: Foot-mounted with C-face drive end flange simplifies installation and serviceability. Business Impact: Speeds commissioning and minimizes alignment issues during retrofits or new builds. Application: Fits standard industrial bases and compatible mounting configurations. Feature: Insulation Class F and sealed bearings sustain performance in elevated ambient temperatures (up to 40 °C). Business Impact: Enhanced reliability in demanding environments, fewer unscheduled outages. Application: Suitable for environments with moderate heat, long run times, and washdown exposure. Feature: NEMA Design Code B and 3-phase, 230/460 V, 60 Hz operation provide broad compatibility. Business Impact: Streamlines panel design and cross-application reuse across machines. Application: Common across process and packaging equipment in automation lines.
