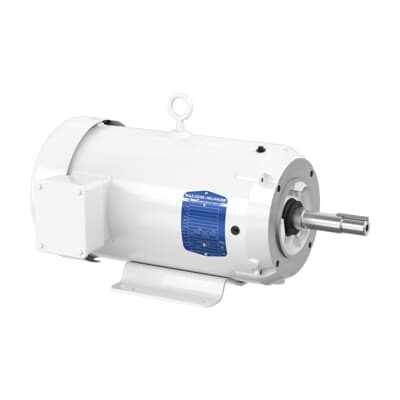

ABB JMEWDM3611T Washdown Motor - IE3 Premium Efficiency
Part Number: 7BJMEWDM3611T
Quick Summary
ABB JMEWDM3611T washdown motor delivers reliable 3 HP performance for demanding washdown conveyors and mixing processes. In environments with frequent cleaning and strict sanitation, selecting a motor with corrosion resistance and easy maintenance is essential to avoid costly downtime. This model carries CSA and UR certifications and aligns with NEMA design standards, alongside IE3 premium efficiency, helping you meet energy and safety regulations. Its robust TEFC enclosure and C-face mounting simplify installation in compact spaces, while 230/460 V, 60 Hz three-phase operation supports multiple line configurations. By combining proven ABB reliability with stock availability across major warehouses, this motor offers predictable delivery and lower total cost of ownership for food processing, packaging, and pharmaceutical lines.
Product Information
Extended Description
7BJMEWDM3611T ABB: Washdown Motor 3 Hp 230 V (JMEWDM3611T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
3HP,1760RPM,3PH,60HZ,182JM,3632M,TE
Ambient Temperature
40 °C
Bearing
6207, Ball
Bearing NDE
6205
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
JMEWDM3611T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
36LYK605: Dimension Sheet
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
182
Frequency (f)
60 Hz
Global Commercial Alias
JMEWDM3611T
Gross Volume
5274.135 in³
Gross Weight
70 lb
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
F
Invoice Description
3HP,1760RPM,3PH,60HZ,182JM,3632M,TEFC,F1
Made To Order
No
Medium Description
White Washdown, 3 HP, 1800 RPM, Frame Size 182Jm, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (JMEWDM3611T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
182JM
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
3 Hp
Power Factor
75 %
Product Name
White Washdown
Product Net Depth / Length
21.625 in
Product Net Height
15.125 in
Product Net Weight
70 lb
Product Net Width
16.125 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
8.4 A | 4.2 A
Rated Efficiency
89.50 %
Rated Speed
1760 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
0.88 in
Short Description
3 HP, 1800 RPM, Frame Size 182Jm, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: TEFC enclosure and washdown-ready design provide effective protection against moisture and contaminants, reducing maintenance costs and extending motor life in sanitary environments. This translates to lower downtime on food processing lines and packaging equipment, with predictable performance under frequent washdowns. Application: food and beverage conveyors, dairy processing, and pharmaceutical packaging lines where cleanliness is critical. Feature → Business Impact → Application: 3-phase 60 Hz operation at 230/460 V gives flexible electrical integration and simplified power sourcing for regional facilities. Benefit: minimizes wiring complexity and supports quick installation or retrofit across multiple sites. Application: cross-site production lines, OEM integrations, and retrofit projects needing standard voltage options. Feature → Business Impact → Application: IE3 premium efficiency reduces energy consumption by aligning with modern energy standards, delivering measurable lifetime cost savings. Application: high-duty-cycle conveyors and mixers where energy cost is a concern. Feature → Business Impact → Application: 3 HP, 1760 rpm, 4-pole performance offers robust torque for demanding starts; Benefit: improved start-up reliability and reduced mechanical wear on driven equipment. Application: agitators, pumps, and belt-driven conveyors in washdown environments. Feature → Business Impact → Application: C-face mounting and foot-mounted base simplify alignment and installation, shortening commissioning time. Application: OEMs upgrading existing lines or installing in tight plant spaces. Feature → Business Impact → Application: CSA/UR certifications paired with NEMA design compliance provide regulatory assurance and safer, compliant operation. Application: health care, food processing, and regulated packaging facilities seeking traceable supplier reliability. Finally, the motor’s stock-availability across multiple warehouses and a 0-day lead time address downtime risk and supply chain constraints, enabling faster procurement for critical capital projects.
