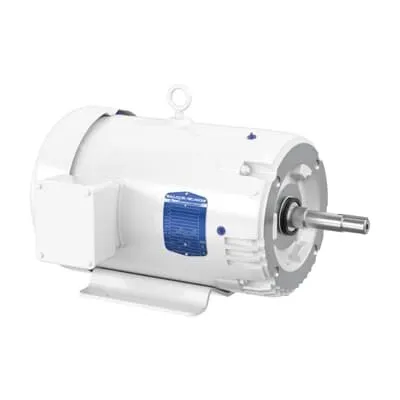

ABB JMEWDM3710T Washdown Motor - CSA/UR
Part Number: 7BJMEWDM3710T
Quick Summary
The washdown motor ABB JMEWDM3710T is engineered for reliable, sanitary operation in food & beverage, pharmaceutical, and packaging lines. This 7.5 HP, 3-phase motor delivers consistent performance at 60 Hz with dual voltage 230/460 V and a TEFC enclosure, making it ideal for challenging washdown environments. Maintenance downtime, corrosion, and unreliable seals are common pain points in high-pressure cleaning processes; this motor addresses them with sealed bearings and a rugged 213JM frame designed to withstand frequent washdowns. Certified to CSA, CSA EEV, and UR standards, it also aligns with NEMA guidelines for safety and compatibility. With standard C-face mounting and footprint-friendly dimensions, it supports scalable uptime, easier retrofit, and improved energy efficiency across multiple production lines.
Product Information
Extended Description
7BJMEWDM3710T ABB: Washdown Motor 7.5 Hp 230 V (JMEWDM3710T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
7.5HP,1770RPM,3PH,60HZ,213JM,3738M,
Ambient Temperature
40 °C
Bearing
6309, Sealed Bearing
Bearing NDE
6206
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
JMEWDM3710T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
37LYH883: Dimension Sheet
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
213
Frequency (f)
60 Hz
Global Commercial Alias
JMEWDM3710T
Gross Volume
7561.383 in³
Gross Weight
151 lb
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
Insulation Class
F
Invoice Description
7.5HP,1770RPM,3PH,60HZ,213JM,3738M,TEFC
Made To Order
No
Medium Description
White Washdown, 7.5 HP, 1800 RPM, Frame Size 213Jm, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (JMEWDM3710T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
213JM
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
7.5 Hp
Power Factor
80 %
Product Name
White Washdown
Product Net Depth / Length
26.375 in
Product Net Height
17.375 in
Product Net Weight
151 lb
Product Net Width
16.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
19 A | 9.5 A
Rated Efficiency
91.70 %
Rated Speed
1770 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
0.88 in
Short Description
7.5 HP, 1800 RPM, Frame Size 213Jm, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101115
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: TEFC enclosure and harsh-environment design protect internals from washdown spray and cleaning chemicals, reducing downtime and maintenance costs while improving equipment longevity on sanitary lines such as food processing conveyors and packaging machines. Application: Use in environments requiring high ingress protection and robust sealing. Feature → Business Impact → Application: Dual voltage 230/460 V, 3-phase, 60 Hz enables flexible installation across regional facilities and OEM equipment without rewiring, accelerating project timelines and lowering commissioning risk. Application: OEM drives and cross-border manufacturing. Feature → Business Impact → Application: 7.5 HP output with 1770 rpm nominal speed delivers steady torque for conveyors and mixers, improving line throughput and energy management. Application: Beverage and dairy processing lines. Feature → Business Impact → Application: Insulation class F and service factor 1.15 extend motor life under continuous operation and elevated ambient temperatures, decreasing replacement cycles and total cost of ownership. Application: Sanitary pump systems and agitators in high-demand production. Feature → Business Impact → Application: Sealed 6309 bearings and white washdown finish provide corrosion resistance and lower preventive maintenance needs, translating to reduced unscheduled downtime. Application: Sanitation-focused bottling and filling lines. Feature → Business Impact → Application: Foot-mounted with C-face flange and 213JM frame simplifies installation, supports quick retrofits, and ensures compatibility with existing OEM mounting patterns. Application: Retrofitting legacy equipment in line with Industry 4.0-compatible drives.
Get a Quick Quote for a ABB 7BJMEWDM3710T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BJMEWDM3710T?
Enquire Now
FAQs
The JMEWDM3710T is designed for foot-mounted, horizontal installations with a C-face flange and a 213JM frame. The shaft diameter is 0.88 inches, enabling straightforward coupling to standard drivetrains. Its footprint and mounting pattern support easy retrofit into existing equipment, reducing installation time and service disruption while ensuring alignment with common OEM drive configurations.
This is a 3-phase motor rated for 230/460 V and 60 Hz, with a nominal speed of 1770 r/min and a synchronous speed of 1800 r/min. It draws up to 19 A (rated current) and 9.5 A under certain conditions, and it supports Direct On Line starting. With a service factor of 1.15 and TEFC enclosure, it delivers dependable torque for conveyors and pumps in demanding environments.
Yes. The White Washdown variant with TEFC enclosure, 40 °C ambient rating, and sealed bearing design is tailored for frequent washdowns in food processing, pharmaceutical, and beverage applications. The frame 213JM, stainless-like sealing considerations, and 9–12 month maintenance windows align with sanitary process needs and regulatory expectations.
The motor carries CSA, CSA EEV, and UR certifications, supporting safety and compliance for regulated facilities. It also aligns with NEMA standards and offers a design suitable for sanitary and industrial environments, helping teams meet internal and external audit requirements while supporting international procurement.
With a premium efficiency rating of 91.70% and a 1.15 service factor, the JMEWDM3710T reduces energy consumption and provides better overload tolerance. Sealed bearings curb maintenance needs, and the robust TEFC design minimizes downtime in washdown cycles, delivering a lower total cost of ownership and faster return on investment for high-demand production lines.
