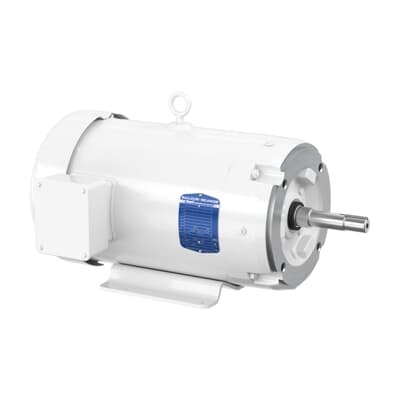

ABB 7BJMEWDM3713T Washdown Motor - CSA EEV UR
Part Number: 7BJMEWDM3713T
Quick Summary
Washdown Motor 7BJMEWDM3713T delivers 15 HP, 230 V three-phase power for hygienic washdown lines. This compact, robust motor is designed to withstand wet environments while maintaining reliable performance in packaging, food processing, and beverage applications. In practice, maintenance downtime and corrosion risk are common pain points; this solution minimizes those through a TEFC enclosure and sealed bearing system. The configuration aligns with recognized certifications such as CSA, CSA EEV, and UR, while delivering Premium Efficiency under the NEMA 12-12 standard. With 230/460 V compatibility and a foot- or C-face mounting option, it also offers tangible business value by reducing energy consumption and accelerating installation in diverse line layouts.
Product Information
Extended Description
7BJMEWDM3713T ABB: Washdown Motor 15 Hp 230 V (JMEWDM3713T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
15HP,3500RPM,3PH,60HZ,215JM,3752M,T
Ambient Temperature
40 °C
Bearing
6307, Sealed Bearing
Bearing NDE
6206
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
JMEWDM3713T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
37LYN673: Dimension Sheet
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
215
Frequency (f)
60 Hz
Global Commercial Alias
JMEWDM3713T
Gross Volume
7561.383 in³
Gross Weight
169 lb
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
Insulation Class
F
Invoice Description
15HP,3500RPM,3PH,60HZ,215JM,3752M,TEFC,F
Made To Order
No
Medium Description
White Washdown, 15 HP, 3600 RPM, Frame Size 215Jm, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (JMEWDM3713T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
215JM
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
15 Hp
Power Factor
89 %
Product Name
White Washdown
Product Net Depth / Length
26.375 in
Product Net Height
17.375 in
Product Net Weight
169 lb
Product Net Width
16.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
34 A | 17 A
Rated Efficiency
91 %
Rated Speed
3500 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
0.88 in
Short Description
15 HP, 3600 RPM, Frame Size 215Jm, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
UNSPSC
26101115
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: TEFC enclosure plus washdown-ready sealing protects internal components from water ingress and cleaning agents, reducing corrosion-related downtime and extending motor life in washdown environments. This translates to lower maintenance costs and higher line availability for food, beverage, and pharmaceutical processes where hygiene is critical. Feature → Application: 215JM frame with C-Face drive-end flange and foot-mounted base simplifies mounting in compact enclosures and on conveyors, enabling faster installation and easier alignment in existing lines. Benefit: reduced retrofit time and compatibility with standard 215JM components; Application: food processing conveyors and packaging lines. Feature → Business Impact → Application: Premium Efficiency (NEMA 12-12) and 89% power factor improve energy performance and electrical reliability, lowering operating costs in high-duty cycles. Application: continuous operation in 60 Hz, 3-phase systems across 230/460 V setups. Feature → Application: Sealed 6307 bearings and Insulation Class F support long service life under frequent washdowns and elevated temperatures (up to 40 °C). Benefit: lower replacement costs and steadier performance in harsh environments. Feature → Business Impact → Application: Direct On Line starting and 3500 r/min nominal rotor speed enable straightforward integration with existing drive schemes and compact line layouts. Application: OEM equipment requiring simple, robust startup and reliable torque for conveyors, mixers, and pumps.
