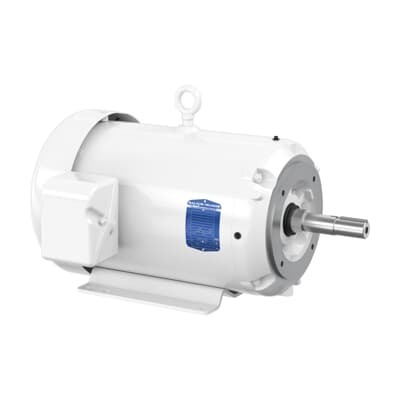

ABB 7BJMEWDM41906T Washdown Motor - TEFC 60 Hz
Part Number: 7BJMEWDM41906T
Quick Summary
Washdown Motor 20 HP from ABB delivers reliable performance in clean-in-place environments for food processing and beverage applications. In washdown scenarios, downtime and corrosion risk can erode uptime and productivity; this motor is engineered to resist moisture, contaminants, and frequent wash cycles. Certified for CSA, CSA EEV, and UR, with IE3 premium efficiency and a NEMA-aligned design, it meets rigorous industry standards while maximizing energy savings. The 230/460 V, 60 Hz three-phase configuration provides flexible integration with existing electrical systems, and the rugged C-face, frame 256JM, and TEFC enclosure support long-term, scalable automation across multiple lines.
Product Information
Extended Description
7BJMEWDM41906T ABB: Washdown Motor 20 Hp 230 V (JMEWDM41906T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
60M 2P TEFC HOR 256JM SP9 HOSE DOW
Ambient Temperature
40 °C
Bearing
6309, Sealed Bearing
Bearing NDE
6208
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
JMEWDM41906T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
39LYK068: Dimension Sheet
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
256
Frequency (f)
60 Hz
Global Commercial Alias
JMEWDM41906T
Gross Volume
14448.906 in³
Gross Weight
115.666 kg
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
Insulation Class
F
Invoice Description
60M 2P TEFC HOR 256JM SP9 HOSE DOWN SE
Made To Order
No
Medium Description
White Washdown, 20 HP, 3600 RPM, Frame Size 256Jm, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (JMEWDM41906T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
256JM
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
20 Hp
Power Factor
93 %
Product Name
White Washdown
Product Net Depth / Length
31 in
Product Net Height
19.625 in
Product Net Weight
115.666 kg
Product Net Width
23.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
43 A | 21.5 A
Rated Efficiency
91 %
Rated Speed
3525 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Shaft Diameter
1.25 in
Short Description
20 HP, 3600 RPM, Frame Size 256Jm, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
UNSPSC
26101115
Voltage Rating
230 V | 460 V
Feature: TEFC enclosure and sealed construction provide superior ingress protection, reducing washdown-related downtime and corrosion. Business Impact: Lower maintenance costs and longer motor life in sanitary environments. Application: Food processing lines and beverage packaging where hygiene and reliability are critical. Feature: 256JM frame, 2-pole, 3-phase design with foot mounting and C-face connection. Business Impact: Compact footprint and straightforward replacement in retrofit projects, minimizing downtime during upgrades. Application: Compact conveyors and pump assemblies in plant spaces with limited clearance. Feature: IE3 Premium Efficiency rated performance with 93% power factor. Business Impact: Reduced energy consumption over motor life, improving total cost of ownership. Application: Continuous-duty pumps and fans in large-scale manufacturing facilities. Feature: Direct On Line starting capability and 60 Hz operation at 230/460 V. Business Impact: Simplified electrical installation, immediate availability, and lower drive complexity. Application: Essential line-module motors in automated lines with standard electrical services. Feature: Stainless-like washdown-ready design cues and robust bearings (6309, sealed bearing; NDE 6208). Business Impact: Extended bearing life and reduced maintenance intervals in aggressive washdown cycles. Application: High-pressure cleaning zones in dairy, meat processing, and pharma facilities. Feature: Certifications and standards alignment (CSA, CSA EEV, UR; NEMA design; IE3). Business Impact: Regulatory/compliance confidence and compatibility with quality-management programs. Application: Global deployments requiring multi-site certification and reliable supply chains.
