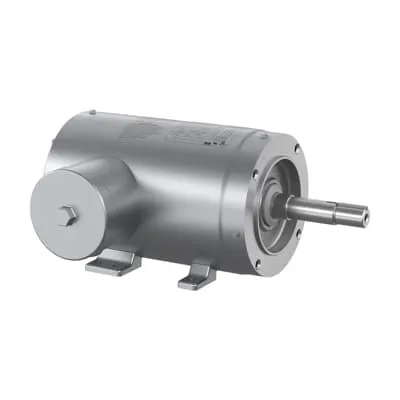

ABB 7BJMFSWDM3546T-E Washdown Motor - IE3 Premium
Part Number: 7BJMFSWDM3546T-E
Quick Summary
Washdown motor is a reliable, hygienic drive for food processing and other wet environments. This ABB model is a 1 HP, 230 V three-phase design with a stainless steel frame and sealed bearings built to withstand frequent washdowns and aggressive cleaners. The design features a TENV enclosure and a 40 °C ambient rating, reducing corrosion risk and enabling longer service life in demanding facilities. Certifications including CSA EEV, UR, and NEMA Premium ensure compliance across North American and global supply chains. In addition to robust protection, dual-voltage operation (230/460 V) and direct-on-line starting streamline installation and commissioning, delivering predictable lifecycle cost, reduced downtime, and easier spare-part planning for maintenance teams.
Product Information
Extended Description
7BJMFSWDM3546T-E ABB: Washdown Motor 1 Hp 230 V (JMFSWDM3546T-E)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1HP,1770RPM,3PH,60HZ,143JM,3522M,TE
Ambient Temperature
40 °C
Bearing
6206, Sealed Bearing
Bearing NDE
6205
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
JMFSWDM3546T-E
Certification Agency
CSA EEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015100
Dimension Diagram
35LYE4762: Dimension Sheet
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TENV
Frame Material
Stainless_Steel
Frame Size
143
Frequency (f)
60 Hz
Global Commercial Alias
JMFSWDM3546T-E
Gross Volume
3496.049 in³
Gross Weight
37 lb
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
H
Invoice Description
1HP,1770RPM,3PH,60HZ,143JM,3522M,TENV,F1
Made To Order
No
Medium Description
Food Safe Washdown, 1 HP, 1800 RPM, Frame Size 143Jm, C-Face Mounting, 3 Phase, TENV Enclosure, 230/460 V, 60 Hz (JMFSWDM3546T-E)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
143JM
Motor Frame Suffix
JM
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
1 Hp
Power Factor
66 %
Product Name
Food Safe Washdown
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
37 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
3.34 A | 1.67 A
Rated Efficiency
85.50 %
Rated Speed
1770 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
0.88 in
Short Description
1 HP, 1800 RPM, Frame Size 143Jm, C-Face, 3 PH, TENV, 230/460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
230 V | 460 V
Feature: IE3 Premium Efficiency and 1 HP output drive meaningful energy savings over the motor's life. This translates to lower operating costs on conveyors and mixers in continuous duty applications, while maintaining torque at 1770 r/min for stable process control. Application: Ideal for food processing lines and washdown-intensive packaging where energy intensity matters and reliability is critical. Feature: Food Safe Washdown design with a stainless steel frame and sealed bearings. Business Impact: Enhanced hygiene, easier cleaning, and extended asset life in harsh cleaning regimes. Application: Food and beverage, dairy, and pharmaceutical lines requiring frequent sanitation.Feature: Dual voltage (230 V / 460 V) and 3-phase 60 Hz operation. Business Impact: Simplified global sourcing and stock management with compatible drives and in-field changeover without rewiring. Application: OEM lines and multi-site facilities that standardize on a common motor footprint.Feature: Flexible mounting options (Foot Mounted, C-Face, Horizontal orientation, F1). Business Impact: Faster installation and alignment with minimal downtime, reducing commissioning time and spare-parts needs. Application: Conveyors, mixers, and pumps where space and alignment flexibility matter.Feature: Robust construction (Frame Size 143JM, Stainless_Steel frame, Enclosure Type TENV, 40 °C ambient). Business Impact: Higher resistance to corrosion and ingress in washdown environments, lowering maintenance costs and unplanned downtime. Application: Continuous operation in food processing plants and washdown zones.Feature: Protection and performance specs (IE3, 85.5% efficiency, 66% PF, 1.67–3.34 A rated current). Business Impact: Predictable performance with reliable power factor, reducing electrical overhead and improving drive compatibility. Application: Process lines requiring stable speed and reduced electrical stress on drives and starters.
