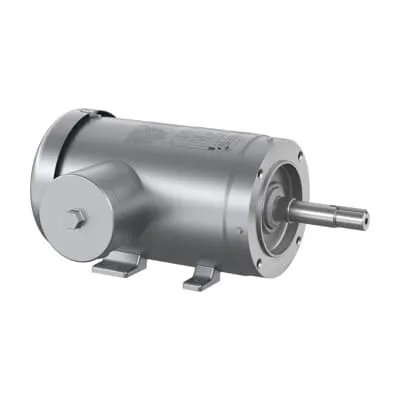

ABB JMFSWDM3555T-E Washdown Motor - IE3 Premium Efficiency
Part Number: 7BJMFSWDM3555T-E
Quick Summary
Washdown motor ABB JMFSWDM3555T-E is a reliable 2 HP drive designed for food processing equipment and washdown environments. End users in hygienic facilities often struggle with corrosion, frequent cleaning cycles, and energy waste that hamper productivity and uptime. This model delivers NEMA Premium IE3 efficiency, CSA EEV, and UR certifications, paired with a rugged TEFC enclosure for harsh washdown conditions. With a stainless-steel frame and 60 Hz operation, it enables scalable automation, easier maintenance, and lower lifecycle costs across conveyors, mixers, and packaging lines.
Product Information
Extended Description
7BJMFSWDM3555T-E ABB: Washdown Motor 2 Hp 230 V (JMFSWDM3555T-E)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
2HP,3450RPM,3PH,60HZ,145JM,3532M,TE
Ambient Temperature
40 °C
Bearing
6206, Sealed Bearing
Bearing NDE
6205
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
JMFSWDM3555T-E
Certification Agency
CSA EEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
35LYE4781: Dimension Sheet
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Stainless_Steel
Frame Size
145
Frequency (f)
60 Hz
Global Commercial Alias
JMFSWDM3555T-E
Gross Volume
5274.135 in³
Gross Weight
50 lb
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
H
Invoice Description
2HP,3450RPM,3PH,60HZ,145JM,3532M,TEFC,F1
Made To Order
No
Medium Description
Food Safe Washdown, 2 HP, 3600 RPM, Frame Size 145Jm, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (JMFSWDM3555T-E)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
145JM
Motor Frame Suffix
JM
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
2 Hp
Power Factor
85 %
Product Name
Food Safe Washdown
Product Net Depth / Length
21.625 in
Product Net Height
15.125 in
Product Net Weight
50 lb
Product Net Width
16.125 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
5 A | 2.5 A
Rated Efficiency
86.50 %
Rated Speed
3450 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
0.88 in
Short Description
2 HP, 3600 RPM, Frame Size 145Jm, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
230 V | 460 V
Feature → TEFC enclosure provides protection against water spray and dust, reducing seal failures and warranty claims. Business Impact → Extends motor life and minimizes unscheduled downtime. Application → Ideal for food and beverage conveyors and packaging lines in washdown-heavy environments. Feature → Stainless steel frame delivers corrosion resistance in sanitary processes. Business Impact → Reduces replacement costs and maintenance intervals. Application → Suitable for meat, dairy, and produce lines where frequent cleaning is required. Feature → 145JM frame size with C-face mounting enables straightforward replacement and compatibility with standard conveyors and gearheads. Business Impact → Cuts installation time and lowers retrofit risk. Application → Common in plant-wide motor retrofit projects. Feature → Electricals of 230/460 V at 60 Hz with 3-phase power and direct-on-line starting. Business Impact → Simplifies electrical design, reduces control panel complexity, and lowers startup costs. Application → Fits typical US industrial plants and hygienic production lines. Feature → Insulation Class H and sealed bearings (6206, NDE 6205) target high-temperature operation and maintenance-free life. Business Impact → Improves reliability under aggressive washdown cycles and long service intervals. Application → Essential for continuous-duty, high-sanitize environments. Feature → IE3 premium efficiency and 85% power factor reduce energy usage and operating costs. Business Impact → Demonstrates strong total cost of ownership (TCO) benefits. Application → Contributes to sustainability goals while maintaining performance.
