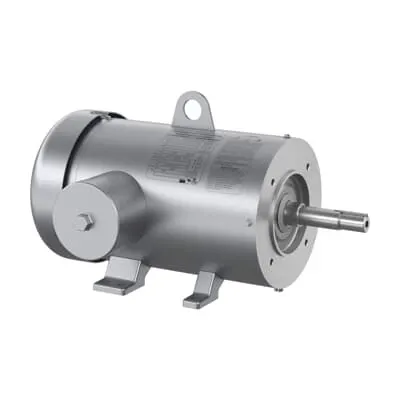

ABB 7BJMFSWDM3613T-E Washdown Motor - NEMA Premium TEFC 230/460V
Part Number: 7BJMFSWDM3613T-E
Quick Summary
Washdown motor ABB JMFSWDM3613T-E delivers safe, sanitary power for heavy-duty processing equipment in food and beverage lines. Engineers often struggle with moisture, corrosion, and downtime in washdown zones; this motor’s stainless-steel frame and TEFC enclosure mitigate those risks. It carries NEMA Premium efficiency, CSA EEV, and UR certifications, aligning with energy and safety requirements across North American facilities. Designed for reliable operation in demanding environments, it also supports flexible procurement and quick deployment. By combining rugged construction with industry-leading standards, this solution helps manufacturers reduce total cost of ownership while maintaining compliance and operational performance.
Product Information
Extended Description
7BJMFSWDM3613T-E ABB: Washdown Motor 5 Hp 230 V (JMFSWDM3613T-E)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
5HP,3500RPM,3PH,60HZ,184JM,3634M,TE
Ambient Temperature
40 °C
Bearing
6207, Sealed Bearing
Bearing NDE
6206
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
JMFSWDM3613T-E
Certification Agency
CSA EEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
36LYR563: Dimension Sheet
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Stainless_Steel
Frame Size
184
Frequency (f)
60 Hz
Global Commercial Alias
JMFSWDM3613T-E
Gross Volume
7192.91 in³
Gross Weight
81 lb
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
H
Invoice Description
5HP,3500RPM,3PH,60HZ,184JM,3634M,TEFC,F1
Made To Order
No
Medium Description
Food Safe Washdown, 5 HP, 3600 RPM, Frame Size 184Jm, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (JMFSWDM3613T-E)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
184JM
Motor Frame Suffix
JM
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
5 Hp
Power Factor
95 %
Product Name
Food Safe Washdown
Product Net Depth / Length
26.625 in
Product Net Height
16.25 in
Product Net Weight
81 lb
Product Net Width
16.625 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
11.2 A | 5.6 A
Rated Efficiency
89.50 %
Rated Speed
3500 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
0.88 in
Short Description
5 HP, 3600 RPM, Frame Size 184Jm, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
230 V | 460 V
Feature → The stainless-steel frame and TEFC enclosure deliver superior corrosion resistance in washdown environments. Business Impact → Reduced maintenance costs and longer service life in sanitary applications. Application → Food and beverage processing lines, CIP systems, and cleaning-intensive plants. Feature → Premium efficiency (NEMA Premium) and high power factor (95%). Business Impact → Lower energy consumption, improved utility metrics, and lower operating costs over the motor’s life. Application → Continuous-duty conveyors, mixers, and pumps in 60 Hz facilities. Feature → 5 HP output at 3500 r/min with 60 Hz and dual voltage (230/460 V). Business Impact → Flexible integration across global plants and simplified stocking with a single model. Application → Global manufacturing floors and mixed-voltage sites needing upgrade paths. Feature → Direct-on-line starting and 3-phase operation with a C-face mount and 184JM frame. Business Impact → Simple installation, minimal control hardware, faster line commissioning. Application → Replacing older units in retrofit projects and new line installations. Feature → Sealed bearings (6207) and NDE bearing (6206) provide reliability and reduced maintenance intervals. Business Impact → Fewer unplanned downtime events, stable performance in washdown cycles. Application → Food processing equipment, packaging lines, and hygienic assembly stations. Feature → Certifications (CSA EEV, UR, NEMA Premium) and safety compliance support. Business Impact → Streamlined qualification for regulated environments and faster approval cycles. Application → Facilities with strict energy and safety mandates seeking compliant motor solutions. Industry Insight → Stocked at multiple warehouses (US and international), with 0-day lead time for rapid deployment, enabling lean inventories and just-in-time procurement. This aligns with modern plant strategies to minimize capital lock-up while sustaining high uptime and throughput.
