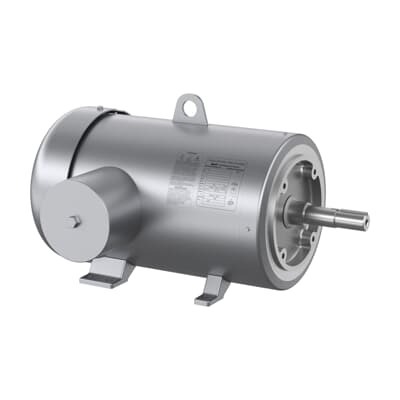

ABB JMFSWDM41906T-E Washdown Motor - Premium Efficiency
Part Number: 7BJMFSWDM41906T-E
Quick Summary
ABB JMFSWDM41906T-E washdown motor powers hygienic food-processing lines with dependable 20 HP performance. In high-cleanliness environments, maintenance and downtime are costly; reliability matters. This design carries NEMA Premium Efficiency, CSA EEV, and UR certifications, reinforcing energy savings and regulatory compliance. With a TEFC enclosure, stainless-steel frame, and 230/460 V capability, it fits 3-phase, industrial washdown applications. For procurement teams and engineers, the combination of rugged construction and ready availability translates to lower total cost of ownership. The 256 frame size and C-face mounting streamline integration with line equipment and downstream drive trains.
Product Information
Extended Description
7BJMFSWDM41906T-E ABB: Washdown Motor 20 Hp 230 V (JMFSWDM41906T-E)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
20HP,3540RPM,3PH,60HZ,256JM,TEFC,F1
Ambient Temperature
40 °C
Bearing
6309, Sealed Bearing
Bearing NDE
6309
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
JMFSWDM41906T-E
Certification Agency
CSA EEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
39LYE754: Dimension Sheet
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Stainless_Steel
Frame Size
256
Frequency (f)
60 Hz
Global Commercial Alias
JMFSWDM41906T-E
Gross Volume
14448.906 in³
Gross Weight
133.81 kg
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
Insulation Class
H
Invoice Description
20HP,3540RPM,3PH,60HZ,256JM,TEFC,F1
Made To Order
No
Medium Description
Food Safe Washdown, 20 HP, 3600 RPM, Frame Size 256Jm, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (JMFSWDM41906T-E)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
256JM
Motor Frame Suffix
JM
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
20 Hp
Power Factor
90 %
Product Name
Food Safe Washdown
Product Net Depth / Length
31 in
Product Net Height
19.625 in
Product Net Weight
133.81 kg
Product Net Width
23.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
46 A | 23 A
Rated Efficiency
91 %
Rated Speed
3540 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Shaft Diameter
1.25 in
Short Description
20 HP, 3600 RPM, Frame Size 256Jm, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
UNSPSC
26101115
Voltage Rating
230 V | 460 V
Feature: 20 HP, 3540 RPM, 3PH, 60 Hz. Business Impact: Delivers suitable torque and speed for conveyors and pumps in food-processing lines, reducing overload incidents. Application: Ideal for high-load, continuous operation on hygienic production lines. Feature: TEFC enclosure and stainless-steel frame. Business Impact: Enables reliable washdown resistance and corrosion protection, extending motor life in wet environments. Application: Food-safe washdown motors in dairy, meat, and beverage processing. Feature: Frame 256JM, drive end C-face, shaft diameter 1.25 in, foot-mounted base. Business Impact: Simplifies direct mounting and compatibility with standard motor bases and drive systems, cutting installation time. Application: Factory floor retrofits and new line builds requiring straightforward SKU integration. Feature: Premium Efficiency (NEMA). Business Impact: Lower energy consumption and operating costs over the motor’s life, supporting sustainability targets. Application: Plants with strict energy management goals and utility incentives. Feature: Certifications CSA EEV and UR. Business Impact: Regulatory compliance reduces audit risk and accelerates project approvals. Application: Food processing facilities subject to safety and regulatory standards. Feature: 230/460 V operation, 3-phase, 60 Hz. Business Impact: Flexible power sourcing across facilities and regions, minimizing wiring changes. Application: Global deployments and multi-site installations with standard power rails.
