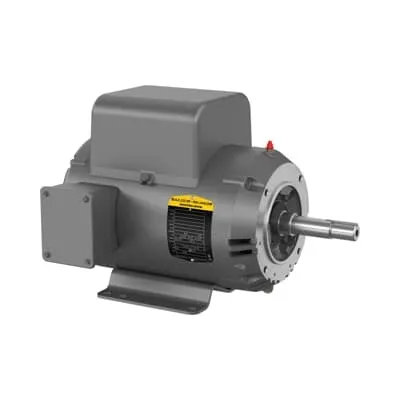

ABB 7BJML1409T Pump Motor - 5HP, 1PH, 60Hz CSA/UR
Part Number: 7BJML1409T
Quick Summary
ABB 7BJML1409T pump motor delivers reliable close-coupled pumping for 5 HP, 1-phase, 60 Hz systems across commercial and industrial applications. This motor helps minimize downtime by simplifying installation and field retrofits in compact pump assemblies. Key certifications and standards include CSA | UR and NEMA alignment, ensuring regulatory compliance and safer operation in plant environments. With an open enclosure and C-face mounting, it offers flexible installation and easy maintenance in horizontal pump configurations. Designed for 60 Hz operation on 230 V, it supports steady performance with a 1.15 service factor and 3500–3600 rpm range, delivering value through reliability, readily available spares, and predictable life-cycle costs.
Product Information
Extended Description
7BJML1409T ABB: Pump Motor 5 Hp 230 V (JML1409T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
5HP,3500RPM,1PH,60HZ,184JM,3634LC,O
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6207 | Ball
Bearing NDE
6205 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
JML1409T
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
L
Dimension Diagram
36LYM927: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
OPEN
Frame Material
Steel
Frame Size
184
Frequency (f)
60 Hz
Global Commercial Alias
JML1409T
Gross Volume
3590.443 in³
Gross Weight
81 lb
Horsepower Rating UL/CSA
5.000 Hp
IC Class
OPEN
IDEA Granular Category Code (IGCC)
1320 >> Pump motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
5HP,3500RPM,1PH,60HZ,184JM,3634LC,OPEN,F
Lubrication
Regreasable
Made To Order
No
Medium Description
Close Coupled Pump, 5 HP, 3600 RPM, Frame Size 184Jm, C-Face Mounting, 1 Phase, OPEN Enclosure, 230 V, 60 Hz (JML1409T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
184JM
Motor Frame Suffix
JM
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
L
Number of Phases
1
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
5 Hp
Power Factor
96 %
Product Name
Close Coupled Pump
Product Net Depth / Length
22.875 in
Product Net Height
12.813 in
Product Net Weight
81 lb
Product Net Width
12.25 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
21 A
Rated Efficiency
80 %
Rated Speed
3500 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.88 in
Short Description
5 HP, 3600 RPM, Frame Size 184Jm, C-Face, 1 PH, OPEN, 230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101107
Voltage Code
H
Voltage Rating
230 V
5 HP, 230 V, 60 Hz single-phase design with a 3600 r/min synchronous speed and 3500 r/min running speed enables compact drive integration and straightforward direct-on-line starting. This reduces control circuitry, cut-in startup time, and simplifies spare parts management across plant pumps. Ideal for close-coupled pump assemblies in HVAC, water transfer, and process cooling lines.\n\nOpen enclosure and C-face mounting, with foot-mounted compatibility, deliver flexible alignment with existing pump bases and easier field maintenance. Business impact: faster installation, simpler replacement, and improved cooling paths for steady operation. Application: horizontal pumps in service-based facilities and retrofit projects where space is constrained.\n\n1-phase operation with direct-on-line starting reduces electrical complexity and startup surge management, enabling quick commissioning and lower control hardware costs. The 1.15 service factor supports occasional overloads without immediate derating, while the 80% efficiency improves energy performance in continuous service.\n\nCSA | UR certification and NEMA-standard compliance provide regulatory assurance and safety for industrial environments. Business impact: smoother procurement and risk mitigation for audits, with compatibility to standard protection relays and control cabinets. Application: regulated facilities, healthcare, and food processing where documented certifications matter.\n\nRegreasable lubrication and robust bearing support (6207/6205) with a 81 lb mass and steel frame (184JM) deliver durability and reduced maintenance intervals. Business impact: extended bearing life and predictable uptime, while stock availability across multiple warehouses reduces lead times. Application: field service and continuous operation in North America and global plants.
