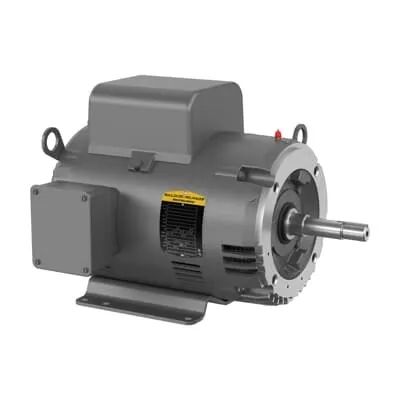

ABB 7BJML1508T Pump Motor - 5HP, 1P, 60Hz OPSB
Part Number: 7BJML1508T
Quick Summary
ABB 7BJML1508T Pump Motor is a compact, high-efficiency drive unit designed for close-coupled pumping in industrial water systems. Engineers often struggle with downtime caused by mismatched motor specs and extended procurement cycles. This motor is CSA/UR certified and built to NEMA standards, with an OPSB enclosure that protects critical components in demanding environments. At 5 HP and a 213JM frame, it delivers strong performance without overbuilding your drive system. Stocked across multiple warehouses with 0-day lead time, it accelerates installation and reduces project delays. For buyers, the combination of reliable operation, regulatory compliance, and easy procurement translates into lower total cost of ownership and faster time-to-value for pump projects.
Product Information
Extended Description
7BJML1508T ABB: Pump Motor 5 Hp 230 V (JML1508T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
5HP,1745RPM,1PH,60HZ,213JM,3727L,OP
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6309 | Ball
Bearing NDE
6206 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
JML1508T
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
L
Dimension Diagram
37LYK238: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
OPSB
Frame Material
Steel
Frame Size
213
Frequency (f)
60 Hz
Global Commercial Alias
JML1508T
Gross Volume
7192.91 in³
Gross Weight
115 lb
Horsepower Rating UL/CSA
5.000 Hp
IC Class
OPSB
IDEA Granular Category Code (IGCC)
1320 >> Pump motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
B
Invoice Description
5HP,1745RPM,1PH,60HZ,213JM,3727L,OPSB,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
Close Coupled Pump, 5 HP, 1800 RPM, Frame Size 213Jm, C-Face Mounting, 1 Phase, OPSB Enclosure, 230 V, 60 Hz (JML1508T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
213JM
Motor Frame Suffix
JM
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
L
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
5 Hp
Power Factor
78 %
Product Name
Close Coupled Pump
Product Net Depth / Length
26.625 in
Product Net Height
16.25 in
Product Net Weight
115 lb
Product Net Width
16.625 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
27 A
Rated Efficiency
77 %
Rated Speed
1725 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.88 in
Short Description
5 HP, 1800 RPM, Frame Size 213Jm, C-Face, 1 PH, OPSB, 230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101107
Voltage Code
G
Voltage Rating
230 V
Feature: 5 HP, 230 V single-phase, 60 Hz operation. Business Impact: Maximizes compatibility with standard plant electrical systems, reducing wiring complexity and panel space. Application: Ideal for small-to-medium close-coupled pump setups in water transfer and industrial processes. Feature: OPSB enclosure and C-Face drive end flange. Business Impact: Provides rugged protection in dusty or humid environments and simplifies mechanical integration with existing equipment. Application: Retrofit or new-build pump assemblies in harsh facility conditions. Feature: Frame 213JM with 0.88 in shaft and 1725 r/min rated speed. Business Impact: Compact footprint supports easy installation and straightforward replacement in constrained spaces. Application: Close-coupled pump configurations and OEM pump packages. Feature: Insulation Class B, Regreasable lubrication, and Service Factor 1.15. Business Impact: Durable design reduces overheating risk and maintenance costs while handling moderate overloading. Application: Continuous to long-run pump service in industrial plants. Feature: 0 day lead time, US origin, and multi-warehouse stocking. Business Impact: Accelerates procurement, minimizes downtime, and improves project predictability. Application: Production lines, water treatment, and process industries requiring fast availability. Feature: NEMA design, CSA/UR certification, and 1PH 60 Hz operation. Business Impact: Streamlined regulatory compliance and safer procurement for electrical cabinets and motor control centers. Application: Global plant networks seeking standardized, compliant motor solutions.
