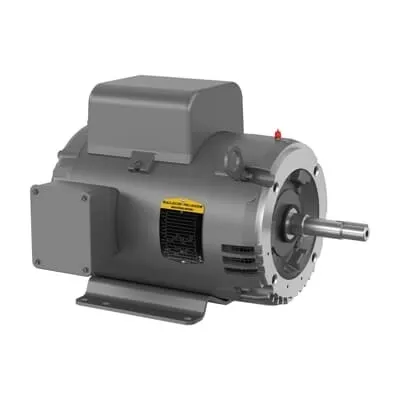

ABB 7BJML1511T Pump Motor - 1PH 60Hz 230V, 10HP, CSA/UR
Part Number: 7BJML1511T
Quick Summary
ABB 7BJML1511T pump motor is designed for close-coupled pump systems, delivering 10 HP at 230 V for 1-phase, 60 Hz operation. Operators often face downtime when motors don’t fit frames or require bulky protective housings; this model uses a compact 215JM frame with a C-face mounting to simplify installation in space-constrained layouts. The unit carries CSA and UR certifications and adheres to NEMA design standards, providing dependable safety and compatibility across US facilities. With 3450 rpm at 60 Hz and an open enclosure, it suits clean-room and outdoor environments alike. The combination of robust bearings and regreasable lubrication supports long service intervals, delivering predictable performance and lower total cost of ownership for pumping systems.
Product Information
Extended Description
7BJML1511T ABB: Pump Motor 10 Hp 230 V (JML1511T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
10HP,3450RPM,1PH,60HZ,215JM,3740L,O
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6309 | Ball
Bearing NDE
6206 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
JML1511T
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
L
Dimension Diagram
37LYK266: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
OPEN
Frame Material
Steel
Frame Size
215
Frequency (f)
60 Hz
Global Commercial Alias
JML1511T
Gross Volume
7561.383 in³
Gross Weight
141 lb
Horsepower Rating UL/CSA
10.000 Hp
IC Class
OPEN
IDEA Granular Category Code (IGCC)
1320 >> Pump motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
10HP,3450RPM,1PH,60HZ,215JM,3740L,OPEN,F
Lubrication
Regreasable
Made To Order
No
Medium Description
Close Coupled Pump, 10 HP, 3600 RPM, Frame Size 215Jm, C-Face Mounting, 1 Phase, OPEN Enclosure, 230 V, 60 Hz (JML1511T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
215JM
Motor Frame Suffix
JM
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
L
Number of Phases
1
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
10 Hp
Power Factor
86 %
Product Name
Close Coupled Pump
Product Net Depth / Length
26.375 in
Product Net Height
17.375 in
Product Net Weight
141 lb
Product Net Width
16.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
46 A
Rated Efficiency
83 %
Rated Speed
3450 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.88 in
Short Description
10 HP, 3600 RPM, Frame Size 215Jm, C-Face, 1 PH, OPEN, 230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101107
Voltage Code
G
Voltage Rating
230 V
The 10 HP, 230 V, 1-phase configuration ensures ample torque for close-coupled pumps in light-industrial and plumbing applications; this translates into reliable start-up and consistent flow in water transfer and processing lines. The 215JM frame with C-face mounting and foot-mounted base simplifies installation in tight spaces and reduces assembly time. Direct On Line starting provides immediate torque without complex controls, lowering system cost and enabling straightforward upgrades for existing lines. Rated current of 46 A and a power factor of 0.86 support predictable electrical loading and reduced energy waste, while the 83% efficiency improves operating cost in continuous-duty pumps. Regreasable bearings and open enclosure strike a balance between maintenance access and cooling, minimizing downtime in maintenance windows. Built to CSA/UR standards and NEMA guidelines, it ensures compliance across US plants while remaining compatible with common pump couplings and drive shafts.
Get a Quick Quote for a ABB 7BJML1511T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BJML1511T?
Enquire Now
FAQs
Yes. The 7BJML1511T uses a 215JM frame with C-face mounting and is designed for foot-mounted installation, simplifying retrofits in existing close-coupled pump assemblies.
It is a 10 HP, 230 V, 1-phase, 60 Hz motor with a rated current of ~46 A, power factor around 0.86, and a rated speed of 3450 r/min, suitable for standard open-enclosure pumps.
Ideal for close-coupled pumps in water transfer, process cooling, and light industrial pumping where open enclosure and compact form factor are advantageous.
The 7BJML1511T carries CSA and UR certifications and adheres to NEMA design standards, ensuring safety and compatibility in US facilities.
With regreasable bearings and an open enclosure, maintenance is accessible and cost-effective. DOL starting reduces control hardware costs, and the motor’s efficiency supports lower energy spend over its life.
