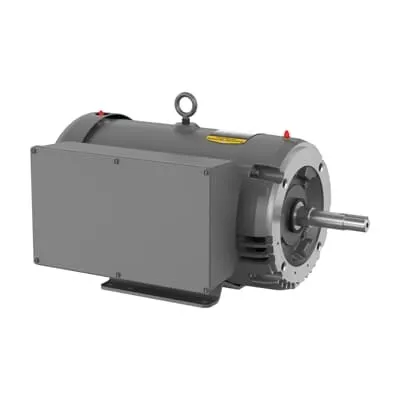

ABB 7BJML1512T Pump Motor - 1PH 60Hz, ODTF NEMA
Part Number: 7BJML1512T
Quick Summary
ABB 7BJML1512T pump motor delivers 10 HP pumping capability for 230 V single-phase, 60 Hz systems in close-coupled pump environments. This design addresses downtime risk with fast availability and straightforward installation. The unit carries CSA and UR listings and adheres to NEMA design standards, ensuring regulatory compliance in US facilities. Stocked across multiple warehouses with a zero-day lead time, it supports resilient maintenance planning and rapid replenishment. The motor’s regreasable bearings, 1.15 service factor, and high PF contribute to lower total cost of ownership while maintaining reliable performance in demanding industrial processes.
Product Information
Extended Description
7BJML1512T ABB: Pump Motor 10 Hp 230 V (JML1512T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
10HP,1725RPM,1PH,60HZ,215JM,3744LC,
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6309 | Ball
Bearing NDE
6206 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
JML1512T
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
L
Dimension Diagram
37LYF842: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
ODTF
Frame Material
Steel
Frame Size
215
Frequency (f)
60 Hz
Global Commercial Alias
JML1512T
Gross Volume
7561.383 in³
Gross Weight
150 lb
Horsepower Rating UL/CSA
10.000 Hp
IC Class
ODTF
IDEA Granular Category Code (IGCC)
1320 >> Pump motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
10HP,1725RPM,1PH,60HZ,215JM,3744LC,ODTF
Lubrication
Regreasable
Made To Order
No
Medium Description
Close Coupled Pump, 10 HP, 1800 RPM, Frame Size 215Jm, C-Face Mounting, 1 Phase, ODTF Enclosure, 230 V, 60 Hz (JML1512T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
215JM
Motor Frame Suffix
JM
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
L
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
10 Hp
Power Factor
94 %
Product Name
Close Coupled Pump
Product Net Depth / Length
26.375 in
Product Net Height
17.375 in
Product Net Weight
150 lb
Product Net Width
16.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
41 A
Rated Efficiency
84 %
Rated Speed
1725 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.88 in
Short Description
10 HP, 1800 RPM, Frame Size 215Jm, C-Face, 1 PH, ODTF, 230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101107
Voltage Code
F
Voltage Rating
230 V
Feature → Business Impact → Application: The 10 HP, 230 V single-phase configuration reduces energy and wiring complexity for compact pump installations, enabling faster commissioning and lower upfront costs in municipal and industrial fluid handling. The direct-on-line start capability minimizes startup sequence time, boosting productivity in water transfer and processing lines while reducing soft-start wear. The ODTF enclosure protects against dust and moisture in harsh plant environments, improving uptime and extending service intervals for food-grade or chemical processing applications. The 215JM frame size with C-face mounting provides a robust, versatile footprint that simplifies retrofits and aligns with common Baldor-Reliance motor baselines in retrofit projects. With a rated current of 41 A and a PF of 0.94, operators realize energy efficiency gains and predictable electrical demand.
Get a Quick Quote for a ABB 7BJML1512T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BJML1512T?
Enquire Now
FAQs
Yes. It features a 215JM frame size with C-face mounting and foot-mounted base design, designed for horizontal installations and easy integration with typical close-coupled pump assemblies.
The motor is CSA and UR listed and adheres to NEMA design standards, ensuring compliance with US safety and performance requirements for industrial equipment and reducing qualification time for regulated facilities.
Regreasable bearings require periodic lubrication per maintenance schedules. Use manufacturer-approved lubricants and monitor bearing temperature and vibration to prevent unexpected downtime.
Ideal for close-coupled pump assemblies in water transfer, municipal and industrial processing, and any single-phase 230 V pumping needs requiring reliable start-up and durable enclosure protection (ODTF).
With 1.15 service factor, high PF (0.94), and a robust F-class insulation in an ODTF enclosure, the motor delivers consistent performance, reduced energy costs, and longer maintenance intervals, lowering total cost of ownership.
