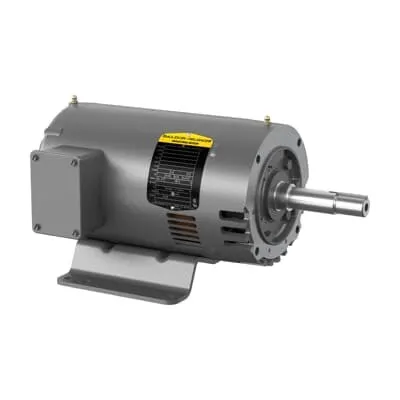

ABB 7BJMM3212TX Pump Motor - OPSB Enclosure
Part Number: 7BJMM3212TX
Quick Summary
ABB 7BJMM3212TX Pump Motor is a compact, close-coupled 5 HP 3-phase motor designed for demanding pumping duties at 208-460 V and 60 Hz. This Baldor-Reliance unit delivers reliable performance in both horizontal and vertical installations, featuring a C-face drive end and OPSB enclosure for rugged operation in harsh environments. With 0-day lead time and stock in multiple US warehouses, it supports fast project timelines and quick replacements. The design aligns with NEMA design B, CSA and UR safety standards, and IE1 energy efficiency to help reduce operating costs. Whether upgrading existing pump systems or integrating new equipment, the 7BJMM3212TX provides predictable longevity, serviceability, and ABB-backed support for industrial applications.
Product Information
Extended Description
7BJMM3212TX ABB: Pump Motor 5 Hp 208 V (JMM3212TX)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
5HP,3450RPM,3PH,60HZ,182JM,3534M,OP
Ambient Temperature
40 °C
Bearing
6207, Ball
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
JMM3212TX
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Drive End Flange Type
C-Face
Efficiency Level
Energy Efficiency (NEMA 12-11) | IE1 | Not Regulated / Exempt
Electrical Data
Enclosure Type
OPSB
Frame Material
Steel
Frame Size
182
Frequency (f)
60 Hz
Global Commercial Alias
JMM3212TX
Gross Volume
5274.135 in³
Gross Weight
55 lb
Insulation Class
B
Invoice Description
5HP,3450RPM,3PH,60HZ,182JM,3534M,OPSB,F1
Made To Order
No
Medium Description
Close Coupled Pump, 5 HP, 3600 RPM, Frame Size 182Jm, C-Face Mounting, 3 Phase, OPSB Enclosure, 208-230/460 V, 60 Hz (JMM3212TX)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
182JM
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
5 Hp
Power Factor
89 %
Product Name
Close Coupled Pump
Product Net Depth / Length
21.625 in
Product Net Height
15.125 in
Product Net Weight
55 lb
Product Net Width
16.125 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
13 A | 12.2 A | 6.1 A
Rated Efficiency
85.50 %
Rated Speed
3450 r/min
Replaced Product ID (OLD)
7B35N835T481
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
0.88 in
Short Description
5 HP, 3600 RPM, Frame Size 182Jm, C-Face, 3 PH, OPSB, 208-230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
UNSPSC
26101107
Voltage Rating
208 V | 230 V | 460 V
Feature: Close-Coupled Pump configuration with OPSB enclosure; Business Impact: Simplifies installation, improves protection from dust and moisture, and reduces required space; Application: Ideal for compact pump assemblies in water handling and HVAC systems. The close-coupled design also enables faster alignment and reduced vibration, boosting overall system reliability. Feature: 182JM frame, C-face mounting, and 0.88 in shaft; Business Impact: Easier retrofits and robust mechanical interface with standard pump hardware; Application: Used in inline and end-suction pumps in industrial plants. Feature: 5 HP, 3450 r/min (60 Hz), 3-phase, 208-230/460 V; Business Impact: Direct-on-line startup reduces drive circuitry needs and maintenance; Application: Suitable for continuous-duty pumping in municipal and industrial facilities. Feature: IE1 efficiency (85.5%) and PF 0.89; Business Impact: Lower energy consumption and reduced running costs over the motor’s lifecycle; Application: Critical for utilities and process industries aiming for energy savings. Feature: OPSB enclosure and NEMA design B; Business Impact: Enhanced protection in challenging environments, meeting regulatory and safety requirements; Application: Outdoor or damp environments common in water/wastewater and chemical processing. The unit’s stock availability across multiple warehouses supports just-in-time procurement and rapid deployment.
