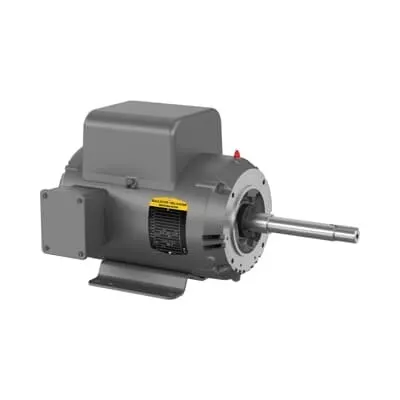

ABB 7BJPL1409T Pump Motor - 5HP, 1PH, 60Hz, OPEN
Part Number: 7BJPL1409T
Quick Summary
ABB 7BJPL1409T Pump Motor is a compact, 5 HP drive designed for close-coupled pumping in industrial processes and HVAC systems. This 230 V, single-phase motor delivers reliable torque with a direct-on-line start, helping minimize installation time and energy waste. A common plant challenge is maintaining uptime amid rugged environments; the JPL1409T addresses this with a robust open enclosure and a C-face, foot-mounted design that simplifies alignment and service. It carries CSA and UR certifications with reference to NEMA standards, supporting regulatory compliance and safe operation. With a rated 60 Hz, 3500 rpm, and a 1.15 service factor, this motor pairs with standard pumps and control panels, delivering predictable performance and straightforward procurement for project teams.
Product Information
Extended Description
7BJPL1409T ABB: Pump Motor 5 Hp 230 V (JPL1409T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
5HP,3500RPM,1PH,60HZ,184,JP,3634LC,
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6207 | Ball
Bearing NDE
6205 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
JPL1409T
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
L
Dimension Diagram
36LYE774: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
OPEN
Frame Material
Steel
Frame Size
184
Frequency (f)
60 Hz
Global Commercial Alias
JPL1409T
Gross Volume
5274.135 in³
Gross Weight
88 lb
Horsepower Rating UL/CSA
5.000 Hp
IC Class
OPEN
IDEA Granular Category Code (IGCC)
1320 >> Pump motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
5HP,3500RPM,1PH,60HZ,184,JP,3634LC,OPEN
Lubrication
Regreasable
Made To Order
No
Medium Description
Close Coupled Pump, 5 HP, 3600 RPM, Frame Size 184Jp, C-Face Mounting, 1 Phase, OPEN Enclosure, 230 V, 60 Hz (JPL1409T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
184JP
Motor Frame Suffix
JP
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
L
Number of Phases
1
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
5 Hp
Power Factor
96 %
Product Name
Close Coupled Pump
Product Net Depth / Length
21.625 in
Product Net Height
15.125 in
Product Net Weight
88 lb
Product Net Width
16.125 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
21.5 A
Rated Efficiency
80 %
Rated Speed
3500 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.88 in
Short Description
5 HP, 3600 RPM, Frame Size 184Jp, C-Face, 1 PH, OPEN, 230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101107
Voltage Code
H
Voltage Rating
230 V
Feature → Business Impact → Application: 5 HP, 230 V, 1PH, 60 Hz delivers robust starting torque with simple electrical requirements, reducing wiring complexity. Business Impact: simplifies panel design and lowers installation costs. Application: ideal for close-coupled pump configurations in water transfer and HVAC systems. Feature → Business Impact → Application: Direct On Line starting minimizes control hardware and accelerates setup. Application: reliable pump start in steady-load pumping without soft-start devices in light-industrial lines. Feature → Business Impact → Application: OPEN enclosure enables maximum cooling and easier field maintenance; reduces enclosure sealing concerns in exposed environments. Application: reliable in outdoor and semi-indoor pumps subject to ambient variability. Feature → Business Impact → Application: Frame 184JP, Foot Mounted, C-Face simplifies mounting and alignment with standard couplings; Application: retrofit and new-build projects using common pump standards. Feature → Business Impact → Application: Regreasable bearings (6207/6205) extend bearing life and reduce maintenance downtime; Application: ideal for continuous-duty pumping with interval lubrication schedules. Feature → Business Impact → Application: Efficiency 80%, PF 96%, Service Factor 1.15 enable energy savings and headroom for surges; Application: energy-conscious plant operation and reliable performance under variable loads. Feature → Business Impact → Application: Rated Current 21.5 A informs electrical feeder sizing and protective device selection; Application: seamless integration with standard electrical infrastructure.
