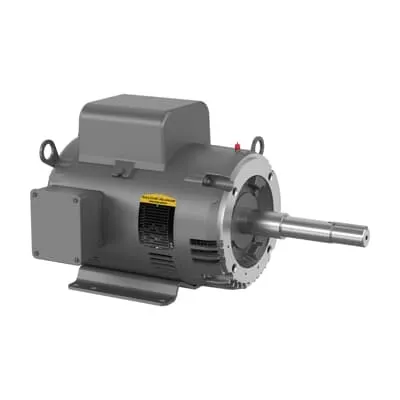

ABB 7BJPL1508T Pump Motor - 5HP, 60Hz OPSB Enclosure
Part Number: 7BJPL1508T
Quick Summary
ABB 7BJPL1508T pump motor delivers reliable, compact performance for close-coupled pumping in 1-phase, 230 V systems. This model targets OEMs and maintenance teams seeking a durable, easy-to-install solution for 5 HP applications at 60 Hz. By design, it reduces startup shocks, motor wear, and unplanned downtime common in plant pumps. With CSA/UR certification and a NEMA OPSB enclosure, plus a 213JP frame and C-face mounting, it meets strict industry standards while offering robust protection and broad compatibility across US-based warehouses. The motor supports predictable maintenance planning and rapid replenishment, enabling tighter project schedules and improved uptime for pumping loops in manufacturing, water treatment, and agricultural processing.
Product Information
Extended Description
7BJPL1508T ABB: Pump Motor 5 Hp 230 V (JPL1508T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
5HP,1725RPM,1PH,60HZ,213JP,3727L,OP
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6309 | Ball
Bearing NDE
6206 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
JPL1508T
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
L
Dimension Diagram
37LYK239: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
OPSB
Frame Material
Steel
Frame Size
213
Frequency (f)
60 Hz
Global Commercial Alias
JPL1508T
Gross Volume
7192.91 in³
Gross Weight
117 lb
Horsepower Rating UL/CSA
5.000 Hp
IC Class
OPSB
IDEA Granular Category Code (IGCC)
1320 >> Pump motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
5HP,1725RPM,1PH,60HZ,213JP,3727L,OPSB,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
Close Coupled Pump, 5 HP, 1800 RPM, Frame Size 213Jp, C-Face Mounting, 1 Phase, OPSB Enclosure, 230 V, 60 Hz (JPL1508T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
213JP
Motor Frame Suffix
JP
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
L
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
5 Hp
Power Factor
78 %
Product Name
Close Coupled Pump
Product Net Depth / Length
26.625 in
Product Net Height
16.25 in
Product Net Weight
117 lb
Product Net Width
16.625 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
27 A
Rated Efficiency
77 %
Rated Speed
1725 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.25 in
Short Description
5 HP, 1800 RPM, Frame Size 213Jp, C-Face, 1 PH, OPSB, 230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101107
Voltage Code
G
Voltage Rating
230 V
Feature → Business Impact → Application: 5 HP, 230 V, 1PH, 60 Hz rating provides robust pumping capability from standard plant power, reducing wiring complexity and controller costs. Application: Ideal for retrofit projects and OEM pump assemblies where space and wiring are at a premium. 1725 r/min with 213JP frame offers predictable performance in a compact footprint. Application: Close-coupled pump configurations in water transfer, irrigation, and HVAC loops where space is limited. Direct On Line starting with 1-phase operation enables fast, simple startup, lowering control hardware needs. Application: Light-duty pumping and quick-install scenarios in manufacturing lines. OPSB enclosure with regreasable bearings enhances protection and maintenance efficiency. Application: Pumps in dirty or dusty environments requiring longer bearing life with routine lubrication. Foot-mounted with C-face mounting provides flexible alignment. Application: Retrofit projects and new builds needing robust mechanical interfacing. 27 A rated current and 77% efficiency support reliable operation and energy control. Application: Continuous pumping in facilities planning for electrical load and energy savings.
