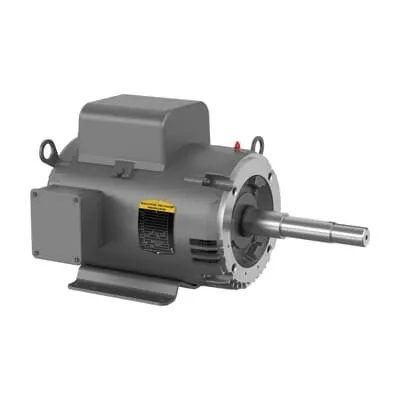

ABB 7BJPL1509T Pump Motor - 7.5HP, 230V, 1PH, CSA UR
Part Number: 7BJPL1509T
Quick Summary
ABB 7BJPL1509T Pump Motor is a reliable 7.5 HP close‑coupled pump solution designed for 230 V single‑phase, 60 Hz systems. It delivers robust performance in commercial and light industrial pumping scenarios while minimizing downtime and maintenance costs. The motor carries CSA and UR listings and aligns with NEMA design principles, helping you meet regulatory requirements and extend component lifecycles. With a 3,450 rpm nominal speed, open enclosure, and a 60‑minute duty rating, this unit balances power and reliability. For procurement teams, standardized design, stock availability across multiple warehouses, and clear lead times translate into faster project execution and predictable total cost of ownership.
Product Information
Extended Description
7BJPL1509T ABB: Pump Motor 7.5 Hp 230 V (JPL1509T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
7.5HP,3450RPM,1PH,60HZ,213JP,3729L,
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6309 | Ball
Bearing NDE
6206 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
JPL1509T
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
L
Dimension Diagram
37LYE285: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
OPEN
Frame Material
Steel
Frame Size
213
Frequency (f)
60 Hz
Global Commercial Alias
JPL1509T
Gross Volume
7192.91 in³
Gross Weight
121 lb
Horsepower Rating UL/CSA
7.500 Hp
IC Class
OPEN
IDEA Granular Category Code (IGCC)
1320 >> Pump motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
7.5HP,3450RPM,1PH,60HZ,213JP,3729L,OPEN
Lubrication
Regreasable
Made To Order
No
Medium Description
Close Coupled Pump, 7.5 HP, 3600 RPM, Frame Size 213Jp, C-Face Mounting, 1 Phase, OPEN Enclosure, 230 V, 60 Hz (JPL1509T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
213JP
Motor Frame Suffix
JP
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
L
Number of Phases
1
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
7.5 Hp
Power Factor
82 %
Product Name
Close Coupled Pump
Product Net Depth / Length
26.625 in
Product Net Height
16.25 in
Product Net Weight
121 lb
Product Net Width
16.625 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
37 A
Rated Efficiency
81 %
Rated Speed
3450 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.25 in
Short Description
7.5 HP, 3600 RPM, Frame Size 213Jp, C-Face, 1 PH, OPEN, 230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101107
Voltage Code
G
Voltage Rating
230 V
Feature → Business Impact → Application: The 7.5 HP, 230 V, 60 Hz single‑phase configuration delivers strong starting torque and efficient operation, reducing energy consumption and operating costs in pumping applications. This translates to measurable throughput gains for close‑coupled pump systems and lower total cost of ownership over the motor’s life span. The PF of 82% and efficiency of 81% provide dependable power delivery for medium‑duty, continuous operation while staying within acceptable utility tariffs and heat management budgets. In practice, engineers see improved system reliability and reduced thermal stress in water handling and chemical processing lines. Feature → Business Impact → Application: Frame size 213JP, steel construction, and a C‑Face drive end flange support straightforward installation and vibration control, enabling horizontal mounting in compact pump configurations and simplifying alignment with existing piping. Open enclosure improves cooling and service access, enhancing maintenance speed and reducing downtime in field installations. Feature → Business Impact → Application: Regreasable bearings (6309 | Ball, 6206 | Ball) and a 60‑minute duty time enable longer service intervals and predictable lubrication cycles, lowering maintenance costs while preserving bearing life in high‑load pumping duties. The direct‑on‑line starting method eliminates soft‑start equipment and reduces control cabinet complexity, speeding up commissioning and startup. Feature → Business Impact → Application: Stocked at multiple warehouses (0 day lead time) and a catalog number (JPL1509T) support rapid procurement, standardization across projects, and resilience against supply chain disruptions. Certificate alignment with CSA/UR and NEMA design code L reinforces compliance and interoperability, giving engineering teams confidence when specifying this motor for open‑set or close‑coupled pump installations that must meet industry standards.
