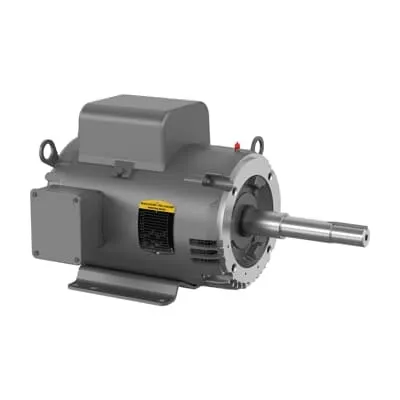

ABB 7BJPL1510T Pump Motor - 1Ø, 60 Hz, CSA/UR
Part Number: 7BJPL1510T
Quick Summary
ABB 7BJPL1510T Pump Motor is a close-coupled, 7.5 HP unit for industrial pumping. It addresses common downtime and wiring complexity with straightforward 230 V, 60 Hz single-phase operation and a rugged 215JP frame. Certified to CSA and UR for safe electrical installation, with a NEMA design code L and reliable 60 Hz performance, it supports predictable maintenance and long service life. This motor is well-suited for OEMs and service teams seeking a readily compatible, open-enclosure pump solution that blends ease of install with solid operating efficiency.
Product Information
Extended Description
7BJPL1510T ABB: Pump Motor 7.5 Hp 230 V (JPL1510T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
7.5HP,1750RPM,1PH,60HZ,3740LC,N
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6309 | Ball
Bearing NDE
6206 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
JPL1510T
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
L
Dimension Diagram
37LYM341: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
OPEN
Frame Material
Steel
Frame Size
215
Frequency (f)
60 Hz
Global Commercial Alias
JPL1510T
Gross Volume
7561.383 in³
Gross Weight
143 lb
Horsepower Rating UL/CSA
7.500 Hp
IC Class
OPEN
IDEA Granular Category Code (IGCC)
1320 >> Pump motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
7.5HP,1750RPM,1PH,60HZ,3740LC,N
Lubrication
Regreasable
Made To Order
No
Medium Description
Close Coupled Pump, 7.5 HP, 1800 RPM, Frame Size 215Jp, C-Face Mounting, 1 Phase, OPEN Enclosure, 230 V, 60 Hz (JPL1510T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
215JP
Motor Frame Suffix
JP
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
L
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
7.5 Hp
Power Factor
87 %
Product Name
Close Coupled Pump
Product Net Depth / Length
26.375 in
Product Net Height
17.375 in
Product Net Weight
143 lb
Product Net Width
16.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
33 A
Rated Efficiency
85.50 %
Rated Speed
1750 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.25 in
Short Description
7.5 HP, 1800 RPM, Frame Size 215Jp, C-Face, 1 PH, OPEN, 230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101107
Voltage Code
G
Voltage Rating
230 V
Feature: 7.5 HP, 230 V, 60 Hz, single-phase operation. Business Impact: Delivers sufficient power for close-coupled pump applications while simplifying electrical wiring and control wiring, reducing installation time and energy losses. Application: Water transfer, transfer mains, and general pumping tasks in indoor plant rooms. Feature: Open enclosure (OPEN) with ambient temp up to 40 C. Business Impact: Improves cooling in controlled environments, lowers enclosure costs, and minimizes thermal stress during startup. Application: Industrial pump installations in ventilation-friendly spaces. Feature: Frame size 215JP with C-Face and foot mounting. Business Impact: Enables straightforward retrofit and alignment with standard baseplates, reducing mounting time and risk of misalignment. Application: Retrofit projects and OEM pump assemblies using Baldor-Reliance catalogs. Feature: Direct On Line starting. Business Impact: Eliminates soft-start hardware, cutting BOM complexity and startup time while maintaining reliable startup torque. Application: Systems requiring immediate fluid movement on demand. Feature: Bearings and lubrication data (6309 Ball, Regreasable). Business Impact: Extends motor life and reduces maintenance cycles through serviceable lubrication intervals. Application: High-load pump duty with periodic maintenance checks. Feature: Efficiency and performance metrics (Rated Speed 1750 r/min, Rated Efficiency 85.50%, Power Factor 87%). Business Impact: Supports energy savings and predictable thermal management, aiding compliance with energy audits. Application: Continuous duty pump systems in manufacturing lines. The combination of 1-phase 230 V supply, standard 215JP frame, and open enclosure ensures compatibility with existing pump kits and minimizes total installed cost.
Get a Quick Quote for a ABB 7BJPL1510T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BJPL1510T?
Enquire Now
FAQs
Yes. The 7BJPL1510T utilizes a 215JP frame with C-Face mounting and is designed for foot-mounted installations. It aligns with standard Baldor-Reliance catalog configurations, enabling straightforward retrofits and quick integration with existing pump assemblies.
The motor operates at 230 V with 60 Hz frequency, is single-phase (1P), and delivers 7.5 HP with a rated speed of 1750 r/min. It features a 1-phase DOL starting method and a 4-pole design suitable for continuous pump duty.
Ideal for close-coupled pump systems handling water transfer and general liquid handling in controlled indoor environments. Its open enclosure supports efficient cooling, while the 1P 230 V configuration suits light to moderate flow applications in OEM and service contractor setups.
The 7BJPL1510T carries CSA and UR certifications, ensuring safe electrical installation and compliance with common US manufacturing standards. It also aligns with the NEMA design code L for reliability in residential and light-industrial pumping scenarios.
With regreasable bearings and a robust frame, maintenance intervals can be extended, reducing downtime and service costs. The open enclosure aids cooling and inspection, while the standard frame size and mounting reduce spare parts inventory and parts lead times, delivering a favorable total cost of ownership.
