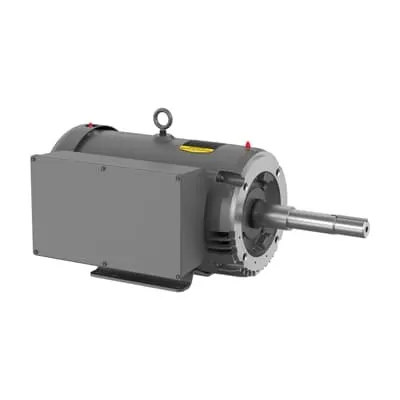

ABB 7BJPL1512T Pump Motor - 10 HP, 1PH, 60 Hz, ODTF
Part Number: 7BJPL1512T
Quick Summary
ABB 7BJPL1512T pump motor delivers reliable torque for close-coupled pump systems in industrial processing and water handling. Maintenance teams often wrestle with mismatched voltage, startup reliability, and downtime during motor replacements. This model aligns with CSA and UR listings and follows a NEMA-design approach, while maintaining a 10 HP rating at 60 Hz in a 1-phase, 230 V configuration. With a steel frame (215JP), C-face drive end, and the ODTF enclosure, installation is streamlined on standard pump flanges. Stocked at multiple warehouses with 0-day lead time, the 7BJPL1512T helps meet tight service levels and reduce project downtime in manufacturing and processing environments. This combination of rugged construction and readily available stock supports predictable performance and faster procurement across industrial facilities.
Product Information
Extended Description
7BJPL1512T ABB: Pump Motor 10 Hp 230 V (JPL1512T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
10HP,1725RPM,1PH,60HZ,215JP,3744LC,
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6309 | Ball
Bearing NDE
6206 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
JPL1512T
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
L
Dimension Diagram
37LYH940: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
ODTF
Frame Material
Steel
Frame Size
215
Frequency (f)
60 Hz
Global Commercial Alias
JPL1512T
Gross Volume
7561.383 in³
Gross Weight
142 lb
Horsepower Rating UL/CSA
10.000 Hp
IC Class
ODTF
IDEA Granular Category Code (IGCC)
1320 >> Pump motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
10HP,1725RPM,1PH,60HZ,215JP,3744LC,ODTF
Lubrication
Regreasable
Made To Order
No
Medium Description
Close Coupled Pump, 10 HP, 1800 RPM, Frame Size 215Jp, C-Face Mounting, 1 Phase, ODTF Enclosure, 230 V, 60 Hz (JPL1512T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
215JP
Motor Frame Suffix
JP
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
L
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
10 Hp
Power Factor
94 %
Product Name
Close Coupled Pump
Product Net Depth / Length
26.375 in
Product Net Height
17.375 in
Product Net Weight
142 lb
Product Net Width
16.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
41 A
Rated Efficiency
84 %
Rated Speed
1725 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.25 in
Short Description
10 HP, 1800 RPM, Frame Size 215Jp, C-Face, 1 PH, ODTF, 230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101107
Voltage Code
F
Voltage Rating
230 V
Feature: Close-coupled pump design with 10 HP at 1725 RPM in a 1PH, 230 V, 60 Hz configuration → Business Impact: Reduces coupling misalignment, simplifies installation, and enables immediate commissioning with minimal auxiliary equipment → Application: Ideal for compact close-coupled pump assemblies in water treatment, chemical processing, and manufacturing lines. Feature: High efficiency 84% rated efficiency and 94% power factor → Business Impact: Lowers operating costs and electrical stress on drives, improving system reliability and energy management → Application: Suitable for continuous-duty pump service in demanding industrial environments. Feature: Rugged ODTF enclosure and steel frame (215JP) with C-face mounting → Business Impact: Enhanced protection against dust and debris, longer motor life, easier mounting and service access → Application: Preferred where harsh plant conditions and vertical space constraints exist. Feature: Regreasable bearings (6309 | Ball; 6206 | Ball) → Business Impact: Reduced maintenance intervals and lower total cost of ownership through easier bearing lubrication → Application: Beneficial for pumps with frequent cycling or heavy start/stop duty. Feature: Direct On Line starting, continuous duty (60 Min) design → Business Impact: Simplifies electrical control designs, minimizes soft-start equipment, and accelerates startup → Application: Effective for single-phase pump systems requiring immediate torque at startup. Feature: Stock availability and fast fulfillment (0 day lead time; multiple warehouses) → Business Impact: Minimizes downtime, ensures project timelines, and improves procurement predictability → Application: Critical for OEMs and maintenance teams supporting uptime targets in process industries.
