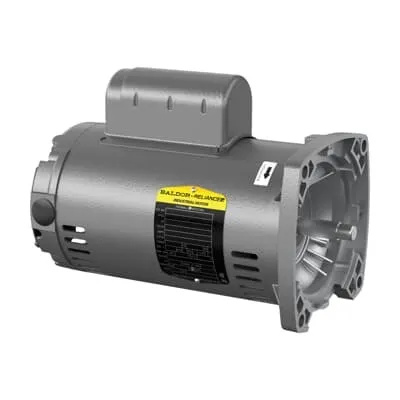

ABB 7BJSL525A Pump Motor - 1HP, 115V, NEMA, 60Hz
Part Number: 7BJSL525A
Quick Summary
The ABB 7BJSL525A pump motor is designed for 1 HP, 115 V single-phase pumping tasks in industrial water systems. This model minimizes downtime with direct-on-line starting and a compact footprint that eases replacement and alignment in retrofit or new installations. It carries NEMA design compatibility and CSA/UR certification, plus RoHS compliance, supporting global procurement and regulatory adherence. The motor features a 56Y frame, 3450 rpm (2-pole) with an OPEN enclosure, enabling straightforward installation in horizontal mounting configurations while maintaining reliable operation. For maintenance planners and procurement teams, this motor delivers consistent performance with readily available stock across multiple warehouse locations, supporting faster lead times and reduced total cost of ownership.
Product Information
Extended Description
7BJSL525A ABB: Pump Motor 1 Hp 115 V (JSL525A)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1HP,3450RPM,1PH,60HZ,56Y,3424L,OPEN
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6203, Ball
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
JSL525A
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
34LYM226: Dimension Sheet
Direction of Rotation
CW Clockwise
Drive End Flange Type
Square
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
OPEN
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
JSL525A
Gross Volume
2110.969 in³
Gross Weight
30 lb
Horsepower Rating UL/CSA
1.000 Hp
IC Class
OPEN
IDEA Granular Category Code (IGCC)
1320 >> Pump motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
B
Invoice Description
1HP,3450RPM,1PH,60HZ,56Y,3424L,OPEN,F1,N
Lubrication
Regreasable
Made To Order
No
Medium Description
Pump - Misc, 1 HP, 3600 RPM, Frame Size 56Y, Square Mounting, 1 Phase, OPEN Enclosure, 115/230 V, 60 Hz (JSL525A)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
56Y
Mounting Orientation
Horizontal
Mounting Position
F1
Number of Phases
1
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
1 Hp
Power Factor
74 %
Product Name
Pump - Misc
Product Net Depth / Length
16.5 in
Product Net Height
11.125 in
Product Net Weight
30 lb
Product Net Width
11.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
12.6 A | 6.3 A
Rated Efficiency
70 %
Rated Speed
3450 r/min
RoHS Information
RoHS Compliant
Selling Unit of Measure
piece
Service Factor
1.40
Service Factor Percentage
1.40 %
Shaft Diameter
0.63 in
Short Description
1 HP, 3600 RPM, Frame Size 56Y, Square, 1 PH, OPEN, 115/230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101107
Voltage Code
N
Voltage Rating
115 V | 230 V
Feature → Business Impact → Application. 1HP, 115V single-phase operation reduces wiring complexity and energy waste, enabling cost-effective pump control for small to mid-size fluid handling systems. This configuration supports straightforward direct-on-line starting, reducing soft-start hardware needs and minimizing installation time in water transfer and cooling system pumps. The 56Y frame and horizontal mounting orientation (F1) simplify retrofits and replacements in existing installations, lowering downtime and field labor costs. The OPEN enclosure improves cooling and serviceability, extending motor life in open environments and reducing maintenance cycles for municipal and industrial pumping applications. With a 3450 r/min rating and 60 Hz operation, this motor delivers predictable pump head performance for centrifugal pumps, irrigation, and chemical dosing systems. RoHS compliance and CSA/UR certification ensure global sourcing and regulatory readiness, reducing supplier risk and compliance overhead. The motor’s weight (~30 lb) and compact footprint support easier handling and installation, while the 0.63 in shaft diameter ensures compatibility with common pump couplings. Industry-specific context: in food-and-beverage, water treatment, and process cooling, the combination of reliability, availability, and standardized frame size accelerates project timelines and total cost of ownership savings.
Get a Quick Quote for a ABB 7BJSL525A
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BJSL525A?
Enquire Now
FAQs
The 7BJSL525A uses a 56Y frame with horizontal mounting (Mounting Orientation: Horizontal, Mounting Position: F1) and a square drive end flange. It supports open enclosure for maximum cooling and straightforward retrofits into existing pump assemblies.
This is a 1-phase, 1 HP motor rated at 115 V (also supports 230 V) with a 60 Hz frequency and 3450 rpm (2-pole). Rated current is 12.6 A (6.3 A under certain loads), service factor 1.40, and insulation class B, suitable for continuous duty in pump applications.
Yes. With a 56Y frame, direct-on-line starting, and a 3450 r/min speed at 60 Hz, this motor provides reliable start-up and stable flow for centrifugal pump heads in water treatment and irrigation setups, while meeting NEMA and RoHS requirements.
The motor is CSA and UR certified and RoHS compliant, with NEMA standards referenced in the design. This validation supports global sourcing and regulatory compliance for multi-site projects.
Lead time is listed as 0 day, and stock is available across multiple warehouses (e.g., EGAUT001EXPU, GBINS001EXPU, SGIND004EXPU, USABB014EXPU). This enables rapid sourcing and minimized downtime for replacements and routine maintenance.
