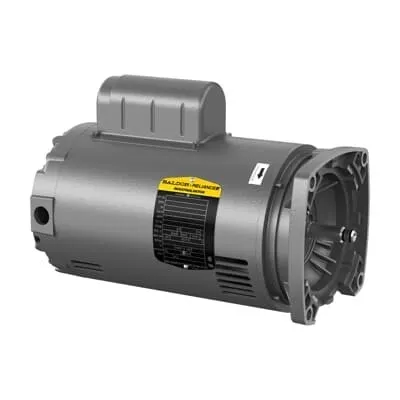

ABB 7BJSL725A Washdown Motor - CSA UR
Part Number: 7BJSL725A
Quick Summary
ABB 7BJSL725A is a washdown motor delivering 2 HP at 115 V for reliable pump and conveyor duty. In facilities with frequent washdowns, equipment must resist corrosion, meet sanitation requirements, and minimize downtime. It carries CSA/UR certification, RoHS compliance, and a rugged OPSB enclosure to withstand harsh environments. Designed for clean-in-place pump systems and food-processing lines, this motor integrates with 1-phase 60 Hz power for rapid deployment and predictable maintenance cycles. Manufactured in the United States, it leverages a 56YZ frame, 2 HP rating, 3450 RPM, and a 115/230 V dual voltage option. That combination helps reduce spare-part inventories, simplify installation, and improve uptime in process lines and water-treatment facilities.
Product Information
Extended Description
7BJSL725A ABB: Washdown Motor 2 Hp 115 V (JSL725A)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
2HP,3450RPM,1PH,60HZ,3528L,N
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6203, Ball
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
JSL725A
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
L
Dimension Diagram
35LYE2011: Dimension Sheet
Direction of Rotation
CW Clockwise
Drive End Flange Type
Square
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
OPSB
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
JSL725A
Gross Volume
3496.049 in³
Gross Weight
47 lb
Horsepower Rating UL/CSA
2.000 Hp
IC Class
OPEN
IDEA Granular Category Code (IGCC)
1320 >> Pump motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
B
Invoice Description
2HP,3450RPM,1PH,60HZ,3528L,N
Lubrication
Regreasable
Made To Order
No
Medium Description
Pump - Misc, 2 HP, 3600 RPM, Frame Size 56Yz, Square Mounting, 1 Phase, OPSB Enclosure, 115/230 V, 60 Hz (JSL725A)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
56YZ
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
L
Number of Phases
1
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
2 Hp
Power Factor
81 %
Product Name
Pump - Misc
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
47 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
22 A | 11 A
Rated Efficiency
74 %
Rated Speed
3450 r/min
Replaced Product ID (OLD)
7B35E2011L467G1
RoHS Information
RoHS Compliant
Selling Unit of Measure
piece
Service Factor
1.20
Service Factor Percentage
1.20 %
Shaft Diameter
0.63 in
Short Description
2 HP, 3600 RPM, Frame Size 56Yz, Square, 1 PH, OPSB, 115/230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101107
Voltage Code
J
Voltage Rating
115 V | 230 V
Feature: OPSB enclosure combined with washdown design protects internal components from moisture and chemical exposure. Business Impact: Increases reliability and reduces corrosion-related maintenance, extending service intervals. Application: Ideal for CIP pumps and conveyor drives in food and beverage processing and water-treatment lines. Feature: 1-phase 115/230 V operation with 60 Hz compatibility. Business Impact: Simplifies electrical integration, lowers control-panel footprint, and reduces wiring complexity. Application: Plant-wide motor deployments across standard 115 V distribution networks. Feature: 2 HP rating with 3450 RPM and direct-on-line starting. Business Impact: Delivers robust startup torque and steady speed for continuous-duty loads, improving process stability. Application: Pumps, fans, and light-duty conveyors in continuous operation. Feature: Regreasable bearings (6203) and steel frame. Business Impact: Reduces long-term maintenance costs and extends bearing life in washdown environments. Application: Long-life drive train for high-use industrial equipment. Feature: Frame 56YZ, horizontal mounting (F1), square drive end flange. Business Impact: Eases retrofit and replacement in existing equipment, minimizing downtime during service. Application: Replacements in legacy pump-motor assemblies and mixer drives. Feature: CSA/UR certification and RoHS compliance. Business Impact: Regulatory risk reduction and safer material handling, ensuring compliance with industry standards. Application: Regulated food-processing and beverage facilities requiring traceable, compliant equipment. Industry context: In pump and process lines, these attributes translate to higher uptime, predictable maintenance cycles, and simplified spare-parts planning, enabling maintenance teams to optimize downtime windows and inventory management for MRO budgets.
Get a Quick Quote for a ABB 7BJSL725A
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BJSL725A?
Enquire Now
FAQs
Yes. The 7BJSL725A supports 115/230 V single-phase operation at 60 Hz and uses a Direct On Line starting method. Its OPSB enclosure and 56YZ frame design fit common industrial layouts, enabling straightforward retrofits and quick commissioning in control panels and machinery saddles.
Key specs include 2 HP output, 3450 r/min synchronous speed, 1-phase operation at 115/230 V, and 60 Hz. The motor also features a 81% power factor, a RoHS-compliant design, and regreasable bearings (6203) for extended service life in washdown environments.
Absolutely. The 7BJSL725A is engineered for clean-in-place lines and pump/motor drives in food processing and beverage facilities. With an OPSB enclosure, 56YZ frame, and direct-on-line starting, it provides reliable performance in continuous-use conveyor and pump applications.
The motor is CSA and UR listed and RoHS compliant, delivering regulatory confidence and safer material handling in regulated industries. Its design also aligns with NEMA design standards (Code L) and Open IC class, supporting broader compliance in diverse plant environments.
Plan for periodic bearing lubrication due to regreasable 6203 bearings and inspect the OPSB enclosure seals during washdown cycles. The unit’s 0-day lead time and stock availability across multiple warehouses support rapid replacements, minimizing downtime and improving total cost of ownership (TCO) in high-use process lines.
