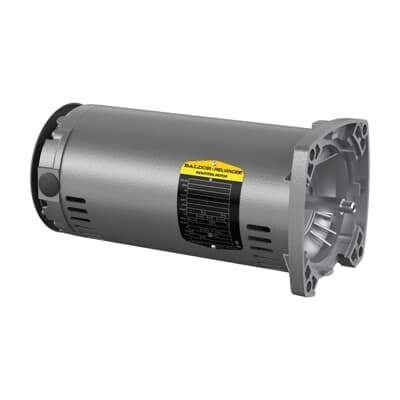

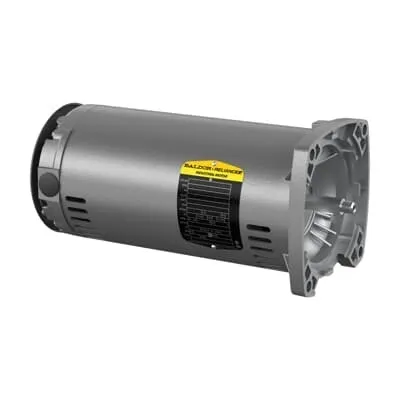

ABB 7BJSM3107 Washdown Motor - 0.5HP, 230V, CSA/UR
Part Number: 7BJSM3107
Quick Summary
ABB 7BJSM3107 Washdown Motor delivers 0.5 HP, 230 V performance for reliable pump and conveyor tasks in washdown environments. This design addresses the common challenge of corrosion and downtime in wet processing lines by combining robust mechanical design with a maintenance-friendly lubrication program. The unit aligns with North American standards through CSA and UR certifications and follows NEMA design principles for dependable operation in open-enclosure configurations. With 60 Hz compatibility and a 56YZ frame, it provides a solid, ready-to-supply solution for OEMs and service teams seeking consistent, long-life motor performance in food & beverage, water treatment, and industrial pumping applications.
Product Information
Extended Description
7BJSM3107 ABB: Washdown Motor 0.5 Hp 230 V (JSM3107)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.5HP,3450RPM,3PH,60HZ,56YZ,3413M,OP
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6203, Ball
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
JSM3107
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015100
Design
B
Dimension Diagram
34LYL408: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Square
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt | Undefined Efficiency
Electrical Data
Enclosure Type
OPEN
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
JSM3107
Gross Volume
2110.969 inÂł
Gross Weight
21 lb
Horsepower Rating UL/CSA
0.500 Hp
IC Class
OPEN
IDEA Granular Category Code (IGCC)
1320 >> Pump motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
B
Invoice Description
.5HP,3450RPM,3PH,60HZ,56YZ,3413M,OPEN,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
Pump - Misc, 0.5 HP, 3600 RPM, Frame Size 56Yz, Square Mounting, 3 Phase, OPEN Enclosure, 230/460 V, 60 Hz (JSM3107)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
56YZ
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
0.5 Hp
Power Factor
65 %
Product Name
Pump - Misc
Product Net Depth / Length
16.5 in
Product Net Height
11.125 in
Product Net Weight
21 lb
Product Net Width
11.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
2.4 A | 1.2 A
Rated Efficiency
70 %
Rated Speed
3450 r/min
Selling Unit of Measure
piece
Service Factor
1.60
Service Factor Percentage
1.60 %
Shaft Diameter
0.63 in
Short Description
0.5 HP, 3600 RPM, Frame Size 56Yz, Square, 3 PH, OPEN, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101107
Voltage Code
N
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: 0.5 HP, 230 V, 3-phase operation at 60 Hz; ensures efficient power usage and predictable torque for small pumps and conveyors, reducing energy waste while maintaining throughput in continuous-process lines. In practice, this enables operators to meet production targets with stable startup current and minimal voltage sensitivity. Feature → Application-specific compatibility; Frame Size 56YZ with Footless base simplifies mounting in compact machinery, enabling faster installation and retrofit in existing equipment without heavy structural changes. Feature → Lubrication: Regreasable bearings (6203, Ball) provide extended service intervals and easier maintenance, lowering lifecycle maintenance costs in high-duty washdown environments. Feature → Enclosure Type OPEN; suits open-motor installations common in food processing and beverage handling, facilitating heat dissipation and straightforward cleaning routines. Feature → Service Factor 1.60 and 2.4 A / 1.2 A rated current; offer a comfortable margin for variable loads, improving reliability in constant-cycle pumps and mixers. Feature → 3450 r/min rated speed and 3600 r/min synchronous speed; deliver responsive performance for belt-driven pumps and small fans, minimizing belt wear and noise in compact OEM packages. Feature → 56YZ frame and 0.63 in shaft diameter; ensure robust coupling options and compatibility with standard pump and fan assemblies used in industrial washdown lines. Feature → 3-phase design with 230/460 V voltage rating; supports flexible supply configurations across US and global facilities, reducing spare parts complexity and improving procurement efficiency. Feature → CSA | UR certifications and NEMA design compliance; provide regulatory alignment for North American facilities and safer, standards-driven integration with existing control systems. Feature → Open enclosure and regreasable lubrication; enable straightforward cleaning cycles and maintenance scheduling, reducing lifecycle downtime and extending motor life in tough washdown environments.
