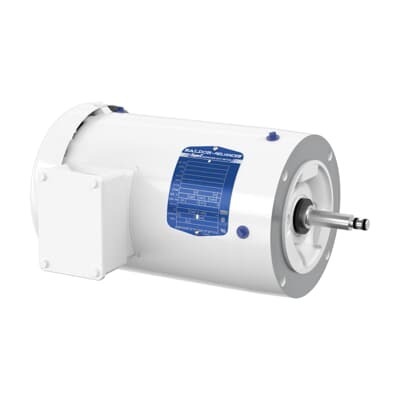

ABB JWDM3463 Washdown Motor - 3PH, 60Hz TEFC
Part Number: 7BJWDM3463
Quick Summary
JWDM3463 washdown motor delivers 0.75 HP power for sanitary process lines like food & beverage, pharma, and packaging. Operators face sanitation downtime and maintenance challenges when motors aren’t designed for washdown or easy cleaning, which can disrupt production. This unit is CSA | UR listed, RoHS compliant, and features a TEFC enclosure with a 56J frame for rugged, compliant service. With 0 day lead time and stock across multiple US and international warehouses, you can minimize downtime while meeting quality standards. Designed for 3-phase, 60 Hz operation and direct-on-line starting, it supports reliable performance in demanding environments.
Product Information
Extended Description
7BJWDM3463 ABB: Washdown Motor 0.75 Hp 208 V (JWDM3463)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.75HP,3450RPM,3PH,60HZ,56J,3514M,TE
Ambient Temperature
40 °C
Bearing
6205, Sealed Bearing
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
JWDM3463
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015100
Design
B
Dimension Diagram
35LYE2235: Dimension Sheet
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt | Undefined Efficiency
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
JWDM3463
Gross Volume
3496.049 in³
Gross Weight
33 lb
Horsepower Rating UL/CSA
0.750 Hp
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
F
Invoice Description
.75HP,3450RPM,3PH,60HZ,56J,3514M,TEFC,F1
Made To Order
No
Medium Description
White Washdown, 0.75 HP, 3600 RPM, Frame Size 56J, C-Face Mounting, 3 Phase, TEFC Enclosure, 208-230/460 V, 60 Hz (JWDM3463)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
56J
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
0.75 Hp
Power Factor
74 %
Product Name
White Washdown
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
33 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
3 A | 2.8 A | 1.4 A
Rated Efficiency
68 %
Rated Speed
3450 r/min
Replaced Product ID (OLD)
7B35E2235-0081G1
RoHS Information
RoHS Compliant
Selling Unit of Measure
piece
Service Factor
1.50
Service Factor Percentage
1.50 %
Shaft Diameter
0.63 in
Short Description
0.75 HP, 3600 RPM, Frame Size 56J, C-Face, 3 PH, TEFC, 208-230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
208 V | 230 V | 460 V
Feature → Business Impact → Application: The TEFC enclosure and white washdown finish protect internal components from moisture and cleaning agents, reducing corrosion risk and extending motor life in wet environments. This translates to lower maintenance costs and fewer unscheduled outages on food processing and pharmaceutical lines. Application: Ideal for sanitary production lines where consistent washdown readiness is critical. Feature → Business Impact → Application: The 56J frame with C-face drive end flange and horizontal mounting simplifies installation in compact or retrofit spaces, enabling faster commissioning and easier alignment with existing conveyors or pumps. Application: Used in packaging and material handling systems that demand quick, tool-free mounting and robust support. Feature → Business Impact → Application: Efficiency of 68% and a 74% power factor at 0.75 HP delivers meaningful energy savings over long-running shifts, supporting cost-of-ownership reduction across industrial facilities. Application: Suitable for continuous-duty operations in manufacturing environments where energy efficiency matters. Feature → Business Impact → Application: RoHS compliance, F insulation class, and NEMA Design B specification enhance regulatory alignment and reliability, improving uptime guarantees and service planning. Application: Critical for customer sites with strict compliance and performance requirements, including regulated food and pharma plants. Feature → Business Impact → Application: 208/230/460 V voltage rating with 3-phase, 60 Hz operation offers flexibility for multi-volt networks and easier procurement across global sites. Application: Applies to multinational facilities and systems integration projects that require uniform motor performance across regions.
