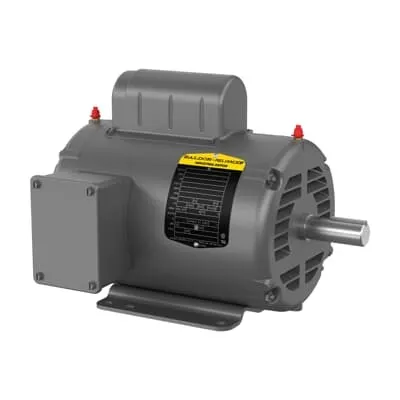

ABB 7BL1313T General Purpose Motor Open - CSA/UR
Part Number: 7BL1313T
Quick Summary
ABB 7BL1313T General Purpose Motor Open is a reliable 1.5 HP, 115/230 V single‑phase motor designed for light industrial equipment such as conveyors, pumps, and fans. It helps reduce procurement and installation delays by aligning with standard frames and power requirements. With CSA/UR certification, RoHS compliance, and NEMA design compatibility, this motor supports regulatory readiness and interoperability across OEMs and service partners. Stocked across multiple warehouses, it enables faster project ramp‑ups and lowered total cost of ownership through predictable performance and easy maintenance.
Product Information
Extended Description
7BL1313T ABB: General Purpose Motor 1.5 Hp 115 V (L1313T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1.5HP,3450RPM,1PH,60HZ,143T,3520L,O
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6205 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
L1313T
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
L
Dimension Diagram
35LYT876: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
OPEN
Frame Material
Steel
Frame Size
143
Frequency (f)
60 Hz
Global Commercial Alias
L1313T
Gross Volume
2110.969 in³
Gross Weight
36 lb
Horsepower Rating UL/CSA
1.500 Hp
IC Class
OPEN
IDEA Granular Category Code (IGCC)
1329 >> Single phase motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
B
Invoice Description
1.5HP,3450RPM,1PH,60HZ,143T,3520L,OPEN
Lubrication
Regreasable
Made To Order
No
Medium Description
General Purpose 1PH Open, 1.5 HP, 3600 RPM, Frame Size 143T, Standard Mounting, 1 Phase, OPEN Enclosure, 115/230 V, 60 Hz (L1313T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
143T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
L
Number of Phases
1
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
1.5 Hp
Power Factor
78 %
Product Name
General Purpose 1PH Open
Product Net Depth / Length
16.5 in
Product Net Height
11.125 in
Product Net Weight
36 lb
Product Net Width
11.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
17.8 A | 8.9 A
Rated Efficiency
70 %
Rated Speed
3450 r/min
Replaced Product ID (OLD)
7B35T876X958
RoHS Information
RoHS Compliant
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.88 in
Short Description
1.5 HP, 3600 RPM, Frame Size 143T, Standard, 1 PH, OPEN, 115/230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101116
Voltage Code
J
Voltage Rating
115 V | 230 V
Open enclosure and a standard 143T frame enable straightforward installation and reliable cooling in compact footprints, reducing mounting time and ensuring compatibility with common baseplates in light‑industrial lines like conveyors and fans. Flexible 115/230 V operation at 60 Hz minimizes wiring complexity and transformer needs, supporting rapid integration with existing panels and control systems. Regreasable bearings (6205 and 6203 Ball) and regular lubrication cycles extend motor life in demanding environments, lowering maintenance costs and downtime. The rated speed of 3450 r/min, 1.5 HP, and a service factor of 1.15 deliver consistent torque for start‑stop loads while maintaining energy efficiency near 70%, supporting operational reliability on daily runs. Certifications and design features—RoHS, CSA/UR, and NEMA design alignment—facilitate supplier qualification and compliance across multinational sites. With immediate warehouse availability and 0‑day lead time, engineers can accelerate project timelines and reduce stockouts in fast‑moving production lines.
Get a Quick Quote for a ABB 7BL1313T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BL1313T?
Enquire Now
FAQs
Yes. The 7BL1313T is a 1‑phase motor rated for 115/230 V at 60 Hz, with a 143T frame and OPEN enclosure. It is designed for foot‑mounted installation on standard baseplates and is compatible with common control panels, minimizing retrofit complexity.
Key specs include 1.5 HP, 3450 r/min, 60 Hz operation, 115/230 V single‑phase, 143T frame, and a service factor of 1.15. The motor delivers approximately 70% efficiency and a rated current of 17.8 A (115 V) or 8.9 A (230 V), suitable for light‑duty continuous applications.
This motor excels in conveyors, air fans, and small pump assemblies in light industrial settings. Its open enclosure and foot‑mounted design fit easily under machines and on standard frames, while the 143T frame and 1PH 60 Hz spec align with typical plant power and mounting arrangements.
The motor is RoHS compliant and CSA/UR certified, with NEMA design alignment. These certifications support regulatory acceptance across North American facilities and simplify supplier qualification and maintenance planning.
With 0‑day lead time and broad warehouse stocking, downtime is minimized and project timelines are accelerated. Regreasable bearings and standard frame compatibility reduce maintenance frequency, while universal voltage support decreases wiring and control modifications, delivering faster ROI in production lines.
