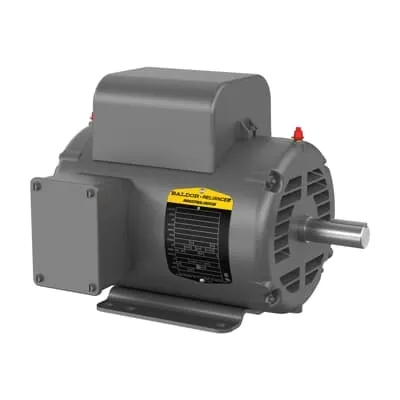

ABB 7BL1320T General Purpose Motor - CSA/UR Certified
Part Number: 7BL1320T
Quick Summary
ABB 7BL1320T General Purpose Motor delivers 2 HP power for open, single-phase industrial drives. This open-enclosure, 60 Hz motor is well-suited for conveyors, pumps, and general machinery, offering reliable performance with a compact footprint. With CSA and UR safety certifications, RoHS compliance, and a NEMA-design open frame, it ensures dependable operation in demanding environments. Stocked across multiple US warehouses with 0 day lead time, it supports rapid project ramp-up, minimizes downtime, and reduces total cost of ownership. The 143T frame and standard mounting simplify replacements and scale across growing automation installations.
Product Information
Extended Description
7BL1320T ABB: General Purpose Motor 2 Hp 115 V (L1320T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
2HP,3450RPM,1PH,60HZ,3528LC,N
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6205 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
L1320T
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
L
Dimension Diagram
35LYY525: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
OPEN
Frame Material
Steel
Frame Size
143
Frequency (f)
60 Hz
Global Commercial Alias
L1320T
Gross Volume
2110.969 in³
Gross Weight
46 lb
Horsepower Rating UL/CSA
2.000 Hp
IC Class
OPEN
IDEA Granular Category Code (IGCC)
1329 >> Single phase motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
B
Invoice Description
2HP,3450RPM,1PH,60HZ,3528LC,N
Lubrication
Regreasable
Made To Order
No
Medium Description
General Purpose 1PH Open, 2 HP, 3600 RPM, Frame Size 143T, Standard Mounting, 1 Phase, OPEN Enclosure, 115/230 V, 60 Hz (L1320T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
143T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
L
Number of Phases
1
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
2 Hp
Power Factor
75 %
Product Name
General Purpose 1PH Open
Product Net Depth / Length
16.5 in
Product Net Height
11.125 in
Product Net Weight
46 lb
Product Net Width
11.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
23 A | 11.5 A
Rated Efficiency
71 %
Rated Speed
3450 r/min
Replaced Product ID (OLD)
7B35Y525-1639G1
RoHS Information
RoHS Compliant
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.88 in
Short Description
2 HP, 3600 RPM, Frame Size 143T, Standard, 1 PH, OPEN, 115/230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101116
Voltage Code
H
Voltage Rating
115 V | 230 V
Feature: Open, single-phase design rated at 2 HP and 115/230 V 60 Hz. Business Impact: Simplified electrical infrastructure and broad compatibility with common VFDs and drives, enabling faster commissioning. Application: Suitable for light industrial conveyors and pumps where space and voltage flexibility matter. Feature: Foot-mounted, horizontal mounting with standard drive end flange (143T frame). Business Impact: Easier installation, reduced misalignment, and straightforward serviceability. Application: Ideal for retrofit projects and new installs in open machinery layouts. Feature: Regreasable lubrication and durable bearings (6205 | Ball). Business Impact: Longer bearing life, lower maintenance costs, and predictable uptime. Application: Harsh environments where routine servicing must be minimized without sacrificing performance. Feature: Duty Time 60 Min and Service Factor 1.15. Business Impact: Torque reserve for startup surges and variable loads, improving reliability under peak demand. Application: Conveyor lines and pumps that experience intermittent heavy loads. Feature: Certifications and compliance (CSA | UR, RoHS) with NEMA design L. Business Impact: Meets safety and environmental standards, enabling easier regulatory approval and customer acceptance. Application: Widely adopted in US manufacturing, packaging, and general automation environments. Result: The combination of standard 143T framing, open enclosure, and stock availability supports installation efficiency, reduces project risk, and accelerates time-to-operation for industrial equipment across multiple sectors.
