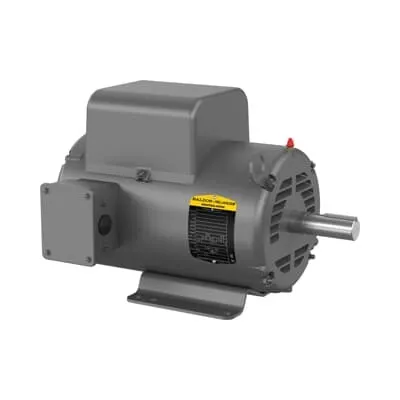

ABB 7BL1410TM General Purpose Motor - CSA UR
Part Number: 7BL1410TM
Quick Summary
ABB 7BL1410TM General Purpose Motor is a 5 HP, single-phase open enclosure motor designed for general purpose applications at 230 V. This model delivers reliable starting and steady operation in light industrial equipment and OEM drives. Engineers often face procurement bottlenecks when sourcing a CSA/UR-listed motor with consistent lead times and straightforward mounting. With CSA and UR certifications, plus a NEMA design code L designation and a robust 184T frame, the 7BL1410TM offers proven compatibility across standard foot mounts and open enclosures. The open design and regreasable bearings support easier maintenance, while stock availability and predictable performance translate into tangible business value for production lines seeking uptime and cost control.
Product Information
Extended Description
7BL1410TM ABB: General Purpose Motor 5 Hp 230 V (L1410TM)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
5HP,1725RPM,1PH,60HZ,184T,3640LC,OP
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6206 | Ball
Bearing NDE
6205 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
L1410TM
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
L
Dimension Diagram
36LYF009: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
OPEN
Frame Material
Steel
Frame Size
184
Frequency (f)
60 Hz
Global Commercial Alias
L1410TM
Gross Volume
3590.443 in³
Gross Weight
85 lb
Horsepower Rating UL/CSA
5.000 Hp
IC Class
OPEN
IDEA Granular Category Code (IGCC)
1329 >> Single phase motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
5HP,1725RPM,1PH,60HZ,184T,3640LC,OPEN,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
General Purpose 1PH Open, 5 HP, 1800 RPM, Frame Size 184T, Standard Mounting, 1 Phase, OPEN Enclosure, 230 V, 60 Hz (L1410TM)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
184T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
L
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
5 Hp
Power Factor
87 %
Product Name
General Purpose 1PH Open
Product Net Depth / Length
22.875 in
Product Net Height
12.813 in
Product Net Weight
85 lb
Product Net Width
12.25 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
23 A
Rated Efficiency
82.50 %
Rated Speed
1725 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.13 in
Short Description
5 HP, 1800 RPM, Frame Size 184T, Standard, 1 PH, OPEN, 230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101116
Voltage Code
G
Voltage Rating
230 V
Feature → Business Impact → Application: The 5 HP, 1725 RPM, 230 V, single-phase design delivers consistent torque and reliable start-up, reducing startup shocks and downtime in conveyors, pumps, and fans. This results in measurable energy efficiency and reduced maintenance costs when integrated into light industrial equipment. Application: Ideal for OEM machines and retrofit projects requiring a compact, open-enclosure motor with standard mounting footprints, enabling quick installation and minimal downtime. Feature → Business Impact → Application: Open enclosure with foot mounting (Frame 184T, 1PH, 60 Hz) simplifies installation on existing bases and reduces installation time, lowering total installed cost for manufacturing lines. Application: Pumps, fans, and blowers in metal fabrication, chemical processing, and packaging lines. Feature → Business Impact → Application: Regreasable bearings and 60-minute duty cycle improve serviceability and lifecycle reliability, lowering lubrication intervals and unplanned maintenance in continuous operation environments. Application: Long-running fans and pumps in enclosed plant spaces. Feature → Business Impact → Application: CSA | UR certifications and NEMA design code L provide compliance assurance and cross-market compatibility, mitigating regulatory risk when sourcing from global suppliers. Application: International procurement and multi-plant deployments. Feature → Business Impact → Application: Stocked at multiple warehouses with 0-day lead time, enhancing supply chain resilience and reducing downtime during spares planning. Application: Assembly lines, material handling, and process control equipment. Feature → Business Impact → Application: 184T frame size, 1-phase operation, 230 V rating, and 60 Hz compatibility enable seamless integration with existing electrical distributions and drive systems. Application: Retrofit projects and new builds requiring standard industrial motors with predictable performance.
Get a Quick Quote for a ABB 7BL1410TM
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BL1410TM?
Enquire Now
FAQs
Yes. The motor is designed for foot-mounted horizontal installation with a standard drive end flange. The mounting position is specified as F1, and the 184T frame fits common base plates, simplifying retrofits and new builds while maintaining alignment with existing equipment.
Key specs include 1 phase, 230 V, 60 Hz operation, 1725 r/min synchronous speed, and 5 HP output. Insulation class is F, service factor 1.15, and rated current around 23 A. These details support compatibility with standard single-phase power distributions and drive systems.
The 7BL1410TM is CSA and UR certified, aligned with NEMA design practices (NEMA designation L). It is built for open enclosure environments and is suitable for general industrial use where regulatory compliance is essential.
Ideal for general-purpose applications in light industrial equipment, including pumps, fans, and conveyors. Its open enclosure and standard base allow straightforward integration into OEM machinery and retrofit projects targeting reliable, continuous operation.
Regreasable bearings plus a 60-min duty rating enable easier lubrication scheduling and longer service intervals, boosting uptime. With stock available across warehouses and a competitive 5 HP rating, you can reduce downtime costs, improve mean time between failures, and shorten time-to-market for new line integrations.
