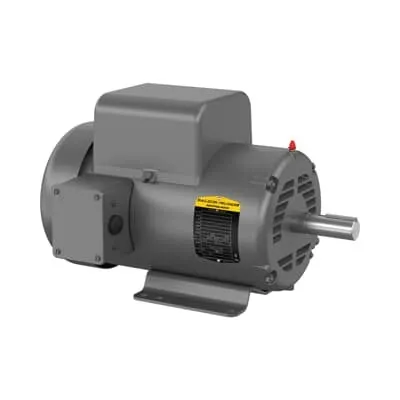

ABB 7BL1430TM General Purpose Motor - ODTF 1PH 230V
Part Number: 7BL1430TM
Quick Summary
ABB 7BL1430TM general purpose motor is a reliable 5 HP solution for open, single-phase drives in light industrial equipment. Designed for straightforward integration, it fits standard 184T frames and horizontal foot-mounted installations to simplify retrofits and new builds. Users gain predictable performance with a regreasable bearing system and an ODTF enclosure that tolerates open environments and demanding plant conditions. The motor carries CSA/UR certifications and aligns with NEMA design standards, supporting compliant, safe operation. With fast stocking across multiple warehouses, this motor reduces lead times and accelerates project timelines while delivering strong total cost of ownership through durable construction and easy maintenance.
Product Information
Extended Description
7BL1430TM ABB: General Purpose Motor 5 Hp 230 V (L1430TM)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
5HP,1725RPM,1PH,60HZ,184T, 3634LC,O
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6206 | Ball
Bearing NDE
6205 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
L1430TM
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
L
Dimension Diagram
36LYK761: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
ODTF
Frame Material
Steel
Frame Size
184
Frequency (f)
60 Hz
Global Commercial Alias
L1430TM
Gross Volume
5274.135 in³
Gross Weight
82 lb
Horsepower Rating UL/CSA
5.000 Hp
IC Class
ODTF
IDEA Granular Category Code (IGCC)
1329 >> Single phase motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
5HP,1725RPM,1PH,60HZ,184T, 3634LC,ODTF
Lubrication
Regreasable
Made To Order
No
Medium Description
General Purpose 1PH Open, 5 HP, 1800 RPM, Frame Size 184T, Standard Mounting, 1 Phase, ODTF Enclosure, 230 V, 60 Hz (L1430TM)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
184T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
L
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
5 Hp
Power Factor
86 %
Product Name
General Purpose 1PH Open
Product Net Depth / Length
21.625 in
Product Net Height
15.125 in
Product Net Weight
82 lb
Product Net Width
16.125 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
24 A
Rated Efficiency
80 %
Rated Speed
1725 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.13 in
Short Description
5 HP, 1800 RPM, Frame Size 184T, Standard, 1 PH, ODTF, 230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101116
Voltage Code
H
Voltage Rating
230 V
Feature → Business Impact → Application: 5 HP, 230 V single-phase power enables easy integration into existing 230 V plant infrastructure, reducing wiring complexity and initial setup costs while delivering reliable open-drive performance for light industrial conveyors and pumps. Application: open machinery in packaging lines and gentle automation tasks. Feature → Business Impact → Application: 184T frame with foot-mounted mounting simplifies on-site installation and aligns with common OEM footprints, enabling quick retrofits and standardized maintenance procedures. Application: retrofits on small machines and OEM equipment requiring compact, compatible motor packages. Feature → Business Impact → Application: ODTF enclosure and regreasable bearings increase uptime in dusty or humid environments, lowering maintenance intervals and extending service life. Application: general purpose open motors in manufacturing cells and material handling. Feature → Business Impact → Application: 60 Min duty with 1.15 service factor provides robust overload tolerance and continuous performance under light-duty cycles, improving line reliability and reducing unplanned downtime. Application: pumps, fans, and conveyors in continuous operation scenarios. Feature → Business Impact → Application: CSA/UR certifications and NEMA standards support regulatory compliance and OEM qualification, simplifying supplier approvals and customer audits. Application: equipment intended for regulated facilities and multi-site deployments. Feature → Business Impact → Application: Fast stocking across multiple warehouses (US and international) and zero lead time shorten project timelines and enhance spare-part availability, minimizing plant downtime. Application: urgent commissioning, mass production lines, and maintenance windows.
