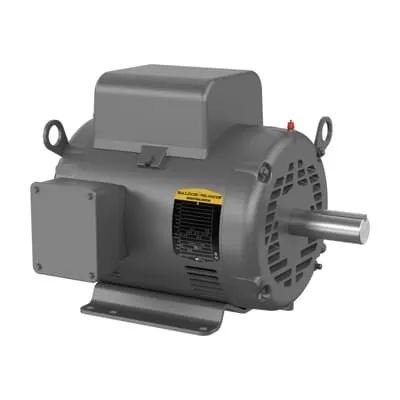

ABB 7BL1508T General Purpose Motor - OPSB
Part Number: 7BL1508T
Quick Summary
ABB 7BL1508T general purpose motor drives conveyors and open‑frame equipment with 5 HP at 230 V, 1 phase. Engineers often struggle to source a compact, reliable open-frame motor that fits standard mounts and ships quickly to minimize downtime. This model carries CSA/UR certification and a NEMA design L with a rugged OPSB enclosure, ensuring compliance and durability in harsh environments. With a 213T frame, 1725 rpm nominal speed, and a 1.15 service factor, it delivers steady performance for industrial pumps, fans, and conveyors. Its 60 Hz, 230 V rating supports easy swaps in existing lines, delivering real business value through uptime and energy efficiency.
Product Information
Extended Description
7BL1508T ABB: General Purpose Motor 5 Hp 230 V (L1508T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
5HP,1745RPM,1PH,60HZ,213T,3727L,OPS
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6307 | Ball
Bearing NDE
6206 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
L1508T
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
L
Dimension Diagram
37LYK214: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
OPSB
Frame Material
Steel
Frame Size
213
Frequency (f)
60 Hz
Global Commercial Alias
L1508T
Gross Volume
5274.135 in³
Gross Weight
108 lb
Horsepower Rating UL/CSA
5.000 Hp
IC Class
OPSB
IDEA Granular Category Code (IGCC)
1329 >> Single phase motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
5HP,1745RPM,1PH,60HZ,213T,3727L,OPSB,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
General Purpose 1PH Open, 5 HP, 1800 RPM, Frame Size 213T, Standard Mounting, 1 Phase, OPSB Enclosure, 230 V, 60 Hz (L1508T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
213T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
L
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
5 Hp
Power Factor
78 %
Product Name
General Purpose 1PH Open
Product Net Depth / Length
21.625 in
Product Net Height
15.125 in
Product Net Weight
108 lb
Product Net Width
16.125 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
27 A
Rated Efficiency
77 %
Rated Speed
1725 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.38 in
Short Description
5 HP, 1800 RPM, Frame Size 213T, Standard, 1 PH, OPSB, 230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101116
Voltage Code
G
Voltage Rating
230 V
Feature → Business Impact → Application: The 5 HP ratings at 230 V, 60 Hz, and 1725 r/min deliver reliable, consistent torque for moderate-load conveyor and pump applications, reducing ripple and improving process stability. This translates to measurable uptime and reduced motor wear in packaging lines that require smooth starts and steady speed control. The closed-loop knowledge of PF 0.78 and efficiency around 77% supports energy-conscious operation, lowering operating costs in continuous-duty environments like fans and blowers. The OPSB enclosure and steel frame provide robust protection in manufacturing floors, enabling longer intervals between maintenance cycles and better dust/dust ingress resilience for open‑frame installations. Foot-mounted, horizontal F1 mounting aligns with standard installation practices, simplifying retrofits and new builds while delivering predictable alignment and reduced mounting work.
Get a Quick Quote for a ABB 7BL1508T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BL1508T?
Enquire Now
FAQs
Yes. The 7BL1508T uses a 213T frame with horizontal mounting (F1) and a standard drive end flange, optimized for OPSB open enclosure installations. It is foot-mounted for straightforward retrofits and aligns with typical open-frame equipment found in conveyors, pumps, and fans. The Direct On Line starting method supports simple starter integration without braking accessories.
This model operates at 230 V, single-phase, 60 Hz, with a nominal speed of 1725 r/min and a rated current of 27 A. It delivers 5 HP with a service factor of 1.15 and a rated efficiency around 77%, along with a power factor of ~0.78. These specs support reliable performance in typical light‑to‑medium load applications such as fans, pumps, and light conveyors.
Yes. The motor is designed for continuous duty in general purpose applications, supported by a continuous duty rating and OPSB enclosure. With a robust 213T frame, regreasable bearings, and a 60-minute duty time consideration when needed, it sustains steady operation in conveyors and process equipment with minimal downtime.
The 7BL1508T is certified for CSA and UL recognition with UR, and it adheres to NEMA design standards (L design code). These certifications provide regulatory compliance and reliability assurance across North American installations, which is critical for regulated manufacturing environments.
Maintenance is simplified by regreasable bearings and a durable steel frame, reducing lubrication downtime and extending service intervals. The open OPSB design eases cooling and inspection, contributing to higher uptime. Stock availability across multiple warehouses (0‑day lead time) improves ROI by minimizing project delays and inventory carrying costs.
