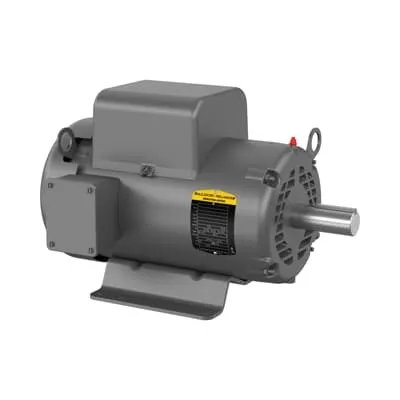

ABB 7BL1509T General Purpose Motor - CSA UR
Part Number: 7BL1509T
Quick Summary
ABB 7BL1509T General Purpose Motor operates as a reliable 7.5 HP, 230 V single‑phase drive for general industrial machinery. It addresses common pain points such as long lead times, sourcing risk, and warranty hassles by offering stocked availability and straightforward warranty terms. Certified for CSA and UR, aligns with NEMA standard design expectations for 1‑phase, 60 Hz operation. Designed for open, foot‑mounted installations with frame size 213T, it supports quick integration into existing 60 Hz systems, delivering predictable performance and lower total cost of ownership. Ideal for general purpose conveyors, pumps, fans, and equipment where robust single‑phase reliability drives uptime and maintenance savings.
Product Information
Extended Description
7BL1509T ABB: General Purpose Motor 7.5 Hp 230 V (L1509T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
7.5HP,3450RPM,1PH,60HZ,213T,3640LC,
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6207 | Ball
Bearing NDE
6205 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
L1509T
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
L
Dimension Diagram
36LYH282: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
ODTF
Frame Material
Steel
Frame Size
213
Frequency (f)
60 Hz
Global Commercial Alias
L1509T
Gross Volume
5274.135 in³
Gross Weight
94 lb
Horsepower Rating UL/CSA
7.500 Hp
IC Class
ODTF
IDEA Granular Category Code (IGCC)
1329 >> Single phase motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
7.5HP,3450RPM,1PH,60HZ,213T,3640LC,OPEN
Lubrication
Regreasable
Made To Order
No
Medium Description
General Purpose 1PH Open, 7.5 HP, 3600 RPM, Frame Size 213T, Standard Mounting, 1 Phase, ODTF Enclosure, 230 V, 60 Hz (L1509T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
213T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
L
Number of Phases
1
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
7.5 Hp
Power Factor
96 %
Product Name
General Purpose 1PH Open
Product Net Depth / Length
21.625 in
Product Net Height
15.125 in
Product Net Weight
94 lb
Product Net Width
16.125 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
30 A
Rated Efficiency
82.50 %
Rated Speed
3450 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.38 in
Short Description
7.5 HP, 3600 RPM, Frame Size 213T, Standard, 1 PH, ODTF, 230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101116
Voltage Code
H
Voltage Rating
230 V
Feature: 7.5 HP, 230 V, 1‑phase, 60 Hz. Business Impact: This straightforward electrical profile simplifies panel design, reduces starter equipment needs, and minimizes wiring mistakes. Application: Ideal for general purpose open motors in conveyors, pumps, and fans across manufacturing lines. Feature: Frame 213T with ODTF enclosure, Foot Mounted. Business Impact: Standardized mounting footprint enables quick installation and compatibility with legacy equipment while providing reliable protection in open environments. Application: Perfect for retrofit projects and new builds in light to medium industrial duties. Feature: Bearings 6207/Bearing NDE 6205, Regreasable lubrication. Business Impact: Long bearing life and serviceability reduce maintenance downtime and replacement costs, boosting overall equipment effectiveness. Application: Favorable for continuous operation in continuous duty tasks and accessible lubrication schedules. Feature: Efficiency 82.5%, PF 96%, Rated Current 30 A. Business Impact: Higher efficiency and power factor lower energy consumption and electrical stress, improving utility alignment and cooling requirements. Application: Suited for energy-conscious facilities and motors driving pumps, fans, and conveyors. Feature: Stocked, 0‑Day Lead Time, CSA/UR, 2‑Pole, 60 Hz, 213T. Business Impact: Fast procurement, regulatory compliance, and predictable performance reduce project lead times and total cost of ownership. Application: Ideal for mission-critical installations in manufacturing lines needing rapid replacement and consistent supplier support.
Get a Quick Quote for a ABB 7BL1509T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BL1509T?
Enquire Now
FAQs
The 7BL1509T uses a 213T frame with a foot-mounted, horizontal mounting configuration and a 1‑phase, 60 Hz electrical design. This combination aligns with common industrial control panels and standard open-mount installations, enabling straightforward retrofits and quick integration into existing lines without special adapters or bespoke mounting.
Key specs include 230 V, 60 Hz, 7.5 HP, 30 A rated current, PF 96%, and efficiency 82.5%. Insulation class is F, service factor 1.15, and it runs on a continuous duty profile. These figures support predictable motor performance, informed cooling requirements, and reliable operation in typical factory environments.
Ideal for general purpose open equipment, conveyors, pumps, and fans in light to medium duty applications. The ODTF enclosure and 213T frame enable durable installation in open environments, while the 1‑phase, 60 Hz configuration fits standard commercial power systems used in many manufacturing and packaging lines.
This motor carries CSA and UR certifications and aligns with NEMA design standards for single‑phase, 60 Hz operation. These certifications simplify compliance in North American facilities and help ensure dependable performance within regulated electrical environments.
With stock at multiple warehouses and 0‑day lead times, procurement is fast and predictable, reducing downtime. Warranty terms require returns for warranty work, which supports risk mitigation and cost control over the motor’s lifecycle, contributing to a lower total cost of ownership.
