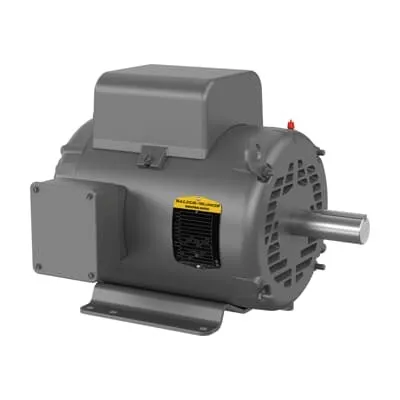

ABB 7BL1510T General Purpose Motor - 230V 1PH CSA/UR
Part Number: 7BL1510T
Quick Summary
ABB 7BL1510T General Purpose Motor is designed to deliver reliable single-phase performance for compact industrial tasks, from pumps to conveyors. This design simplifies electrical sourcing with a 230 V, 60 Hz, 1-phase configuration and a robust 215T frame that fits common retrofit installations. Mismatched motors and frequent downtime are common pain points; this model addresses them with open enclosure for cooling, regreasable bearings for longer life, and a straightforward direct-on-line start. With CSA and UR certifications and a NEMA design code, the motor meets essential safety and compatibility standards for plant-wide deployment. The combination of high efficiency, simple installation, and predictable duty supports lean manufacturing, reduced maintenance, and faster project ROI.
Product Information
Extended Description
7BL1510T ABB: General Purpose Motor 7.5 Hp 230 V (L1510T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
7.5HP,1750RPM,1PH,60HZ,215T,3738LC,
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6307 | Ball
Bearing NDE
6206 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
L1510T
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
L
Dimension Diagram
37LYM295: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
OPEN
Frame Material
Steel
Frame Size
215
Frequency (f)
60 Hz
Global Commercial Alias
L1510T
Gross Volume
7561.383 in³
Gross Weight
134 lb
Horsepower Rating UL/CSA
7.500 Hp
IC Class
OPEN
IDEA Granular Category Code (IGCC)
1329 >> Single phase motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
7.5HP,1750RPM,1PH,60HZ,215T,3738LC,OPEN
Lubrication
Regreasable
Made To Order
No
Medium Description
General Purpose 1PH Open, 7.5 HP, 1800 RPM, Frame Size 215T, Standard Mounting, 1 Phase, OPEN Enclosure, 230 V, 60 Hz (L1510T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
215T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
L
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
7.5 Hp
Power Factor
87 %
Product Name
General Purpose 1PH Open
Product Net Depth / Length
26.375 in
Product Net Height
17.375 in
Product Net Weight
134 lb
Product Net Width
16.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
33 A
Rated Efficiency
85.50 %
Rated Speed
1750 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.38 in
Short Description
7.5 HP, 1800 RPM, Frame Size 215T, Standard, 1 PH, OPEN, 230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101116
Voltage Code
G
Voltage Rating
230 V
Feature: 7.5 HP, 230 V, 60 Hz, single-phase operation. This combination enables direct connection to common plant power and reduces drive control complexity, resulting in faster panel assembly and fewer wiring errors. Application-wise, it is well-suited for general purpose tasks such as pumps, fans, and light conveyors in small-to-mid scale lines. Feature: Frame Size 215T and foot-mounted base. This standard footprint ensures easy retrofit into existing equipment and basing, minimizing downtime during replacement projects. Application areas include conveyors, material handling, and HVAC fan assemblies where a compact footprint is critical. Feature: OPEN enclosure with standard Drive End Flange. The open design provides superior cooling and simpler maintenance in exposed environments, reducing thermal derating and energy waste. Application contexts include outdoor or semi-indoor machinery and open machinery bays where accessibility matters. Feature: Regreasable bearings and lubricants. This design extends bearing life and reduces unscheduled maintenance, lowering total cost of ownership. Application: continuous operation in manufacturing lines, painting booths, and process pumps where lubrication intervals matter. Feature: Certifications and compliance (CSA | UR, NEMA Design Code L). These certifications simplify procurement across regulated industries and help meet safety standards. Application: ensures equipment can be deployed in regulated facilities with confidence, improving supplier scorecards and audit readiness. Feature: 7.5 HP rating with 1-phase, 60 Hz operation and 1750/1800 rpm characteristics. This provides a reliable balance of starting torque and running efficiency, with a 87% power factor and 33 A rated current to align with typical electrical service panels. Application: ideal for pumps, fans, and light-duty drives in industrial environments.
Get a Quick Quote for a ABB 7BL1510T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BL1510T?
Enquire Now
FAQs
Yes. The motor is specified for 230 V, 60 Hz, and 1-phase operation, making it suitable for direct connection to standard plant electrical services without additional phase conversion hardware.
It uses a 215T frame with a foot-mounted base and a standard drive end flange, which facilitates straightforward mounting on existing bases and supports quick retrofit into current equipment layouts.
The unit is CSA and UR listed and follows a NEMA Design Code L, with an OPEN enclosure. These certifications help with compliance, supplier qualification, and installation in regulated industrial environments.
Regreasable bearings and lubricants extend bearing life and reduce maintenance intervals. An open enclosure improves cooling and accessibility, contributing to lower downtime and easier servicing in busy production floors.
With 7.5 HP, 1-phase operation at 230 V, 60 Hz, and a rated current of ~33 A, the motor delivers reliable torque for pumps and conveyors. Its compliance, ease of installation, and actionable maintenance benefits support faster project ROI and lower total cost of ownership.
