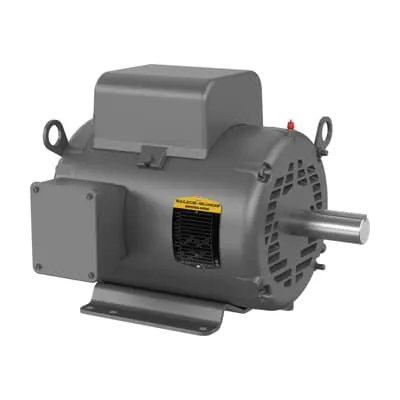

ABB 7BL1511T General Purpose Motor - 1PH Open 60Hz CSA/UR
Part Number: 7BL1511T
Quick Summary
ABB 7BL1511T General Purpose Motor is a reliable 10 HP, 230 V single-phase drive designed for open-frame applications such as pumps and conveyors. In procurement, engineers often contend with long lead times and inconsistent origin data, risking downtime and compatibility gaps. This model aligns with NEMA design standards and carries CSA/UR certification, enabling safer, regulator-ready installations. With ready stock across multiple warehouses and a 0-day lead time, it supports rapid deployment in US OEM environments while preserving high availability. The combination of open enclosure, foot-mounted mounting, and a 215T frame delivers versatile integration across general-purpose manufacturing lines.
Product Information
Extended Description
7BL1511T ABB: General Purpose Motor 10 Hp 230 V (L1511T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
10HP,3450RPM,1PH,60HZ,215T,3740L,OP
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6307 | Ball
Bearing NDE
6206 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
L1511T
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
L
Dimension Diagram
37LYK267: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
OPEN
Frame Material
Steel
Frame Size
215
Frequency (f)
60 Hz
Global Commercial Alias
L1511T
Gross Volume
7561.383 in³
Gross Weight
131 lb
Horsepower Rating UL/CSA
10.000 Hp
IC Class
OPEN
IDEA Granular Category Code (IGCC)
1329 >> Single phase motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
10HP,3450RPM,1PH,60HZ,215T,3740L,OPEN,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
General Purpose 1PH Open, 10 HP, 3600 RPM, Frame Size 215T, Standard Mounting, 1 Phase, OPEN Enclosure, 230 V, 60 Hz (L1511T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
215T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
L
Number of Phases
1
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
10 Hp
Power Factor
86 %
Product Name
General Purpose 1PH Open
Product Net Depth / Length
26.375 in
Product Net Height
17.375 in
Product Net Weight
131 lb
Product Net Width
16.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
46 A
Rated Efficiency
83 %
Rated Speed
3450 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.38 in
Short Description
10 HP, 3600 RPM, Frame Size 215T, Standard, 1 PH, OPEN, 230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101116
Voltage Code
G
Voltage Rating
230 V
Feature: 1PH, 230 V operation in an open enclosure with a 215T frame. Business Impact: Simplifies installation and reduces cooling constraints in general-purpose drives, enabling faster commissioning. Application: Ideal for light industrial pumps and fans in OEM lines. Feature: Foot-mounted 215T frame with open enclosure and 60-minute duty. Business Impact: Easy retrofits and durable performance in continuous operation, lowering replacement costs. Application: Conveyor and process equipment in 1-phase systems. Feature: Direct On Line starting and 46 A rated current with 83% efficiency. Business Impact: Low startup costs and predictable energy use, improving TCO. Application: Small to mid-size machinery fleets requiring reliable on-site performance. Feature: Regreasable bearings (6307/6206) and insulation class F. Business Impact: Longer service intervals and better heat resistance in harsh environments. Application: Harsh shop floors and dusty facilities. Feature: CSA/UR and NEMA design alignment. Business Impact: Quicker regulatory clearance and safer installation. Application: US-based OEMs and service fleets seeking compliant motor solutions. Feature: Stocked at multiple warehouses with 0-day lead time. Business Impact: Rapid fulfillment reduces downtime and accelerates project timelines. Application: Spare parts programs and high-availability deployments across US and international facilities.
