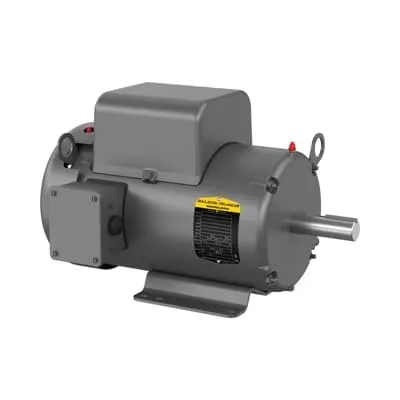

ABB 7BL3609TM Motor - 3HP 115V TEFC 1PH 60Hz 184T
Part Number: 7BL3609TM
Quick Summary
ABB 7BL3609TM General Purpose Motor is a compact 3 HP, single-phase solution designed for a range of light industrial applications, including pumps, conveyors, and pressure washers. It is engineered to simplify installation and accelerate start-ups, reducing commissioning time and wiring complexity in facilities with limited three-phase power. The motor carries CSA and UR listings and aligns with NEMA design standards, supported by a TEFC enclosure and F insulation class for durability in dusty or harsh environments. With a 184T frame and foot-mounted base, this motor enables straightforward retrofits and predictable maintenance, while stock availability across multiple warehouses supports fast procurement and shorter project timelines.
Product Information
Extended Description
7BL3609TM ABB: General Purpose Motor 3 Hp 115 V (L3609TM)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
3HP,1725RPM,1PH,60HZ,184T,3634LC,TE
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6206, Ball
Bearing NDE
6205
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
L3609TM
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
L
Dimension Diagram
36LYF227: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
184
Frequency (f)
60 Hz
Global Commercial Alias
L3609TM
Gross Volume
5274.135 in³
Gross Weight
79 lb
Horsepower Rating UL/CSA
3.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1329 >> Single phase motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
3HP,1725RPM,1PH,60HZ,184T,3634LC,TEFC,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
Pressure Washer, 3 HP, 1800 RPM, Frame Size 184T, Standard Mounting, 1 Phase, TEFC Enclosure, 115/230 V, 60 Hz (L3609TM)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
184T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
L
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
3 Hp
Power Factor
85 %
Product Name
Pressure Washer
Product Net Depth / Length
21.625 in
Product Net Height
15.125 in
Product Net Weight
79 lb
Product Net Width
16.125 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
28 A | 14.5 A
Rated Efficiency
78 %
Rated Speed
1725 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
1.13 in
Short Description
3 HP, 1800 RPM, Frame Size 184T, Standard, 1 PH, TEFC, 115/230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101111
Voltage Code
K
Voltage Rating
115 V | 230 V
Feature → Business Impact → Application: The 3 HP, single-phase design operates on 115 V or 230 V and 60 Hz, enabling direct connection to standard electrical mains and simplifying panel design. This reduces installation costs and accelerates project timelines for pumps and light-duty conveyors found in food processing, wash-down stations, and cleaning equipment. Feature → Business Impact → Application: The 184T frame with foot mounting and horizontal F1 orientation delivers a robust, compatible footprint for retrofits into existing systems, minimizing mechanical rework and allowing rapid onboarding of new equipment in commercial laundry lines or wash stations. Feature → Business Impact → Application: TEFC enclosure with F-class insulation protects against dust, moisture, and temperature fluctuations, lowering maintenance frequency and extending service intervals in manufacturing floors and outdoor equipment. Feature → Business Impact → Application: Regreasable bearings (6206) and shaft diameter of 1.13 in ensure dependable operation with low-friction performance, improving mean time between maintenance (MTBM) and reducing total cost of ownership in pumps and pressure washers. Feature → Business Impact → Application: Direct-on-line starting and a nominal speed of 1725 r/min (1800 r/min synchronous) deliver responsive torque for start-ups in conveyors and lifting gear, while the 4-pole design supports steady operation at 60 Hz. Feature → Business Impact → Application: CSA/UR compliance and NEMA design code L support regulatory acceptance and predictable performance in U.S. industrial facilities, meeting safety standards for single-phase motors used in automation lines. Feature → Business Impact → Application: Stocked availability (US and international warehouses) with 0-day lead time reduces downtime and accelerates project delivery for OEMs and maintenance teams, particularly in service-heavy environments like pressure washers, commercial washers, and wash-down applications.
