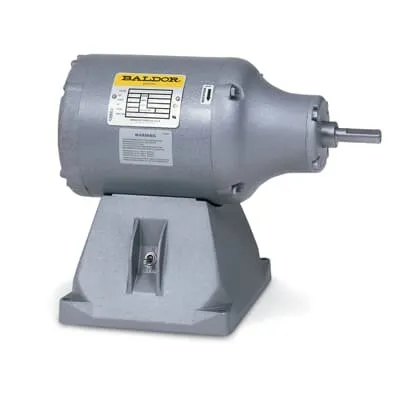

ABB 7BLPL50 Dental Lathe Motor - UR Listed, 1-Phase, 115V
Part Number: 7BLPL50
Quick Summary
ABB 7BLPL50 is a compact 0.5 HP, 1-phase motor designed for dental lathe and precision grinding applications. It delivers reliable starting torque and steady speed in small workshop setups, minimizing downtime and maximizing throughput. This motor addresses common pain points such as inconsistent performance, heat buildup, and difficult maintenance in compact equipment. The unit carries UR Listed certification and aligns with ETIM EC001851 electric motor classification, signaling formal industry compliance. Made in the United States and stocked across regional warehouses, it offers fast lead times and straightforward sourcing for OEMs and service providers. With a TENV enclosure, foot-mounted design, and 115 V operation, it integrates smoothly into existing dental-lathe lines while supporting scalable upgrades.
Product Information
Extended Description
7BLPL50 ABB: .5HP,3450RPM,1PH,60HZ,3520S,DENTAL LATHE
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.5HP,3450RPM,1PH,60HZ,3520S,DENTAL
Altitude
1000 m
Ambient Temperature
40 °C
Brand / Label
Baldor-Reliance®
Catalog Number
LPL50
Certification Agency
UR
Country of Origin
United States (US)
Customs Tariff Number
85013100
Dimension Diagram
L5LY0282: Dimension Sheet
Direction of Rotation
CW Clockwise
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TENV
Frame Material
Steel
Frame Size
Undefined
Frequency (f)
60 Hz
Global Commercial Alias
LPL50
Gross Volume
5274.135 in³
Gross Weight
43 lb
Horsepower Rating UL/CSA
0.500 Hp
IC Class
TENV
IDEA Granular Category Code (IGCC)
1329 >> Single phase motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
B
Invoice Description
.5HP,3450RPM,1PH,60HZ,3520S,DENTAL LATHE
Lubrication
Regreasable
Made To Order
No
Medium Description
1 Phase, TENV Enclosure, (LPL50)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Mounting Orientation
Horizontal
Number of Phases
1
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
0.50 Hp
Product Name
Grinders/Buffers/Lathes/Belt Sander
Product Net Depth / Length
21.625 in
Product Net Height
15.125 in
Product Net Weight
43 lb
Product Net Width
16.125 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
5.4 A
Rated Speed
3450 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
0.63 in
Short Description
1 PH, TENV,
Standards
Other
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101116
Voltage Code
X-Other
Voltage Rating
115 V
Feature: 0.5 HP, 115 V, 1-phase operation. Business Impact: Delivers efficient, predictable performance for small-diameter dental lathe tasks, reducing cycle times and energy waste. Application: Ideal for compact dental lathe drives and precision grinding setups, enabling consistent finishes. Feature: 60 Hz frequency and 3450 r/min rated speed with 3600 r/min synchronous speed. Business Impact: Provides stable torque and smooth startup essential for delicate dental work, minimizing tool chatter. Application: Fits routine dental-lathe operations and polishing stations in labs and clinics. Feature: Enclosure Type TENV with Regreasable lubrication. Business Impact: Resists heat and contaminants while enabling extended maintenance intervals and lower lifetime costs. Application: Harsh workshop environments and long-running lathe processes. Feature: Foot-mounted mounting and 0.63 in shaft diameter. Business Impact: Simplifies installation, alignment, and retrofit into existing drive collars, reducing installation time and downtime. Application: Retrofit projects and OEM integrations for dental-lathe lines. Feature: UR Listed certification and ETIM EC001851 classification. Business Impact: Supports regulatory compliance and standardized procurement workflows, reducing qualification cycles. Application: Global sourcing for medical-dental instrument manufacturers and service providers. Feature: 115 V, 60 Hz operation with direct-on-line start option. Business Impact: Enables straightforward control strategies and minimal control hardware, lowering upfront costs. Application: Lab benches, denture-lab milling stations, and small workshop grinders where quick install is valued. Industry context: The 7BLPL50 aligns with popular catalog numbers and stock lines (LPL50) and is designed to meet common industry expectations for reliability, serviceability, and compatibility with standard tooling interfaces in dental-lathe ecosystems. This combination of compact footprint, robust enclosure, and accessible sourcing supports measurable efficiency gains and predictable maintenance budgets across small to mid-size labs.
