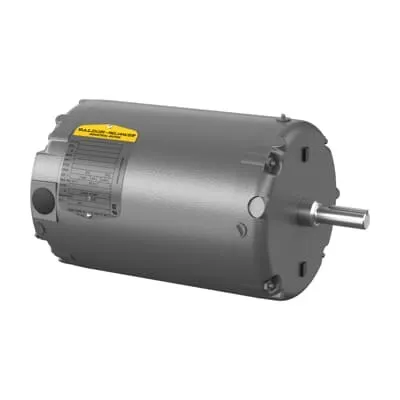

ABB 7BM3539-TP Condensor Fan - 0.5 HP/60 Hz
Part Number: 7BM3539-TP
Quick Summary
ABB 7BM3539-TP condenser fan provides reliable cooling for compact condensers used in HVAC and industrial refrigeration. Engineers often battle suboptimal airflow, energy waste, and integration challenges in tight equipment spaces. This model carries CSA and UR certifications, RoHS compliance, and a NEMA design B reference, offering safe operation across international deployments. With a 3-phase motor, 56Z frame, TEAO/TENV enclosure, and a 0.5 HP rating, it supports seamless replacement and inventory planning, delivering consistent performance and lower maintenance costs for mid-size cooling systems.
Product Information
Extended Description
7BM3539-TP ABB: Condensor Fan 0.5 Hp 208 V (M3539-TP)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.5 AIR OVERHP,1170RPM,3PH,60HZ,56Z,
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6205, Ball
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
M3539-TP
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015100
Design
B
Dimension Diagram
35LYE4820: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TENV
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
M3539-TP
Gross Volume
2110.969 inÂł
Gross Weight
29 lb
Horsepower Rating UL/CSA
0.500 Hp
IC Class
TEAO
IDEA Granular Category Code (IGCC)
1318 >> Heating and cooling system motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
.5 AIR OVERHP,1170RPM,3PH,60HZ,56Z,3516M
Lubrication
For life
Made To Order
No
Medium Description
Condensor Fan, 0.5 HP, 1000 RPM, Frame Size 56Z, Standard Mounting, 3 Phase, TENV Enclosure, 190/380 V, 50 Hz (M3539-TP)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
56Z
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
6P
Number of Poles (High)
6
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
0.5 Hp
Power Factor
55 %
Product Name
Condensor Fan
Product Net Depth / Length
16.5 in
Product Net Height
11.125 in
Product Net Weight
29 lb
Product Net Width
11.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
2.6 A | 1.3 A
Rated Efficiency
70 %
Rated Speed
1140 r/min
Replaced Product ID (OLD)
7B35E4820G348G1
RoHS Information
RoHS Compliant
Selling Unit of Measure
piece
Service Factor
1.25
Service Factor Percentage
1.25 %
Shaft Diameter
0.63 in
Short Description
0.5 HP, 1000 RPM, Frame Size 56Z, Standard, 3 PH, TENV, 190/380 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1200 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101105
Voltage Code
L
Voltage Rating
208 V | 230 V | 460 V
Feature → Business Impact → Application: The 0.5 HP condenser fan is designed for 3-phase operation at 208 V, 230 V, or 460 V with a 60 Hz frequency, delivering predictable airflow across condenser banks while ensuring investment protection through a standard 56Z frame. This enables reliable cooling performance in HVAC units and chillers, reducing temperature excursions and associated energy spikes in commercial refrigeration. Feature → Business Impact → Application: The 56Z frame with horizontal mounting and a footless base simplifies retrofit projects, cutting installation time and spare Parts inventory. In practice, technicians achieve faster replacements in service events, minimizing downtime on packaged air conditioning systems and industrial cooling equipment. Feature → Business Impact → Application: TEAO/TENV enclosure and NEMA design B provide robust protection in hot environments, lowering contamination risk and extending motor life for outdoor condensers. This translates to lower maintenance costs and higher uptime in remote or harsh settings, such as food processing facilities or data center cooling. Feature → Business Impact → Application: A service factor of 1.25 and lubrication listed as “For life” support long-term reliability, reducing scheduled maintenance while maintaining steady condenser airflow. This is especially valuable for year-round operation in regions with wide ambient temperature swings. Feature → Business Impact → Application: The motor’s efficiency (~70%) and power factor (~0.55) offer measurable energy savings in continuous run applications, contributing to lower total cost of ownership for mid-sized cooling systems. Feature → Business Impact → Application: Certifications (CSA/UR) and RoHS compliance simplify procurement and regulatory alignment for North American and international projects, enabling easier cross-site deployment and supplier qualification for large-scale HVAC projects.
