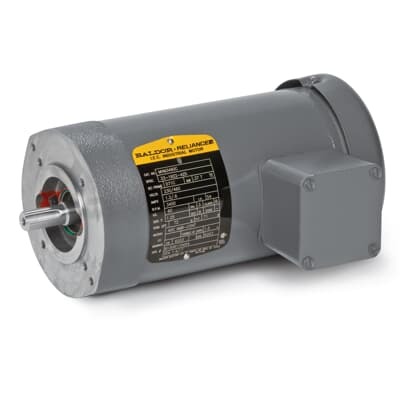

ABB 7BMVM3461C LV Baldor IEC Motors - TEFC 0.5 HP
Part Number: 7BMVM3461C
Quick Summary
ABB 7BMVM3461C LV Baldor IEC Motors deliver reliable 0.5 HP performance for continuous 3-phase operation in conveyors, pumps, and small fans. This motor is designed for C-face mounting with a TEFC enclosure, optimizing uptime in harsh industrial environments. Built with regreasable bearings and a robust steel frame (Frame 71), it provides long service life with minimal maintenance. Originating in the United States, it ships with zero lead time and broad warehouse coverage to support fast project execution. The motor is IEC-compliant and designed for ambient temperatures up to 40 °C at altitudes up to 1000 m, ensuring predictable performance across common manufacturing settings. This combination delivers both reliability and value for mid-range automation tasks.
Product Information
Extended Description
7BMVM3461C ABB: LV Baldor IEC Motors 0.50 Hp 208 V (MVM3461C)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.37KW,1725RPM,3PH,60HZ,D71C,3320M,T
Invoice Description
.37KW,1725RPM,3PH,60HZ,D71C,3320M,TEFC
Product Name
LV Baldor IEC Motors
Product Type
Undefined
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Selling Unit of Measure
piece
Country of Origin
United States (US)
Customs Tariff Number
85015100
Stocked At (Warehouses)
Singapore, Singapore | China | Alabama, United States | Alaska, United States
Medium Description
C-Face Mounting, 3 Phase, TEFC Enclosure, (MVM3461C)
Short Description
C-Face, 3 PH, TEFC,
Electrical Data
Temperature Class Default
--
Frequency (f)
60 Hz
Output Power
0.50 Hp
Altitude
1000 m
Ambient Temperature
40 °C
IC Class
TEFC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
Insulation Class
B
Direction of Rotation
Both sides
Number of Poles (High)
4
Two Speed Motor
No
Type of Duty
Continuous
Voltage Code
X-Other
Frame Material
Steel
Frame Size
71
Bearing
6203, Ball
Bearing NDE
6203
Lubrication
Regreasable
IM Class
F2
Product Net Depth / Length
13.813 in
Product Net Height
9.375 in
Product Net Width
10.813 in
Product Net Weight
22 lb
Gross Weight
22 lb
Standards
IEC
UNSPSC
26101112
Feature: TEFC enclosure and C-face mounting. Business Impact: Provides protection against dust and debris while simplifying installation and alignment in tight spaces. Application: Ideal for conveyors, pumps, and fans in manufacturing lines. Feature: 0.50 HP (0.37 kW), 60 Hz, 3-phase, 208 V. Business Impact: Delivers consistent torque and reliable starting characteristics for standard industrial loads, reducing startup shocks and energy waste. Application: Suitable for light-duty drives on packaging and material handling equipment. Feature: Frame 71, 4 poles, 1725 RPM, 60 Hz. Business Impact: Balanced speed and torque for high-load applications with efficient speed matching to process cycles. Application: Suitable for small centrifuges, blowers, and auxiliary motors. Feature: TEFC and insulation class B. Business Impact: Enhanced enclosure integrity and insulation durability in moderate ambient conditions, improving uptime and reducing fault rates. Application: Harsh workshop environments and exposed assemblies. Feature: Regreasable lubrication, Ball bearing 6203. Business Impact: Lower maintenance costs through scheduled lubrication and extended bearing life, lowering total cost of ownership. Application: Long-running conveyors and fans with periodic maintenance programs. Feature: United States origin, 0-day lead time, multiple stocked warehouses. Business Impact: Improves supply chain responsiveness and project planning with fast delivery. Application: Production lines requiring quick replacement and spare part readiness. Feature: Standards IEC, 3-phase continuous duty. Business Impact: Ensures compatibility with global electrical standards and robust operation under continuous duty cycles. Application: Global installations and OEM integrations that demand IEC-compliant components.
