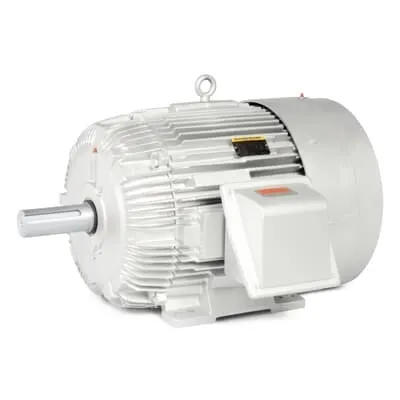

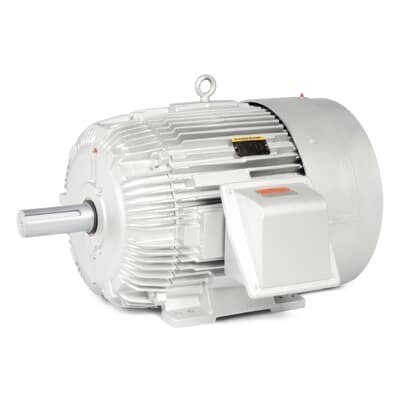

ABB 7BOF2332T Motors - TEFC 256T Frame, 10HP IP54
Part Number: 7BOF2332T
Quick Summary
ABB 7BOF2332T motors deliver dependable heavy-duty performance for industrial drives and processes. This 10HP, 1125 r/min, 3-phase, 60 Hz LV motor is designed for rugged environments with a TEFC enclosure and IP54 protection. The unit is UL/CSA certified and meets NEMA MG-1 1993 standards, supporting safe operation in US-based manufacturing and global facilities. For operators facing heat, altitude, and maintenance constraints, this motor offers low-maintenance lubrication (regreasable bearings) and straightforward direct-online starting. Its rigid 256T frame, 6-pole design, and solid service factor of 1.15 deliver consistent torque and reliability across conveyors, pumps, fans, and general machinery, reducing downtime and optimizing uptime, energy use, and total cost of ownership.
Product Information
Extended Description
7BOF2332T ABB: 796 V
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Inactive
Quote Only
No
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Inactive
Quote Only
No
Warranty Return
Product under warranty must be returned
ABB Type Designation
10HP,1125RPM,3PH,60HZ,256T,0942M,TE
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6309
Bearing NDE
6208
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
D
Direction of Rotation
Both sides
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
256
Frequency (f)
60 Hz
Global Commercial Alias
OF2332T
Gross Volume
0.25 in³
Gross Weight
288 lb
Horsepower Rating UL/CSA
10.000 Hp
IC Class
TEFC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F2
IP Class
IP54
Insulation Class
ICLF
Invoice Description
10HP,1125RPM,3PH,60HZ,256T,0942M,TEFC,F2
Lubrication
Regreasable
Made To Order
No
Minimum Order Quantity
1 piece
Motor Base Type
Rigid
Motor Frame Size
256T
Number of Phases
3
Number of Poles
6P
Number of Speeds
Single Speed
Order Multiple
1 piece
Power Factor
72 %
Product Name
LV Severe Duty Motors
Product Net Depth / Length
0.5 in
Product Net Height
1 in
Product Net Weight
288 lb
Product Net Width
0.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
31 A | 15.5 A | 9 A
Rated Efficiency
84.0 %
Rated Speed
1,125 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Standards
NEMA_MG_-_1_1993
Starting of Motor
Direct Online
Stocked At (Warehouses)
China
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
S1
UNSPSC
26101115
Voltage Code
H
Voltage Rating
796 V | 460 V | 230 V
Feature → Business Impact → Application: TEFC IP54 enclosure protects internal components from dust and moisture, reducing maintenance cycles and extending motor life in harsh manufacturing environments. This translates to lower downtime and predictable performance on conveyors and pumps in dusty plants or outdoor facilities. Feature → Business Impact → Application: 256T frame with 6P design yields robust torque and compact installation space, enabling easier retrofits and fits in tight machine enclosures across packaging lines and material-handling systems. Feature → Business Impact → Application: Direct Online starting minimizes control hardware and installation costs while delivering immediate torque for inertia-heavy loads like fans and conveyors, improving line uptime and operator confidence during changeovers. Feature → Business Impact → Application: Regreasable bearings and a rugged 6309/6208 bearing arrangement support longer service intervals, reducing maintenance frequency and bearing replacement costs in high-temperature environments up to 40 °C and altitudes up to 1000 m. Feature → Business Impact → Application: Service Factor 1.15 provides torque reserve for start-up surges and transient loads, improving reliability on mixed loads such as pumps and conveyors at varying belt tensions or load skews. Feature → Business Impact → Application: UL/CSA certification and NEMA MG-1 1993 compliance simplify procurement and regulatory acceptance for U.S. and international projects, easing audits and supplier qualification for automotive, water treatment, and material handling sectors.
