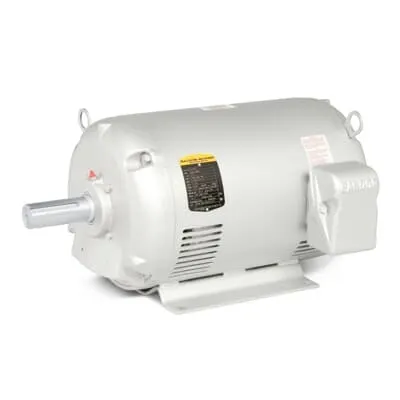

ABB 7BOF3305T Motors - OPEN Frame 215T, CSA UR Certified
Part Number: 7BOF3305T
Quick Summary
ABB 7BOF3305T motors deliver reliable, efficient drive solutions for heavy-duty industrial applications such as conveyors and pumps. Manufacturers often battle compatibility gaps, open-frame exposure to harsh environments, and mounting constraints that drive maintenance costs. The model is CSA and UR certified, with an OPEN enclosure and a 215T frame designed for rugged, 3-phase, 60 Hz operation. Its 5HP rating and practical footprint help reduce downtime and simplify procurement in modern plants. By aligning with standard 60 Hz power, UL/CSA compliance, and open-frame accessibility, this motor supports predictable performance and lower total cost of ownership.
Product Information
Extended Description
7BOF3305T ABB: 796 V (OF3305T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Inactive
Quote Only
No
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Inactive
Quote Only
No
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Inactive
Quote Only
No
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Inactive
Quote Only
No
Warranty Return
Product under warranty must be returned
ABB Type Designation
5HP,1120RPM,3PH,60HZ,215T,3732M,OPE
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6307
Bearing NDE
6307
Brand / Label
Baldor-Reliance
Catalog Number
OF3305T
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
D
Direction of Rotation
Both sides
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
OPEN
Frame Material
Steel
Frame Size
215
Frequency (f)
60 Hz
Global Commercial Alias
OF3305T
Gross Volume
6260.63 inÂł
Gross Weight
136 lb
Horsepower Rating UL/CSA
5.000 Hp
IC Class
OPEN
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F2
IP Class
IP24
Insulation Class
ICLB
Invoice Description
5HP,1120RPM,3PH,60HZ,215T,3732M,OPEN,F2
Lubrication
Regreasable
Made To Order
No
Medium Description
Frame Size 215T, 3 Phase, OPEN Enclosure, (OF3305T)
Minimum Order Quantity
1 piece
Motor Base Type
Rigid
Motor Frame Size
215T
NEMA Design Code
D
Number of Phases
3
Number of Poles
6P
Number of Speeds
Single Speed
Order Multiple
1 piece
Power Factor
70 %
Product Name
LV Severe Duty Motors
Product Net Depth / Length
26.5 in
Product Net Height
17.5 in
Product Net Weight
136 lb
Product Net Width
13.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
16.2 A | 8.1 A | 4.7 A
Rated Efficiency
82.5 %
Rated Speed
1,120 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Short Description
Frame Size 215T, 3 PH, OPEN,
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alaska, United States
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
S1
UNSPSC
26101115
Voltage Code
J
Voltage Rating
796 V | 460 V | 230 V
Open-frame 5HP, 1,120 r/min, 60 Hz, 3-phase operation enables straightforward integration into existing line layouts and cooling paths, reducing commissioning time and fitment risk in new projects. This design directly improves uptime by simplifying maintenance access and routine service, while delivering reliable torque in conveyors and pumps. The 215T frame with steel construction and a rigid base provides robust mounting, easing retrofits and reducing vibration concerns in tight spaces or busy plant floors. With regreasable bearings (6307) and a direct-on-line starting capability, the motor offers long service life and fast startup, cutting startup transients and energy spikes in demanding applications. The open enclosure, rated IP24, supports cost-effective cooling in ventilated areas, and the CSA/UR certifications reassure compliance for industrial environments. Stock availability across multiple warehouses and a zero-day lead time further minimize downtime and expedite procurement for maintenance projects.
