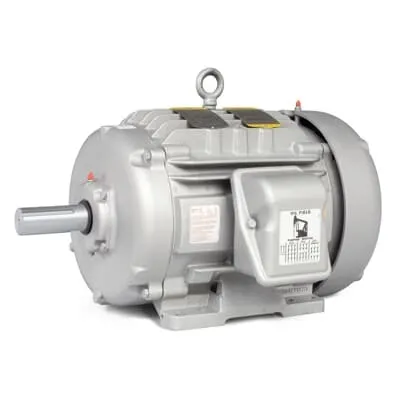

ABB 7BOF4111T Motor - TEFC Frame 324T, 3PH CSA/UR
Part Number: 7BOF4111T
Quick Summary
ABB 7BOF4111T is a 25 HP TEFC motor designed for heavy-duty industrial applications such as pumps and conveyors. Engineers often confront downtime, rising maintenance costs, and integration challenges when upgrading drives in existing lines. This motor carries CSA/UR certification, IP55 protection, and a TEFC enclosure aligned with NEMA standards to withstand dusty and damp plant environments. With 60 Hz operation and voltage flexibility across 796 V, 460 V, and 230 V, it delivers reliable performance while maximizing energy efficiency and service life. The result is a straightforward, cost-effective upgrade that supports scalability and improved total cost of ownership for industrial facilities.
Product Information
Extended Description
7BOF4111T ABB: 796 V (OF4111T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Inactive
Quote Only
No
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Inactive
Quote Only
No
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Inactive
Quote Only
No
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Inactive
Quote Only
No
Warranty Return
Product under warranty must be returned
ABB Type Designation
25HP,1125RPM,3PH,60HZ,324T,1250M,TE
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6312
Bearing NDE
6311
Brand / Label
Baldor-Reliance
Catalog Number
OF4111T
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Design
D
Direction of Rotation
Both sides
Efficiency Level
Not Regulated / Exempt | Undefined Efficiency
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
324
Frequency (f)
60 Hz
Global Commercial Alias
OF4111T
Gross Volume
18500.965 in³
Gross Weight
575 lb
Horsepower Rating UL/CSA
25.000 Hp
IC Class
TEFC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F2
IP Class
IP55
Insulation Class
ICLF
Invoice Description
25HP,1125RPM,3PH,60HZ,324T,1250M,TEFC,F2
Lubrication
Regreasable
Made To Order
No
Medium Description
Frame Size 324T, 3 Phase, TEFC Enclosure, (OF4111T)
Minimum Order Quantity
1 piece
Motor Base Type
Rigid
Motor Frame Size
324T
NEMA Design Code
D
Number of Phases
3
Number of Poles
6P
Number of Speeds
Single Speed
Order Multiple
1 piece
Power Factor
81 %
Product Name
LV Severe Duty Motors
Product Net Depth / Length
33.25 in
Product Net Height
21.5 in
Product Net Weight
575 lb
Product Net Width
25.88 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
68 A | 34 A | 19 A
Rated Efficiency
87.5 %
Rated Speed
1,125 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Short Description
Frame Size 324T, 3 PH, TEFC,
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
S1
UNSPSC
26101115
Voltage Code
G
Voltage Rating
796 V | 460 V | 230 V
Feature: TEFC enclosure provides rugged protection in dusty or damp environments. Business Impact: Reduces contamination risk and enables longer intervals between inspections, lowering maintenance labor and downtime. Application: Ideal for conveyors and pumps in harsh manufacturing floors. Feature: IP55 protection and 324T iron frame design. Business Impact: Enhances reliability under vibration and ingress-prone conditions, extending motor life and reducing repair costs. Application: Suitable for heavy-duty process lines and continuous operation scenarios. Feature: 60 Hz, three-phase supply with versatile voltage (796 V / 460 V / 230 V). Business Impact: Simplifies site integration and minimizes wiring changes or transformers, speeding up installation. Application: Fits existing power systems in multi-voltage facilities. Feature: Regreasable bearings and service factor 1.15. Business Impact: Improves uptime with easier maintenance planning and capability to handle small overloads without performance loss. Application: Demands of process equipment like mixers or fans. Feature: Direct On Line starting and 25 HP rating with 324T frame. Business Impact: Reduces start-up complexity and provides high-start torque for load-dependent starts, enhancing startup reliability. Application: Typical for line-start motors in material handling and pumping systems. Feature: 87.5% efficiency and robust NEMA-aligned design. Business Impact: Lowers energy consumption and operating costs while preserving regulatory compliance. Application: Continuous operation across manufacturing cells requiring dependable performance with long service life.
