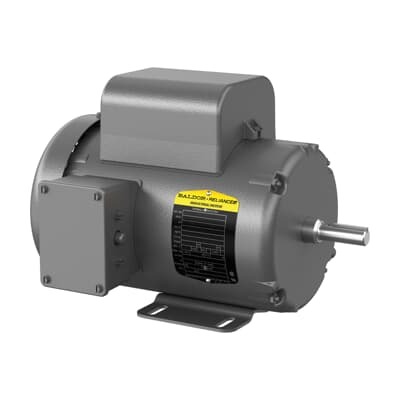

ABB 7BPL3515M Pump Motor - 2HP, 115V, TEFC CSA/UR
Part Number: 7BPL3515M
Quick Summary
ABB 7BPL3515M pump motor delivers 2 HP of robust, 115 V single-phase power for pressure washers and wash-down systems. This compact motor is designed to minimize downtime and maximize uptime in demanding environments. It supports standard 56 frame, TEFC enclosure, and 60 Hz operation, making it a ready-to-install solution for service fleets and facilities with tight space constraints. This design aligns with CSA | UR certifications, RoHS compliance, and NEMA design standards, ensuring regulatory adherence and long-term reliability. With easy replacement in maintenance programs and compatible mounting, it delivers business value through lower energy waste and streamlined procurement. Ideal for industrial cleaning, food processing, and process water applications.
Product Information
Extended Description
7BPL3515M ABB: Pump Motor 2 Hp 115 V (PL3515M)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
2HP,3450RPM,1PH,60HZ,56,3524LC,TEFC
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6205, Ball
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
PL3515M
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
L
Dimension Diagram
35LYT962: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
PL3515M
Gross Volume
2110.969 inÂł
Gross Weight
42 lb
Horsepower Rating UL/CSA
2.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1324 >> Pressure washer motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
2HP,3450RPM,1PH,60HZ,56,3524LC,TEFC,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
Pressure Washer, 2 HP, 3600 RPM, Frame Size 56, Standard Mounting, 1 Phase, TEFC Enclosure, 115/230 V, 60 Hz (PL3515M)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
L
Number of Phases
1
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
2 Hp
Power Factor
95 %
Product Name
Pressure Washer
Product Net Depth / Length
16.5 in
Product Net Height
11.125 in
Product Net Weight
42 lb
Product Net Width
11.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
17.6 A | 8.8 A
Rated Efficiency
77 %
Rated Speed
3450 r/min
Replaced Product ID (OLD)
7B35T962Y691
RoHS Information
RoHS Compliant
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.63 in
Short Description
2 HP, 3600 RPM, Frame Size 56, Standard, 1 PH, TEFC, 115/230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101111
Voltage Code
F
Voltage Rating
115 V | 230 V
Feature: 2 HP, 115 V single-phase design with a 56-frame TEFC enclosure. Business Impact: Delivers strong starting torque, reliable operation, and straightforward installation on standard 115 V power rails. Application: Pressure washers, wash-down stations, and other compact cleaning systems. Feature: Regreasable lubrication and robust 60 Hz performance. Business Impact: Extends bearing life and reduces maintenance intervals, lowering total cost of ownership. Application: Harsh environments and continuous-duty cleaning lines where uptime is critical. Feature: Foot-mounted, horizontal mounting with a compact 16.5 in length profile. Business Impact: Simplifies retrofit and replacement in crowded machinery footprints, enabling rapid integration with existing bases. Application: Retrofit projects and OEM line upgrades in industrial facilities. Feature: CSA | UR certification, RoHS compliance, and NEMA design standards. Business Impact: Reduces regulatory risk and accelerates approvals for regulated industries. Application: Food processing, water treatment, and other compliance-driven sectors. Feature: Stocked at multiple warehouses with 0-day lead time. Business Impact: Improves spare-part availability and minimizes downtime during maintenance. Application: Fleet maintenance, service contracts, and just-in-time replacement programs. Feature: 1-phase, 115/230 V voltage rating with TEFC enclosure and 2 HP output. Business Impact: Flexible power sourcing and reliable operation across common industrial voltages, lowering wiring complexity. Application: Field installations and OEM assemblies in pressure washer and cleaning equipment.
Get a Quick Quote for a ABB 7BPL3515M
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BPL3515M?
Enquire Now
FAQs
Yes. The 56-frame size is designed for foot-mounted, horizontal mounting, and the 115 V single-phase configuration aligns with common plant power rails. Installers will appreciate the TEFC enclosure for protection in wash-down and dusty environments, plus the shaft diameter of 0.63 in which matches typical coupling specs.
This motor delivers 2 HP at 60 Hz in a 115/230 V, 1-phase configuration. It features a TEFC (Totally Enclosed Fan C cooled) enclosure, a 56 frame, and a rated speed of 3450 r/min with 3600 r/min synchronous speed. Lubrication is regreasable, supporting longer service life with lower maintenance.
Yes. The product is explicitly described as a Pressure Washer motor with a TEFC enclosure, 2 HP output, and 60 Hz operation. Its rugged enclosure and airflow design cater to outdoor and semi-indoor cleaning systems, delivering reliable performance under continuous duty and frequent start/stop cycles.
The motor carries CSA and UR certifications, with RoHS compliance and adherence to NEMA design standards. These factors help ensure regulatory acceptance across regulated industries and simplify supplier qualifications for end customers.
Lead time is listed as 0 day, and the product is stocked at multiple warehouses (US, GB, SG, CN). This enables rapid fulfillment and shorter downtime for critical maintenance or urgent replacements, improving overall repair time and fleet readiness.
