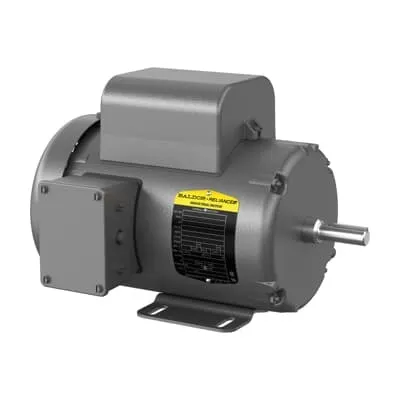

ABB 7BPL3519M Pump Motor - CSA UR Certified
Part Number: 7BPL3519M
Quick Summary
ABB 7BPL3519M Pump Motor provides reliable 3 HP operation for pressure washers and industrial cleaning equipment. This single-phase 230 V motor is built for demanding environments where uptime matters. Many buyers face downtime and compatibility challenges when upgrading to compact, high-performance motors in a 56-frame footprint. The 7BPL3519M addresses these concerns with proven Baldor-Reliance design, including CSA and UR certifications, RoHS compliance, and a NEMA Design L configuration for continuous duty. With a TEFC enclosure and foot-mounted, horizontal mounting, it integrates quickly into existing systems and minimizes wiring complexity. Expect improved efficiency, straightforward maintenance, and a reduced total cost of ownership in service-focused industrial facilities.
Product Information
Extended Description
7BPL3519M ABB: Pump Motor 3 Hp 230 V (PL3519M)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
3HP,3450RPM,1PH,60HZ,56,3532LC,TEFC
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6205, Ball
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
PL3519M
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
L
Dimension Diagram
35LYT949: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | Not Regulated / Exempt
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
PL3519M
Gross Volume
2110.969 inÂł
Gross Weight
50 lb
Horsepower Rating UL/CSA
3.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1324 >> Pressure washer motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
3HP,3450RPM,1PH,60HZ,56,3532LC,TEFC,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
Pressure Washer, 3 HP, 3600 RPM, Frame Size 56, Standard Mounting, 1 Phase, TEFC Enclosure, 230 V, 60 Hz (PL3519M)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
L
Number of Phases
1
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
3 Hp
Power Factor
95 %
Product Name
Pressure Washer
Product Net Depth / Length
16.5 in
Product Net Height
11.125 in
Product Net Weight
50 lb
Product Net Width
11.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
12.5 A
Rated Efficiency
85.50 %
Rated Speed
3450 r/min
Replaced Product ID (OLD)
7B35T949Y870G1
RoHS Information
RoHS Compliant
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.63 in
Short Description
3 HP, 3600 RPM, Frame Size 56, Standard, 1 PH, TEFC, 230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101111
Voltage Code
G
Voltage Rating
230 V
Feature → Business Impact → Application: The 3 HP, 230 V, 1-phase design delivers efficient, compact power for pump and pressure washer applications, reducing electric draw and heat generation while maintaining strong torque. This translates to lower energy costs and improved startup performance in demanding environments such as wash stations and conveyors. Feature → Business Impact → Application: TEFC enclosure with frame size 56 provides robust protection against dust, water splash, and harsh ambient conditions, extending motor life and reducing maintenance cycles. Application-wise, this suits outdoor or humid shop floors where dependable enclosure integrity matters for continuous operation. Feature → Business Impact → Application: 3600 r/min synchronous speed for a 2-pole motor delivers consistent torque and predictable duty cycles, enabling reliable operation in continuous-duty pumps and band saws, and simplifying drive system design. Feature → Business Impact → Application: Regreasable bearings (6205) and an insulation class of F improve longevity and lubrication longevity, lowering MTBF and maintenance costs in high-use environments such as pressure washer fleets. Feature → Business Impact → Application: CSA | UR safety certifications, RoHS compliance, and NEMA Design Code L support regulatory compliance and supplier confidence, while 0-day lead time stock and multiple warehouse availability minimize downtime during plant upgrades. Feature → Business Impact → Application: 56 frame, foot-mounted, horizontal mounting simplifies installation and retrofit projects, enabling quick replacement in existing Baldor-Reliance compatible baselines and reducing installation labor and downtime.
