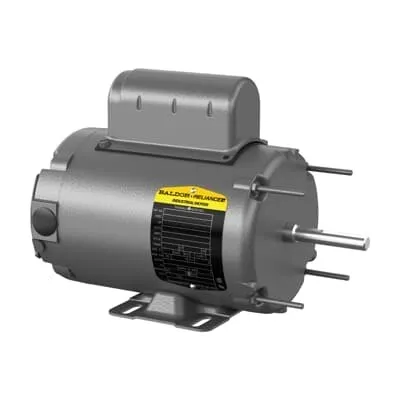

ABB PSC3524A Direct Drive Fan - 0.5 HP, 60 Hz - NEMA TEAO
Part Number: 7BPSC3524A
Quick Summary
PSC3524A Direct Drive Fan motor delivers compact cooling for industrial equipment and control panels. This one‑phase, 0.5 HP motor simplifies installation by eliminating belts and pulleys, reducing maintenance and downtime in harsh plant environments. The design leverages a TEAO enclosure and a 48Z frame for straightforward integration into standard mounting footprints, with a 1-phase, 60 Hz supply at 115/230 V. It carries CSA | UR certification and standard US origin, reinforcing compliance for regulated facilities and end-users. From food processing to general automation cooling, this motor delivers reliable duty under continuous operation. With stock at multiple warehouses and zero lead time, it supports rapid deployment and predictable total cost of ownership for OEMs and service teams.
Product Information
Extended Description
7BPSC3524A ABB: Farm Duty Motor 0.5 Hp 115 V (PSC3524A)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.5HP,1625RPM,1PH,60HZ,48Z,3418C,TEA
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6203, Ball
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
PSC3524A
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85013100
Dimension Diagram
34LYG144: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TEAO
Frame Material
Steel
Frame Size
48
Frequency (f)
60 Hz
Global Commercial Alias
PSC3524A
Gross Volume
1400.25 inÂł
Gross Weight
24 lb
Horsepower Rating UL/CSA
0.500 Hp
IC Class
TEAO
IDEA Granular Category Code (IGCC)
1318 >> Heating and cooling system motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
B
Invoice Description
.5HP,1625RPM,1PH,60HZ,48Z,3418C,TEAO,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
Direct Drive Fan, 0.5 HP, 1800 RPM, Frame Size 48Z, Standard Mounting, 1 Phase, TEAO Enclosure, 115/230 V, 60 Hz (PSC3524A)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
48Z
Mounting Orientation
Horizontal
Mounting Position
F1
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
0.5 Hp
Power Factor
81 %
Product Name
Direct Drive Fan
Product Net Depth / Length
13.813 in
Product Net Height
9.375 in
Product Net Weight
24 lb
Product Net Width
10.813 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
6 A | 3 A
Rated Efficiency
65 %
Rated Speed
1625 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
0.5 in
Short Description
0.5 HP, 1800 RPM, Frame Size 48Z, Standard, 1 PH, TEAO, 115/230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101105
Voltage Code
X-Other
Voltage Rating
115 V | 230 V
Feature → Business Impact → Application. PSC3524A employs a TEAO enclosure for simple installation and reduced cooling requirements, enabling faster integration into control panels and compact equipment. This translates to lower assembly time and improved serviceability on the line, especially in automation cabinets and farm-duty gear. The 0.5 HP, 1-phase, 115/230 V, 60 Hz capability supports universal utility connections, minimizing installation complexity for OEMs seeking a versatile cooling solution in manufacturing and packaging lines. The 48Z frame and foot-mounted base offer straightforward mounting, letting installers reuse existing footprints and minimize retrofits in machine retrofits and conveyor systems. Regreasable bearings and the 6203 ball bearing construction enhance longevity, reducing spare parts and maintenance costs in continuous operation environments. Stocked at multiple warehouses with 0 day lead time accelerates procurement, lowering total cost of ownership for service providers and end-users. Compatible with direct-drive fan applications where space is at a premium, the PSC3524A supports efficient heat removal in compact enclosures and automation panels.
